Admissible Range of Proportional Gain in Stabilizing PID Region

Yu Dong

doi:10.4028/www.scientific.net/AMM.530-531.1068

Paper Titles

The Application of Artificial Intelligence Technology in Electrical Automation Control
p.1049

The Application of Game Theory in RoboCup Soccer Game
p.1053

Path Planning of Bionic Robot Fish Based on Genetic Algorithm
p.1058

Obstacle Avoidance Path Planning for Harvesting Robot Manipulator Based on MAKLINK Graph and Improved Ant Colony Algorithm
p.1063

Admissible Range of Proportional Gain in Stabilizing PID Region
p.1068

A Study on the Implementation of Home Wellness Robot Self-Localization Using RSSI and Trilateration
p.1078

Converter Gas Recycle System Based on PLC
p.1082

Design of Controlled 16-Bit PWM Signal Based on C8051F020
p.1089

Fly-Back Mode Constant Current LED Driver
p.1093

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 530-531Admissible Range of Proportional Gain in...

Admissible Range of Proportional Gain in Stabilizing PID Region

Abstract:

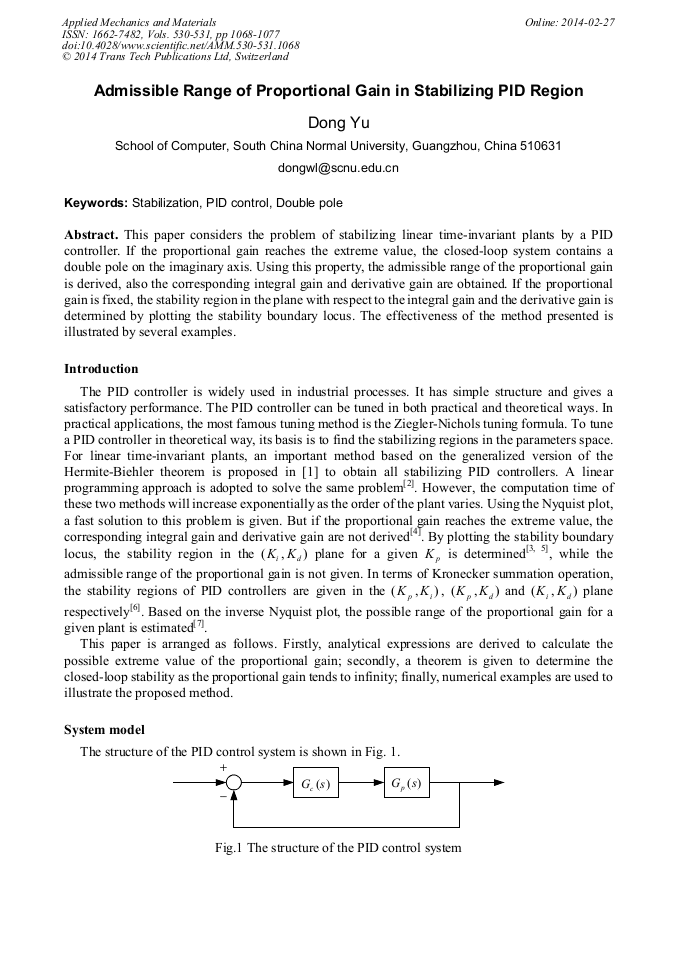

This paper considers the problem of stabilizing linear time-invariant plants by a PID controller. If the proportional gain reaches the extreme value, the closed-loop system contains a double pole on the imaginary axis. Using this property, the admissible range of the proportional gain is derived, also the corresponding integral gain and derivative gain are obtained. If the proportional gain is fixed, the stability region in the plane with respect to the integral gain and the derivative gain is determined by plotting the stability boundary locus. The effectiveness of the method presented is illustrated by several examples.
