The Reliability Analysis of Wheel Groove Milling Machine's Column Based on Probability Finite Element Method

Abstract:

Taking the column of the wheel groove milling machine as the research object, the randomness of the structure design parameter is simulated with the PDS of the ANSYS procedure, by taking the column height, load and elastic modulus as input random variables. The reliability analysis for the column deformation has been done with the Monte Carlo method. The results showed that the column reliability is 100% under the sample for 1000 times, and the number of simulation meets accuracy requirements. The evaluation of the probabilistic sensitivities showed that: the elastic modulus is the most important factor affecting the column reliability, and the reliability of column can be improved by decreasing the dispersion of the property parameters of the material.

You might also be interested in these eBooks

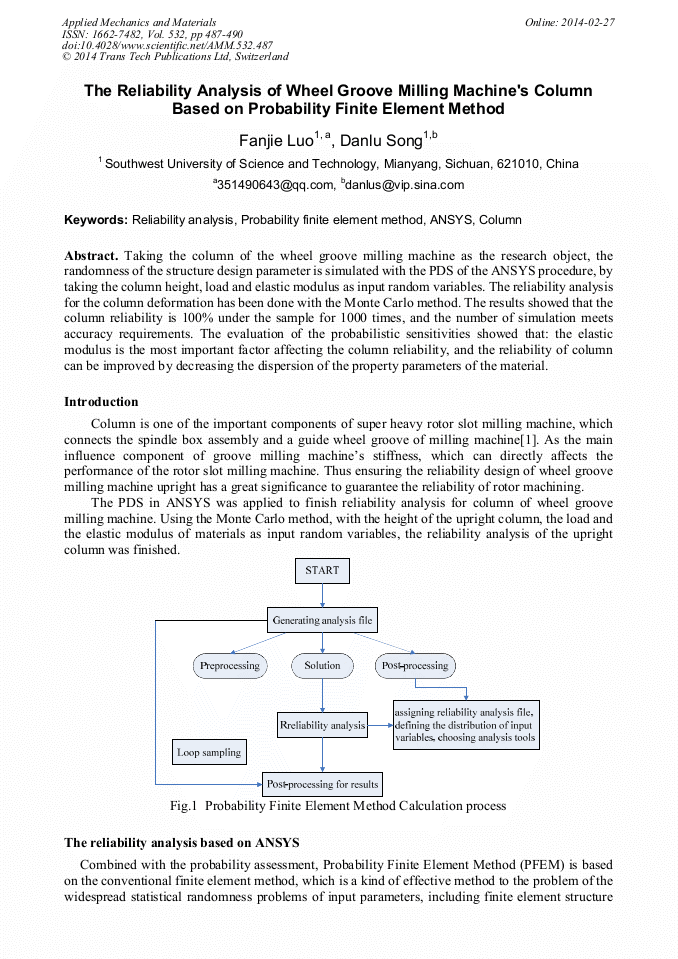

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 532)

Pages:

487-490

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.532.487

Citation:

Cite this paper

Online since:

February 2014

Authors:

Fan Jie Luo*, Dan Lu Song

Keywords:

ANSYS, Column, Probability Finite Element Method, Reliability Analysis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Umbrello D. Finite element simulation of conventional and high speed machining of Ti6Al4V alloy[J]. Journal of M aterials. Processing Technology, 2008, 196(1~3): 79~87.

DOI: 10.1016/j.jmatprotec.2007.05.007

Google Scholar

[2] Bianchi G, Paolucci F. Towards virtual engineering in machine tools design [J]. CIRP Annals-M anufacturing Technology, 1996, 45(1): 619~621.

Google Scholar

[3] Kobayashi, Takashi, Asahina, et al. Deformation Characteristics of a Metal Hollow O-Ring [J]. American Society of Mechanical Engineers, Pressure Vessels and Piping Division (Publication) PVP. 1999, 382: 7~12.

Google Scholar

[4] Rocco C M Moreno J A. Fast Monte Carlo reliability evaluation using support vector machine[J]. Reliability Engineering ＆System Safety，2002，76( 3) : 237 ～ 243.

DOI: 10.1016/s0951-8320(02)00015-7

Google Scholar

[5] Z. Dong, D.O. Koval, J.E. Props Reliability of various industrial substations IEEE Trans Ind Appl, 40 (4) (2004), p.989–994.

DOI: 10.1109/tia.2004.830770

Google Scholar

[6] M. Vega, H.G. Sarmiento Algorithm to evaluate substation reliability with cut and path sets. IEEE Trans Ind Appl, 44 (6) (2008), p.1851–1858.

DOI: 10.1109/tia.2008.2006351

Google Scholar
