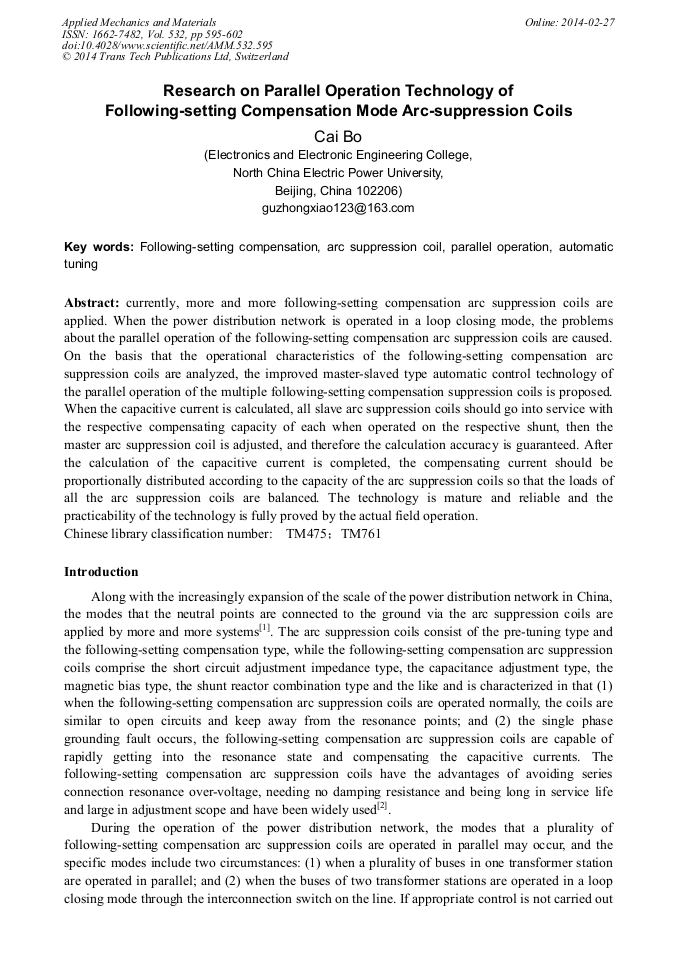

Research on Parallel Operation Technology of Following-Setting Compensation Mode Arc-Suppression Coils

Abstract:

currently, more and more following-setting compensation arc suppression coils are applied. When the power distribution network is operated in a loop closing mode, the problems about the parallel operation of the following-setting compensation arc suppression coils are caused. On the basis that the operational characteristics of the following-setting compensation arc suppression coils are analyzed, the improved master-slaved type automatic control technology of the parallel operation of the multiple following-setting compensation suppression coils is proposed. When the capacitive current is calculated, all slave arc suppression coils should go into service with the respective compensating capacity of each when operated on the respective shunt, then the master arc suppression coil is adjusted, and therefore the calculation accuracy is guaranteed. After the calculation of the capacitive current is completed, the compensating current should be proportionally distributed according to the capacity of the arc suppression coils so that the loads of all the arc suppression coils are balanced. The technology is mature and reliable and the practicability of the technology is fully proved by the actual field operation. Chinese library classification number: TM475;TM761

• Periodical: Applied Mechanics and Materials (Volume 532)
• Pages: 595-602
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.532.595
• Online since: February 2014
• Authors: Bo Cai
• Keywords: Arc Suppression Coil, Automatic Tuning, Following-Setting Compensation, Parallel Operation

References

[1] Yao Huan-nian, Cao Mei-yue. Resonance grounding of power system[M]. Beijing: China electric power press, (2000).

[2] Klaus Papp. Arc Suppression Coils for Neutral Grounding of Distribution Systems. Published by Sterling Publications International Ltd. Power Te chnology International, (1992).

[3] Chen Zhong-ren, Wu Wei-ning, Zhang Qing, et al. Parallel Operation Modes of Automatic Tuning Arc-suppression Coils[J]. Electric Power Automation Equipment. 2005, 25(7): 93-95.

[4] Fang Jing-hui, Zhao Fei, Zhou Hai-bing. A Synthetical Scheme for the Primary and Secondary Parallel Operation Mode of Arc-suppression Coil[J]. Power System Protection and Control. 2009, 37(21): 59-61.

[5] Xu Yu-qing, Chen Xiao-ke, Jiang Yi, et al. Optical control of parallel operation arc-extinction coils in35KVdistribution system[J]. Electric Power Automation Equipment. 2003, 23(3): 75-77.

[6] Chen Zhong-ren, Wu Wei-ning, Chen Jia-hong, et al. Study of Measuring and Tracing of Arc-suppression Coil with Automatic Tuning[J]. Relay. 2004, 32(18): 24-28.

[7] Zhu Shao-lin, Xie Yu-lin, Ye Li-xing. Effect of Automatic Tuning Mode Principle on Parallel Operation of Arc-Suppression Coil[J]. Proceedings of the CSU-EPSA. 2006, 18(1): 82-85.

[8] Li Si-ming, He Jing, Zhang Xi-jun, et al. Causing Analysis and Design Solution of System Voltage's Unbanlance When ARC-suppression Coil Goer Line[J]. Power System Protection and Control. 2008, 36(24): 124-128.

[9] GRIFFEL D, LEITLOFF V. A New Deal for Safety and Quality on MV Networks [J]. IEEE Trans. on Power Delivery, 1997, 12(4): 1 428- 1 433.

DOI: 10.1109/61.634156

[10] MAZON A J, ZAMORA I, ZABALA L, et al. First Resonant Neutral Grounding Implantation in Spanish Distribution System [C]/ IEEE Porto Power Tech. Conference, Portugal, 2001: 101- 107.

DOI: 10.1109/ptc.2001.964809
