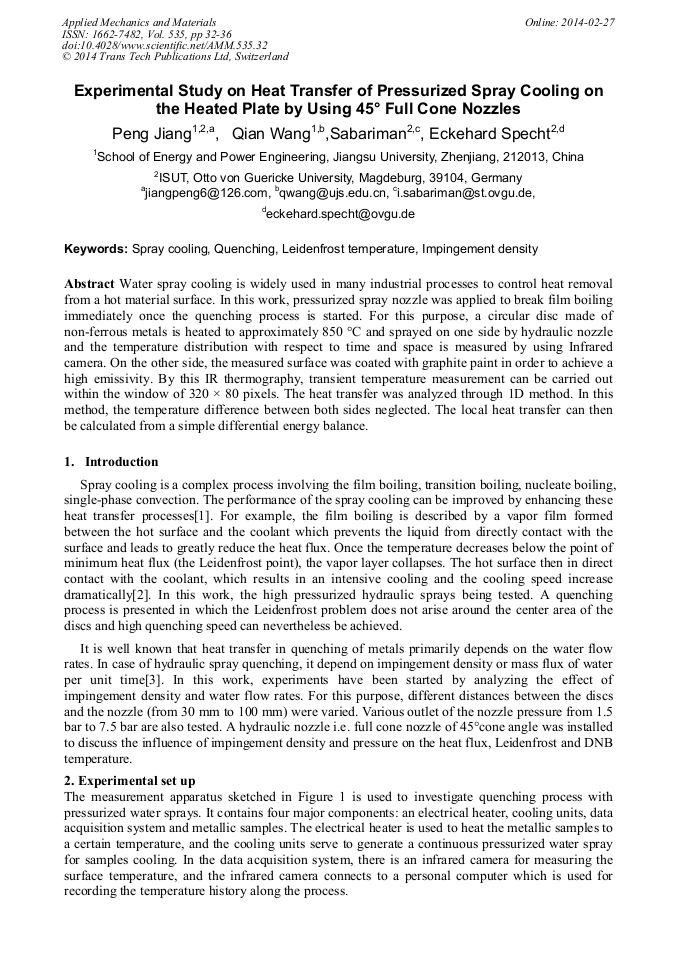

Experimental Study on Heat Transfer of Pressurized Spray Cooling on the Heated Plate by Using 45° Full Cone Nozzles

Abstract:

Water spray cooling is widely used in many industrial processes to control heat removal from a hot material surface. In this work, pressurized spray nozzle was applied to break film boiling immediately once the quenching process is started. For this purpose, a circular disc made of non-ferrous metals is heated to approximately 850 °C and sprayed on one side by hydraulic nozzle and the temperature distribution with respect to time and space is measured by using Infrared camera. On the other side, the measured surface was coated with graphite paint in order to achieve a high emissivity. By this IR thermography, transient temperature measurement can be carried out within the window of 320 × 80 pixels. The heat transfer was analyzed through 1D method. In this method, the temperature difference between both sides neglected. The local heat transfer can then be calculated from a simple differential energy balance.

You might also be interested in these eBooks

Energy Engineering and Environment Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 535)

Pages:

32-36

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.535.32

Citation:

Cite this paper

Online since:

February 2014

Authors:

Peng Jiang, Qian Wang, I. Sabariman, Eckehard Specht

Keywords:

Impingement Density, Leidenfrost Temperature, Quenching, Spray Cooling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] F. Puschmann and E. Specht, Transient measurement of heat transfer in metal quenching with atomized sprays, Experimental Thermal and Fluid Science, 28(6): pp.607-615, (2004).

DOI: 10.1016/j.expthermflusci.2003.09.004

Google Scholar

[2] J. Sengupta, B. Thomas and M. Wells, The use of water cooling during the continuous casting of steel and aluminum alloys, Metallurgical and Materials Transactions, 36(1): pp.187-204, (2005).

DOI: 10.1007/s11661-005-0151-y

Google Scholar

[3] H. M. Al-Ahmadi, and S. C. Yao, Spray cooling of high temperature metals using high mass flux industrial nozzles, Experimental Heat Transfer, 21(1): pp.38-54, (2008).

DOI: 10.1080/08916150701647827

Google Scholar

[4] J. Filipovic, F. Incropera, and R. Viskanta, Rewetting temperatures and velocity in a quenching experiment, Thermal Energy Generation, 8(4): pp.257-270, (1995).

DOI: 10.1080/08916159508946505

Google Scholar

[5] Abdalrahman, K.H.M., Influence of Water Quality and Kind of Metal in the Secondary Cooling Zone of Casting Process, PhD Thesis, Otto-von-Guericke-University Magdeburg: Magdeburg, pp.9-31, (2012).

DOI: 10.46720/f2021-adm-145

Google Scholar
