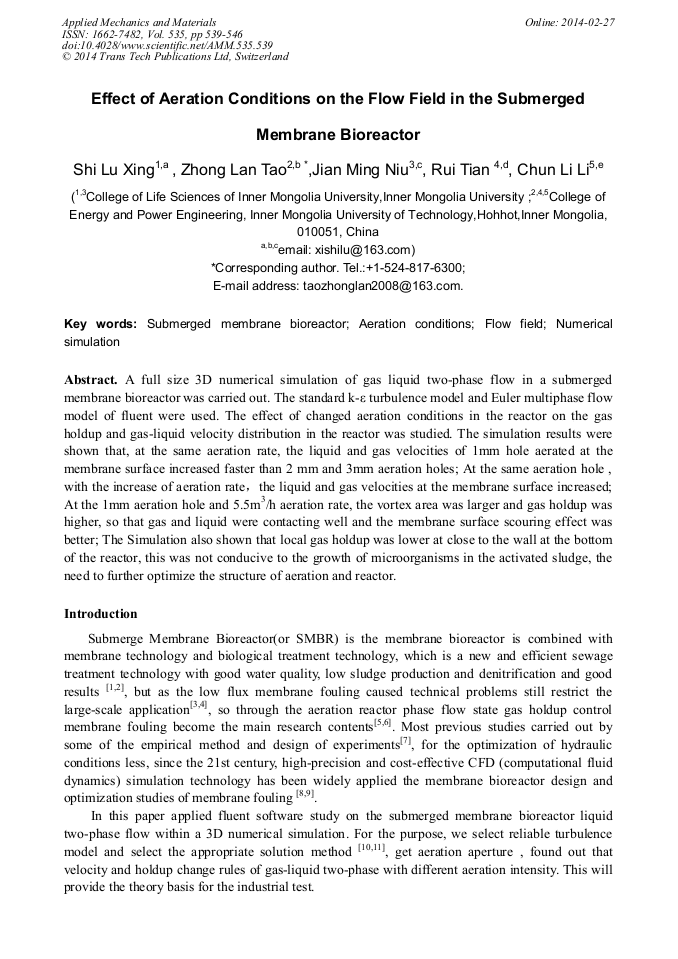

Effect of Aeration Conditions on the Flow Field in the Submerged Membrane Bioreactor

Abstract:

A full size 3D numerical simulation of gas liquid two-phase flow in a submerged membrane bioreactor was carried out. The standard k-ε turbulence model and Euler multiphase flow model of fluent were used. The effect of changed aeration conditions in the reactor on the gas holdup and gas-liquid velocity distribution in the reactor was studied. The simulation results were shown that, at the same aeration rate, the liquid and gas velocities of 1mm hole aerated at the membrane surface increased faster than 2 mm and 3mm aeration holes; At the same aeration hole , with the increase of aeration rate，the liquid and gas velocities at the membrane surface increased; At the 1mm aeration hole and 5.5m³/h aeration rate, the vortex area was larger and gas holdup was higher, so that gas and liquid were contacting well and the membrane surface scouring effect was better; The Simulation also shown that local gas holdup was lower at close to the wall at the bottom of the reactor, this was not conducive to the growth of microorganisms in the activated sludge, the need to further optimize the structure of aeration and reactor.

• Periodical: Applied Mechanics and Materials (Volume 535)
• Pages: 539-546
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.535.539
• Online since: February 2014
• Authors: Shi Lu Xing, Zhong Lan Tao*, Jian Ming Niu, Rui Tian, Chun Li Li
• Keywords: Aeration Conditions, Flow Field, Numerical Simulation, Submerged Membrane Bioreactor

References

[1] Gu Guowei, He Yiliang, The research and application of MBR in sewage treatment, Chemical Industry Press, second ed., Beijing, (2002).

[2] Williams M D., Pirbazari M Membrane bioreactor process for removing biodegradable organic matter from water, J. Water Res. 41(2007)3880-3893.

DOI: 10.1016/j.watres.2007.06.010

[3] Zeng Yiming, Membrane bioreactor technology, National Defense Industry Press, third ed., Beijing, (2007).

[4] Zhang Hongjie, Yu Shuili, Zhao Fangbo, et al, Study on factors in membrane fouling of membrane bioreactors, Journal of Harbin university of Commerce( natural sciences edition), 21(2005)1-5.

[5] Qiao Yubo, Study on Gas/Liquid Two-phase Flow Method to Clean Membranes Fouled in Complexion-Ultrafiltration Process, D. Shanghai Shanghai Jiao Tong University, 12(2012)13-15.

[6] Li Ying, Zang Qian, Effect of Aeration Mode on Operational Performance of Submerged Membrane Bioreactor, J. China Water & Wastewater, 23(2007)1-4.

[7] Marcel, Basic Principles of Membrane Technology , first ed., Tsinghua Press, Beijing, (2004).

[8] Zhang Xiuhua, Wang Daoxi, Experiment and 3-D Simulation of Airlift Loop Reactor, J. Process Equipment&Piping, 46(2009)22-25.

[9] Shen Juan, Wang Wenhua, Xu Zhigang, et al, Numerical Simulation of the Hydrodynamics of the Airlift Loop Reactor, Shanghai Chemical Industry, 32(2007)12-16.

[10] Li Chunli, Tian Rui, Zhang Weiwei, et al. Simulation on flow pattern of gas-liquid two phase flow in Airlift Reactor[J]. Chinese Journal of Environmental Engineering 2012, 12(3)1-4.

[11] Li Chunli, Tian Rui, Tao Zhonglan, Research of dynamics characteristics of flow field in the MBR based on the PIV technology, J. Journal of Engineering Thermophysics, 34(2013)501-504.

[12] Wang Fujun. Computational Fluid Dynamics[M]. Beijing: Tsinghua Press, 2004. 113-123.

[13] Han Jie, Zhu Tong, Huang Yonggang, et al, Numerical Simulation of Fluid Movement in Submerged Flat Type Membrane Bioreactor. Chemistry and Bioengineering, 25(2008)1-4.

[14] Nicolas Rios Ratkovich., modelling hydrodynamics in MBR systems using computational fluid dynamics. IWA North American Membrane Research Conference . (2008).

[15] Li Jin, Wang Ze, Numerical Simulation of Submerged Ultrafiltration Membrane Filter Flow Field. Journal of China three gorges university(natural sciences edition), 32(2010)14-17.

[16] Lin Zonghu, Li Yongguang, Gas-liquid two phase flow vortex loss characteristics and the engineering application, third ed., Chemical Industry Press, Beijing, (2001).

[17] Yuan Wang, Matthew Brannock, Shane Cox, et al. CFD simulations of membrane filtration zone in a submerged hollow fibre membrane bioreactor using a porous media approach, J. Journal of Membrane Science, 363 (2010)57–66.

DOI: 10.1016/j.memsci.2010.07.008

[18] Chang Wei Kang, Jinsong Hua, Jing Lou, et al, Bridging the gap between membrane bio-reactor (MBR) pilot and plant studies , J. 325(2008)861–871.

DOI: 10.1016/j.memsci.2008.09.016

[19] Wang Zheng, The research of flow and mass transfer in the membrane micropore aeration bioreactor , D. Jiang Su: JIANGSU University, (2006)31-46.
