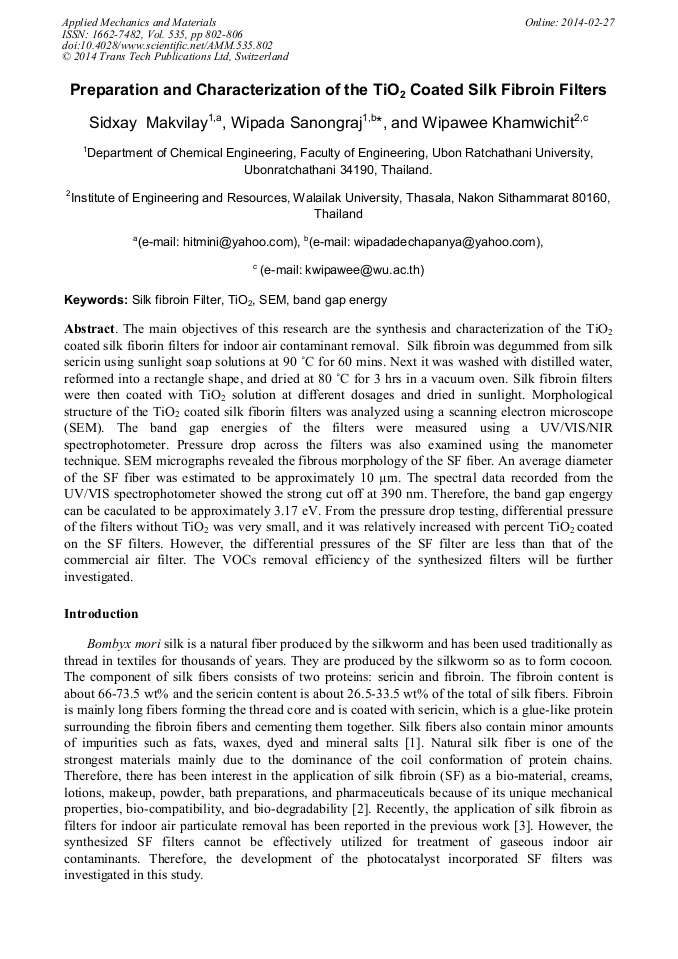

Preparation and Characterization of the TiO₂ Coated Silk Fibroin Filters

Abstract:

The main objectives of this research are the synthesis and characterization of the TiO₂ coated silk fiborin filters for indoor air contaminant removal. Silk fibroin was degummed from silk sericin using sunlight soap solutions at 90 °C for 60 mins. Next it was washed with distilled water, reformed into a rectangle shape, and dried at 80 °C for 3 hrs in a vacuum oven. Silk fibroin filters were then coated with TiO₂ solution at different dosages and dried in sunlight. Morphological structure of the TiO₂ coated silk fiborin filters was analyzed using a scanning electron microscope (SEM). The band gap energies of the filters were measured using a UV/VIS/NIR spectrophotometer. Pressure drop across the filters was also examined using the manometer technique. SEM micrographs revealed the fibrous morphology of the SF fiber. An average diameter of the SF fiber was estimated to be approximately 10 μm. The spectral data recorded from the UV/VIS spectrophotometer showed the strong cut off at 390 nm. Therefore, the band gap engergy can be caculated to be approximately 3.17 eV. From the pressure drop testing, differential pressure of the filters without TiO₂ was very small, and it was relatively increased with percent TiO₂ coated on the SF filters. However, the differential pressures of the SF filter are less than that of the commercial air filter. The VOCs removal efficiency of the synthesized filters will be further investigated.

• Periodical: Applied Mechanics and Materials (Volume 535)
• Pages: 802-806
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.535.802
• Online since: February 2014
• Authors: Sidxay Makvilay, Wipada Sanongraj, Wipawee Khamwichit
• Keywords: Bandgap Energy, SEM, Silk Fibroin Filter, TiO₂

References

[1] H. -J. Jin, J. Park, U. -J. Kim, R. Valluzzi, P. Cebe, D. L. Kaplan. Biomaterials films of Bombyx mori silk with poly(ethylene oxide), Biomacromolecules, Vol. 5, 2004, p.711–717.

DOI: 10.1021/bm0343287

[2] T. Asakura, Sugino. R, Yao.J. M, H, R. Takashima, Comparative structure analysis of tyrosine and valine residues in unprocessed silk fibroin (silk I) and in the processed silk fiber (silk II) from Bombyx mori using solid-state (13) C, (15) N, and (2) H NMR., Biochemistry, Vol. 41, 2002, p.4415.

DOI: 10.1021/bi0119013

[3] J. Triped, W. Sanongraj, B. Oonkhanond, and S. Sanongraj, Synthesis of silk fibroin fiber for indoor air particulate removal, International Journal of Environmental Science and Engineering, Vol. 2, (3): 2010, pp.132-137.

[4] D. S. Bhatkhande, V. G. Pangarkar, A. A. C. M. Beenackers, Photocatalytic degradation for envi-ronmental applications a review, Journal of Chemical Technology and Biotechnology, Vol. 77, 2001, pp.102-116.

DOI: 10.1002/jctb.532

[5] D. Chen, A. K. Ray, Removal of toxic metal ions from wastewater by semiconductor photocatalysis, Chemical Engineering Science, Vol. 56, 2001, pp.1561-1570.

DOI: 10.1016/s0009-2509(00)00383-3

[6] A. Nakaruk, Synthesis and Characterisation of Titania Thin Films, , Materials Science and Engineering Faculty of Science University of New South Wales, (2010).

[7] W. Dechapanya, Photocatalytic Conversion of Metane to Methanol, M.S. thesis, Michigan Technological University, MI, (1999).

[8] P. S. Shinde, S. B. Sadale, P. S. Patil, A. Bruger, M. Neumann Spallart, and C. H. Bhosale, Properties of spray deposited titanium dioxide thin films and their application in photoelectrocatalysis, Solar Energy Materials and Solar Cells, Vol. 92, 2008, pp.283-290.

DOI: 10.1016/j.solmat.2007.09.001

[9] J. Dharma, Simple method of measuring the band gap energy value of TiO2 in the powder form using a UV/Vis/NIR spectrometer, Perkin Elmer, (2012).

[10] D. M. Himmelblau, Basic Principles and Calculations in Chemical Engineering, Prentice Hall, Sixth Edition, (1996).

[11] L. Andronic, and A. Duta, TiO2 thin films for dyes photodegradation, Thin Solid Films, Vol. 55, 2007, pp.6294-6297.

DOI: 10.1016/j.tsf.2006.11.150
