Study on Dynamical Behaviors Mechanism of Sine Voltage Compensation in Buck Converters

Fang Ying Zhang; Wei Hu; Xiao Li Long; Xin Bing Chen

doi:10.4028/www.scientific.net/AMM.536-537.1497

Paper Titles

Preparation and Characterization of the Al/AlN-Al₂O₃ Composite Thermal Energy Storage with Phase Change Materials
p.1477

Search of Phononic Crystal Band-Gap about the Array of 2D Square Tube with Slits
p.1481

Analysis of Push-Pull DC/DC Converter by Poincare Mapping Graph
p.1489

Design of a High Voltage Switching Power Supply with Soft Switching Technology
p.1493

Study on Dynamical Behaviors Mechanism of Sine Voltage Compensation in Buck Converters
p.1497

Experimental Study on Large Turbine HP-Valve’s Excitation Fault Caused by Steam’s Unsteady Flow and its Economic Solution
p.1501

Reactive Power Compensation Method of HVDC Commutation Failure
p.1510

Research and Design of Online Measuring Temperature Device for Switch Contacts of Switch Cabinet
p.1514

Research on Coordination Tuning of V/Hz Limit and Over-Excitation Protection of a Generator
p.1518

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 536-537Study on Dynamical Behaviors Mechanism of Sine...

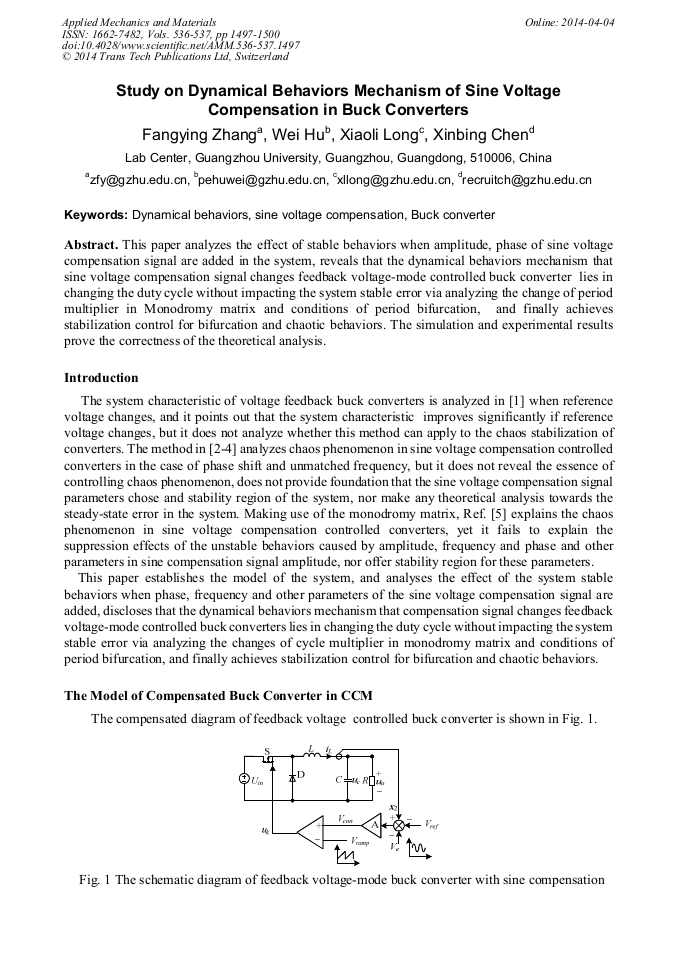

Study on Dynamical Behaviors Mechanism of Sine Voltage Compensation in Buck Converters

Abstract:

This paper analyzes the effect of stable behaviors when amplitude, phase of sine voltage compensation signal are added in the system, reveals that the dynamical behaviors mechanism that sine voltage compensation signal changes feedback voltage-mode controlled buck converter lies in changing the duty cycle without impacting the system stable error via analyzing the change of period multiplier in Monodromy matrix and conditions of period bifurcation, and finally achieves stabilization control for bifurcation and chaotic behaviors. The simulation and experimental results prove the correctness of the theoretical analysis.
