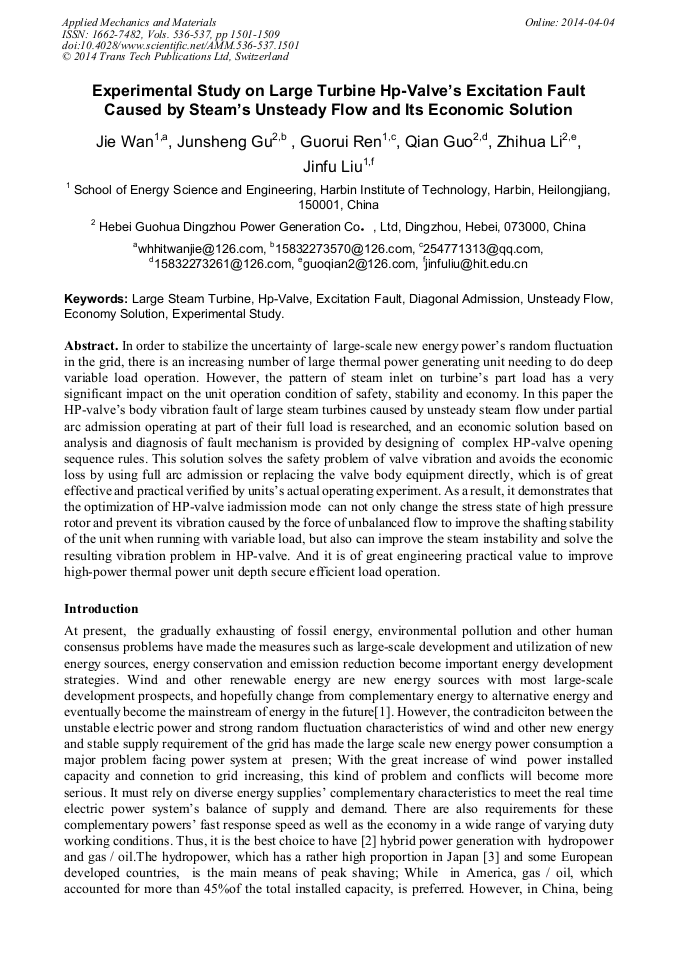

Experimental Study on Large Turbine HP-Valve’s Excitation Fault Caused by Steam’s Unsteady Flow and its Economic Solution

Abstract:

In order to stabilize the uncertainty of large-scale new energy power’s random fluctuation in the grid, there is an increasing number of large thermal power generating unit needing to do deep variable load operation. However, the pattern of steam inlet on turbine’s part load has a very significant impact on the unit operation condition of safety, stability and economy. In this paper the HP-valve’s body vibration fault of large steam turbines caused by unsteady steam flow under partial arc admission operating at part of their full load is researched, and an economic solution based on analysis and diagnosis of fault mechanism is provided by designing of complex HP-valve opening sequence rules. This solution solves the safety problem of valve vibration and avoids the economic loss by using full arc admission or replacing the valve body equipment directly, which is of great effective and practical verified by units’s actual operating experiment. As a result, it demonstrates that the optimization of HP-valve iadmission mode can not only change the stress state of high pressure rotor and prevent its vibration caused by the force of unbalanced flow to improve the shafting stability of the unit when running with variable load, but also can improve the steam instability and solve the resulting vibration problem in HP-valve. And it is of great engineering practical value to improve high-power thermal power unit depth secure efficient load operation.

• Periodical: Applied Mechanics and Materials (Volumes 536-537)
• Pages: 1501-1509
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.536-537.1501
• Online since: April 2014
• Authors: Jie Wan, Jun Sheng Gu, Guo Rui Ren, Qian Guo, Zhi Hua Li, Jin Fu Liu*
• Keywords: Diagonal Admission, Economy Solution, Excitation Fault, Experimental Study, HP-Valve, Large Steam Turbine, Unsteady Flow

References

[1] Houlei Gao, Jia Tian, Qiang Du, et al: Journal of Shandong University: Engineering Science Vol. 39 (2009), pp.106-111 (in Chinese).

[2] Diansheng Zhang, Tao Chen, Yongxing Li, et al: Electric Power Technology Vol. 19 (2010), pp.15-19 (in Chinese).

[3] Zhihua Gao, Zhen Ren, Wenying Huang: Proceedings of the CSEE Vol. 25 (2005), pp.88-92 (in Chinese).

[4] Jizhen Liu: Proceedings of the CSEE Vol. 33 (2013), pp.1-8 (in Chinese).

[5] Lin Gao, Yiping Dai, Zhiqiang Wang, et al: Proceedings of the CSEE Vol. 28 (2008), pp.84-89 (in Chinese).

[6] Daren Yu, Zhansheng Liu, Qiang Li, et al: Journal of Power Engineering Vol. 27 (2007), pp.1-5 (in Chinese).

[7] Xiukun Zhang, Mingdong Jiang, Shengbo Su, et al: Energy Conservation Technology Vol. 23 (2005), pp.87-90 (in Chinese).

[8] Fei Jiang, Jianguo Sun: Energy Conservation Technology Vol. 29 (2011), pp.437-441 (in Chinese).

[9] XueXia Lv, Zhaozhong Li, et al: Energy Conservation Technology Vol. 30 (2012), pp.258-261 (in Chinese).

[10] Chongming Song, Jiao Liu, et al: Energy Conservation Technology Vol. 30 (2012), pp.527-531 (in Chinese).

[11] Yufeng Guo, Zhiqiang Xu, Daren Yu: Turbine control principle (China Machine Press, Beijing 2010) (in Chinese).

[12] Haiping Guan, Xiaoliang Jiao, et al: Energy Conservation Technology Vol. 29 (2011), pp.57-60 (in Chinese).

[13] Zhiqiang Xu, Yingdong Song, et al: Turbinete Chnology Vol. 50 (2008), pp.374-377 (in Chinese).

[14] Daren Yu, Yanfeng Duan, Jinfu Liu, Zhansheng Liu, Qinghua Hu: ASME Journal of Engineering for Gas Turbines and Power Vol. 132 (2010), pp.1-4.

[15] Shan Tu, Bi Sun, Jingru Mao: Power Engineering Vol. 24 (2004), pp.729-731 (in Chinese).

[16] Jian Hu, Bao Zhang: Zhejiang Electric Power Vol. 3 (2009), pp.45-47 (in Chinese).

[17] Haiying Li: Petro-chemical Equipment Technology Vol. 30 (2009), pp.43-46 (in Chinese).

[18] Shan Tu, Jingru Mao, Bi Sun: Fluid Machinery Vol. 28 (2000), pp.30-32 (in Chinese).

[19] Shusan Wu, Jue Wang: Fluid induced vibration (China Machine Press, Beijing 1983) (in Chinese).

[20] Jingru Mao, Shan Tu, et al: Journal of Engineering Thermophysics Vol. 11 (2002), pp.687-690 (in Chinese).
