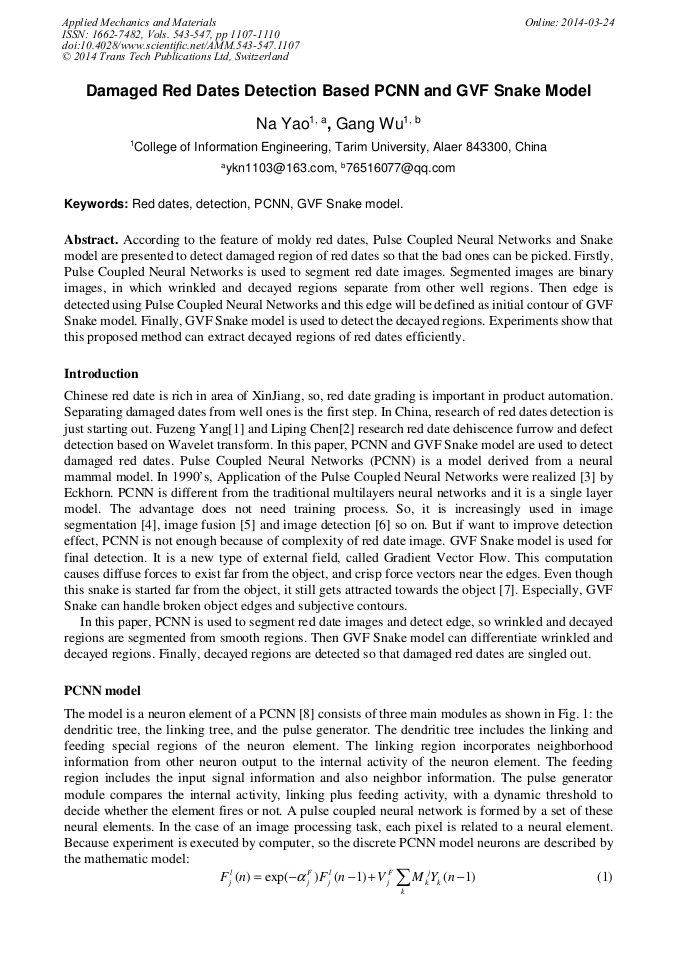

Damaged Red Dates Detection Based PCNN and GVF Snake Model

Abstract:

According to the feature of moldy red dates, Pulse Coupled Neural Networks and Snake model are presented to detect damaged region of red dates so that the bad ones can be picked. Firstly, Pulse Coupled Neural Networks is used to segment red date images. Segmented images are binary images, in which wrinkled and decayed regions separate from other well regions. Then edge is detected using Pulse Coupled Neural Networks and this edge will be defined as initial contour of GVF Snake model. Finally, GVF Snake model is used to detect the decayed regions. Experiments show that this proposed method can extract decayed regions of red dates efficiently.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 543-547)

Pages:

1107-1110

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.543-547.1107

Citation:

Cite this paper

Online since:

March 2014

Authors:

Na Yao*, Gang Wu

Keywords:

Detection, GVF Snake Model, PCNN, Red Dates

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] F.Z. Yang, Z. Wang, W.T. Han and Q. Yang: Chinese date images, Vol. 21 (2005) No. 6, pp.92-95.

Google Scholar

[2] L. Chen: Research on a hybrid wavelet transform-Based Red Jujube Image De-Noising and defect Detection (MS. Northwest A&F University, China 2012), pp.31-57.

Google Scholar

[3] M. ChaconM, A. Zimmermans: A Pulse-Coupled Neural Network Processor, Proceedings of the IEEE (2002), pp.1581-1584.

Google Scholar

[4] Y.L. Chen, S.K. Park, and Y.D. Ma: A New Automatic Parameter Setting Method of a Simplified PCNN for Image Segmentation, Vol. 22 (2011) No. 6, pp.880-892.

DOI: 10.1109/tnn.2011.2128880

Google Scholar

[5] D. Agrawal, J. Singhai: Multifocus image fusion using modified pulse coupled neural network for improved image quality, Vol. 4 (2010), No. 6, pp.443-451.

DOI: 10.1049/iet-ipr.2009.0194

Google Scholar

[6] S.M. He, D.H. Wang: A New Method of Parameters Determined in Image Recognition by Pcnn, 2011 2th International Conference on Control, Instrumentation and Automation (2011) pp.320-323.

DOI: 10.1109/icciautom.2011.6183978

Google Scholar

[7] Y.X. Chen and J. L. Prince, IACL, http: /www. iacl. ece. jhu. edu/static/gvf.

Google Scholar

[8] J.L. Johnson and M.L. Padgett: PCNN models and application, Vol. 10 (1999), No. 3, pp.480-498.

Google Scholar

[9] X.D. Gu, S.D. Guo: A new approach for automated image segmentation based on unit linking PCNN, Proceedings of 2002 International Conference on Machine Learning and Cybernetics(Beijing, China, 2002), pp.175-178.

DOI: 10.1109/icmlc.2002.1176733

Google Scholar
