Design and Characteristics of a New Thin Cross Type Rotary Ultrasonic Motor

Abstract:

A new thin cross type rotary ultrasonic motor has been proposed for further study of this type motors characteristics. As a stator, eight semi-circular piezoelectric ceramics were attached on the upper and bottom sides of a thin hollow cross brass plate. The stator was excited by two sinusoidal voltages with a phase difference of 90° and elliptical trajectories were generated at the contact points to drive a shaft rotor. The driving principle of the motor was illustrated by degenerating two orthogonal in plane vibration modes. Based on FEM analysis, the vibration shapes and frequencies of operation modes were simulated and the relationships between the maximum displacements of the contact points and various motor parameters were obtained. A prototype was fabricated and characteristics of the motor were measured. The relationship among rotation speed, pre-pressure and voltage are no-linear. The maximum rotation speed with no load was 22.9 rpm. The merits and shortcomings of the thin cross type rotary ultrasonic motor were discussed.

You might also be interested in these eBooks

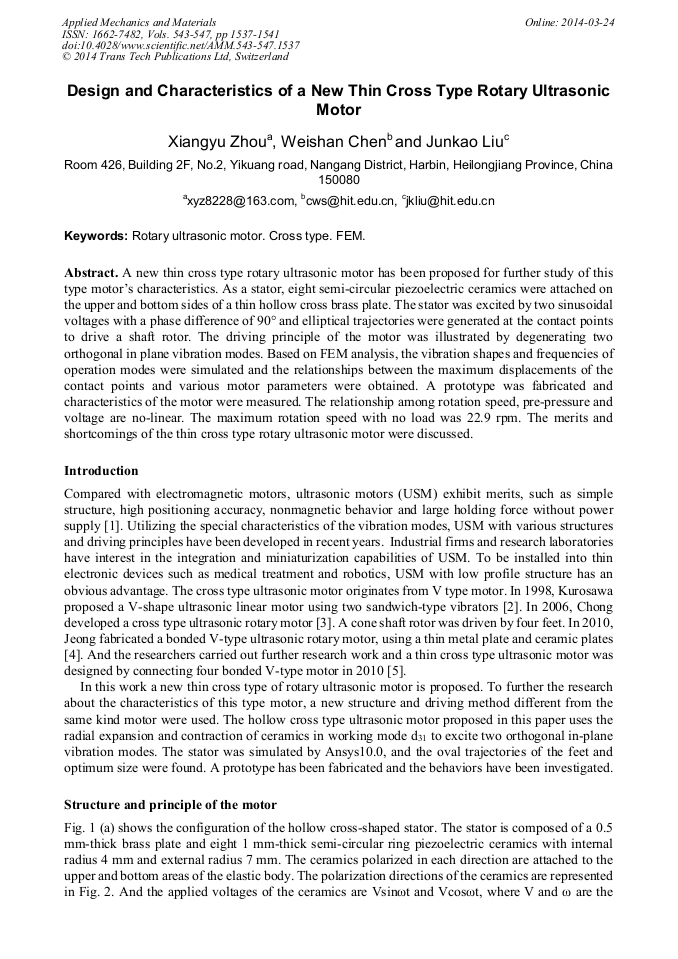

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 543-547)

Pages:

1537-1541

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.543-547.1537

Citation:

Cite this paper

Online since:

March 2014

Authors:

Xiang Yu Zhou*, Wei Shan Chen, Jun Kao Liu

Keywords:

Cross Type, Finite Element Method (FEM), Rotary Ultrasonic Motor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B. Watson, J. Friend, L. Yeo, Piezoelectric ultrasonic micro/milli-scale actuators, Sensors and Actuators, A: Physical, 152(2009) 219-233.

DOI: 10.1016/j.sna.2009.04.001

Google Scholar

[2] M.K. Kurosawa, O. Kodaira, Y. Tsuchitoi, T. Higuchi, Transducer for high speed and large thrust ultrasonic linear motor using two sandwich-type vibrators, IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control. 45 (1998).

DOI: 10.1109/58.726442

Google Scholar

[3] H.H. Chong, T.G. Park, M.H. Kim, A study on driving characteristics of the cross type ultrasonic rotary motor, Journal of Electroceramics, 17 (2006) 561-564.

DOI: 10.1007/s10832-006-5414-5

Google Scholar

[4] S.S. Jeong, T.G. Park, M.H. Kim, T.K. Song, Characteristics of a V-type ultrasonic rotary motor, Current Applied Physics, 11 (2011) S364-S367.

DOI: 10.1016/j.cap.2011.03.013

Google Scholar

[5] T.G. Park, S.S. Jeong, H.H. Chong, K.J. Uchino, Design of thin cross type ultrasonic motor, J. Electroceramics, 24 (2010) 288-293.

DOI: 10.1007/s10832-009-9570-2

Google Scholar
