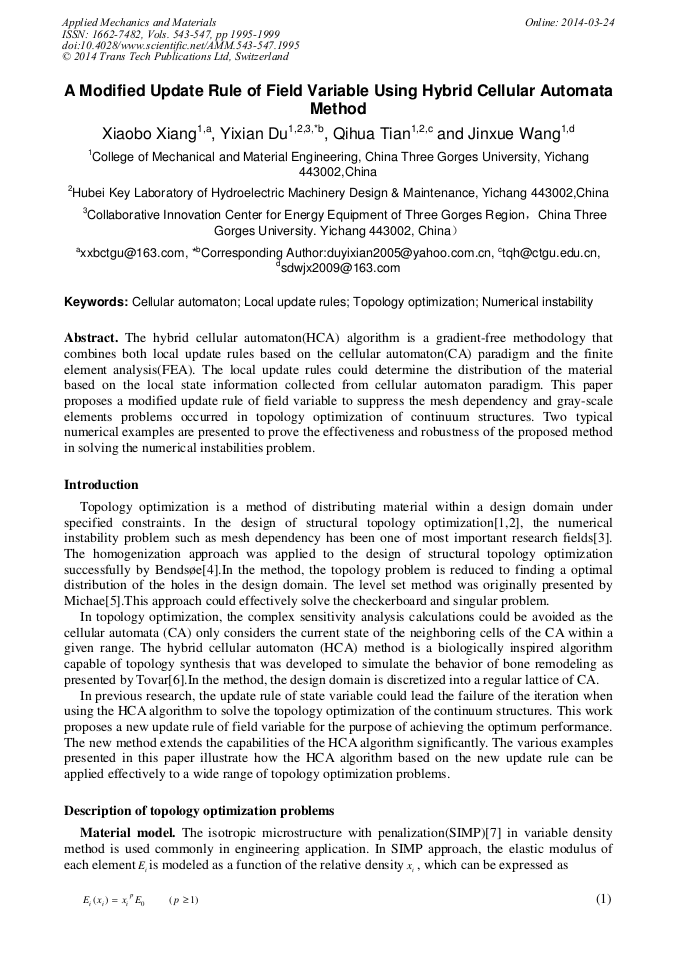

A Modified Update Rule of Field Variable Using Hybrid Cellular Automata Method

Abstract:

The hybrid cellular automaton (HCA) algorithm is a gradient-free methodology that combines both local update rules based on the cellular automaton (CA) paradigm and the finite element analysis (FEA). The local update rules could determine the distribution of the material based on the local state information collected from cellular automaton paradigm. This paper proposes a modified update rule of field variable to suppress the mesh dependency and gray-scale elements problems occurred in topology optimization of continuum structures. Two typical numerical examples are presented to prove the effectiveness and robustness of the proposed method in solving the numerical instabilities problem.

• Periodical: Applied Mechanics and Materials (Volumes 543-547)
• Pages: 1995-1999
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.543-547.1995
• Online since: March 2014
• Authors: Xiao Bo Xiang, Yi Xian Du*, Qi Hua Tian, Jin Xue Wang
• Keywords: Cellular Automaton, Local Update Rules, Numerical Instability, Topology Optimization

References

[1] Rozvany. G I N. 7th World Congress on Structural and Multidisciplinary Optimization(Coex, Seoul, South Korea, May 21-25, 2007), p.217.

[2] Sokol. Tomasz, Rozvany. George I. N. Structural and Multidisciplnary Optomization, Vol. 48(2013) No. 4, p.853.

[3] Sigmund. O, Computer Methods in Applied Mechanics and Engineering, Vol. 190(2001) No. 49-50, p.6577.

[4] Bendsøe. M. P., Sigmund O. Archive of Applied Mechanics, Vol. 69(1999) No. 9-10, p.635.

[5] Michael. Y W, X.M. Wang and D.M. Guo. Computer Methods in Applied Mechanics and Engineering, Vol. 192(2003) No. 1-2, p.227.

[6] Tovar A, Patel N M and Niebur G L, et al. Journal of Mechanical Design, Vol. 128(2006) No. 6, p.1205.

[7] Rietz A. Struct Multidisc Optim, Vol. 21(2001) No. 2, p.159.

[8] Stolpe M, Svanberg K. Struct and Multidisc Optim, Vol. 22(2001) No. 2, p.116.
