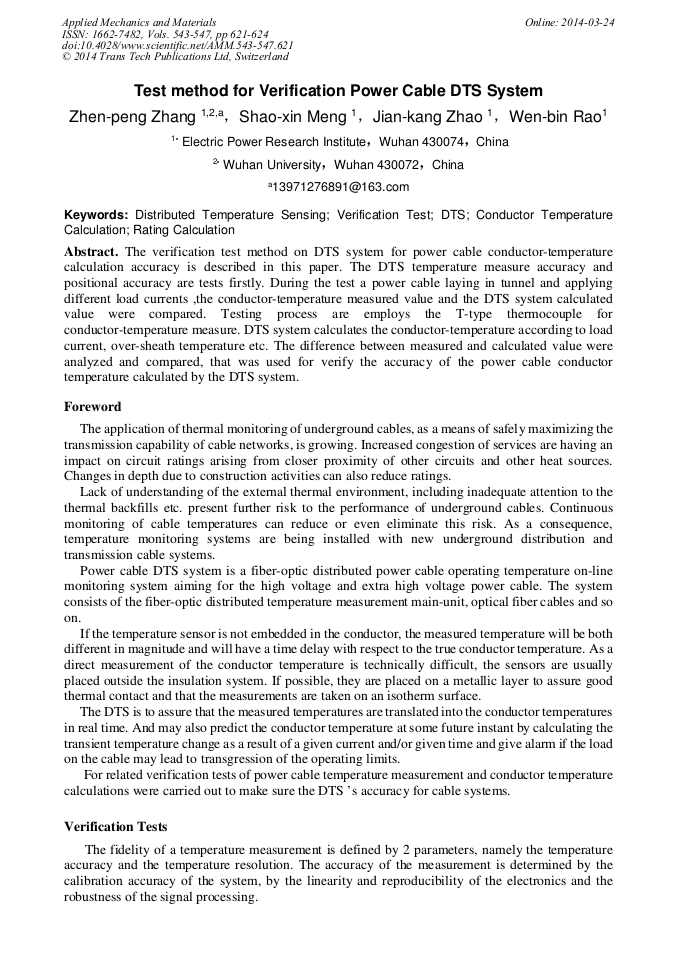

Test Method for Verification Power Cable DTS System

Abstract:

The verification test method on DTS system for power cable conductor-temperature calculation accuracy is described in this paper. The DTS temperature measure accuracy and positional accuracy are tests firstly. During the test a power cable laying in tunnel and applying different load currents ,the conductor-temperature measured value and the DTS system calculated value were compared. Testing process are employs the T-type thermocouple for conductor-temperature measure. DTS system calculates the conductor-temperature according to load current, over-sheath temperature etc. The difference between measured and calculated value were analyzed and compared, that was used for verify the accuracy of the power cable conductor temperature calculated by the DTS system.

• Periodical: Applied Mechanics and Materials (Volumes 543-547)
• Pages: 621-624
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.543-547.621
• Online since: March 2014
• Authors: Zhen Peng Zhang*, Shao Xin Meng, Jian Kang Zhao, Wen Bin Rao
• Keywords: Conductor Temperature Calculation, Distributed Temperature Sensing, DTS, Rating Calculation, Verification Test

References

[1] Optimization of power transmission capability of underground cable systems using thermal monitoring[R]．Report of CIGRE WG B1-02: 2004.

[2] Current Ratings of Cables for Cyclic and Emergency Loads[R]．Report of CIGRE WG 02 of Study Committee (HV cable): 1972.

[3] Construction, laying and installation techniques for extruded and self-contained fluid filled cable systems[R]．Report of CIGRE WG 21-17: 2001.

[4] Technical and environmental issues regarding the integration of a new HV underground cable system in the network[R]. Report of CIGRE WG B1-19: 2004.

[5] Asset Management of Transmission Systems and Associated CIGRE Activities[R]．Report of CIGRE WG C1-1: 2006.

[6] D. A. Douglass and A. A. Edris. Real-time monitoring and dynamic thermal rating of power transmission circuits[J]．IEEE Trans. Power Del. vol. 11, no. 3, pp.1407-1417，Jul. 1996.

DOI: 10.1109/61.517499

[7] ZHANG Zhenpeng，ZHAO Jiankang，RAO Wenbin，et al．Validate Test for the Calculation congruity of Distributed temperature Sensing System[J]，High Voltage Engineering，12，38(6): 1362-1367.

[8] IEC 60853．Calculation of the Cyclic and Emergency Current Rating of Cable[S]，2002.

[9] IEC 60287．Electric cable-calculation of the current rating[S]，2002.

[10] Zhang Zhenpeng，Zhao Jiankang，Yang Feng，et al．Power Cable Emergency Loading Emulate Calculation and Test Research [J]，High Voltage Engineering，2011, 37(s).
