Multi-Physics Coupling Field Nonlinear Finite Element Model for Giant Magnetostrictive Smart Component

Abstract:

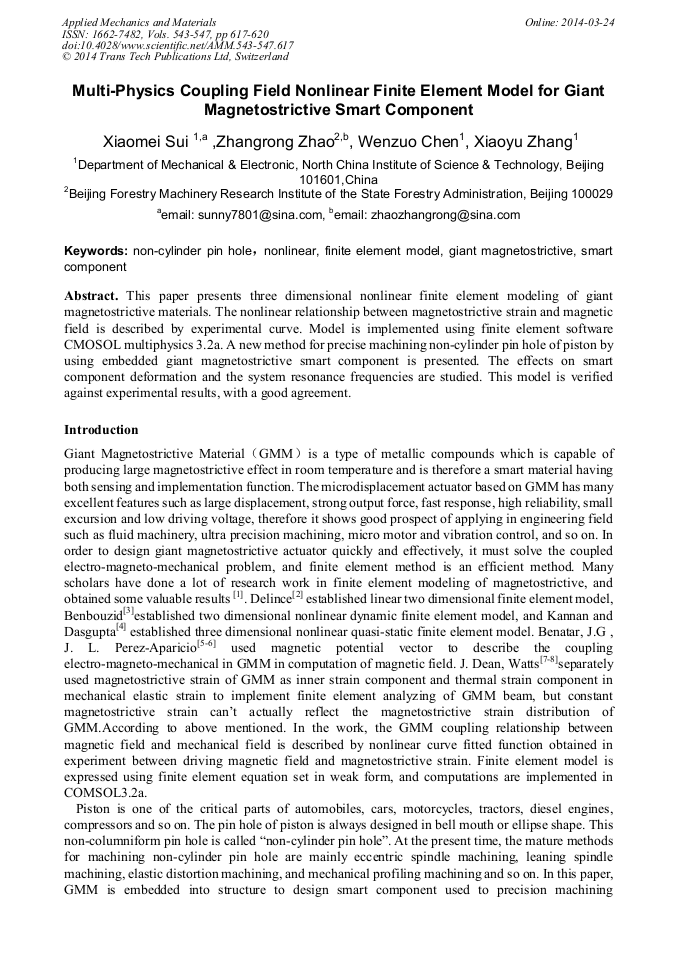

This paper presents three dimensional nonlinear finite element modeling of giant magnetostrictive materials. The nonlinear relationship between magnetostrictive strain and magnetic field is described by experimental curve. Model is implemented using finite element software CMOSOL multiphysics 3.2a. A new method for precise machining non-cylinder pin hole of piston by using embedded giant magnetostrictive smart component is presented. The effects on smart component deformation and the system resonance frequencies are studied. This model is verified against experimental results, with a good agreement.
