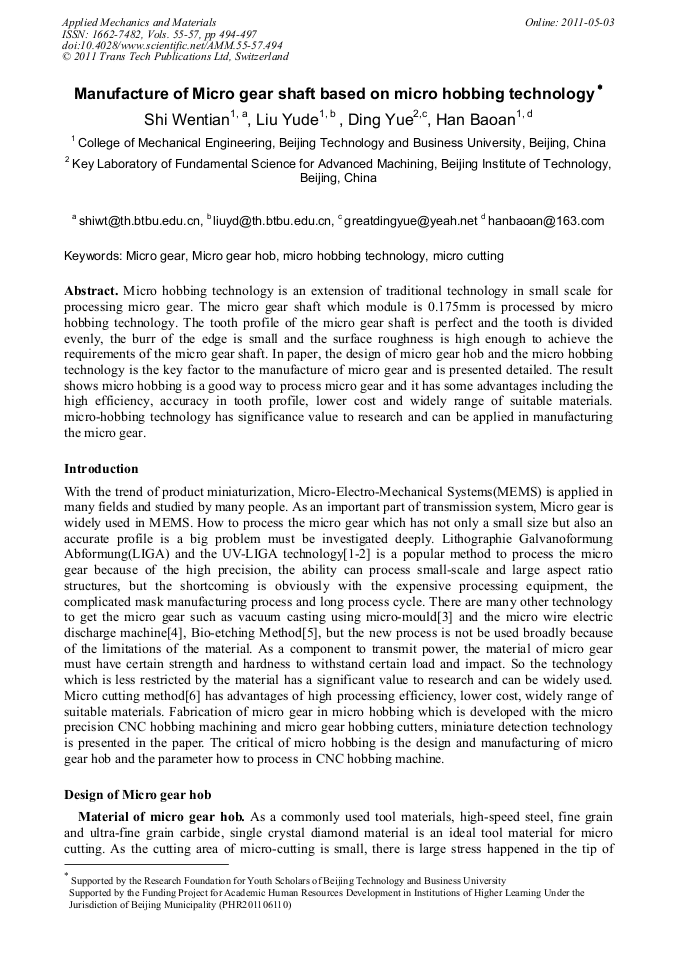

Manufacture of Micro Gear Shaft Based on Micro Hobbing Technology

Abstract:

Micro hobbing technology is an extension of traditional technology in small scale for processing micro gear. The micro gear shaft which module is 0.175mm is processed by micro hobbing technology. The tooth profile of the micro gear shaft is perfect and the tooth is divided evenly, the burr of the edge is small and the surface roughness is high enough to achieve the requirements of the micro gear shaft. In paper, the design of micro gear hob and the micro hobbing technology is the key factor to the manufacture of micro gear and is presented detailed. The result shows micro hobbing is a good way to process micro gear and it has some advantages including the high efficiency, accuracy in tooth profile, lower cost and widely range of suitable materials. micro-hobbing technology has significance value to research and can be applied in manufacturing the micro gear.

• Periodical: Applied Mechanics and Materials (Volumes 55-57)
• Pages: 494-497
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.55-57.494
• Online since: May 2011
• Authors: Wen Tian Shi, Yu De Liu, Yue Ding, Bao An Han
• Keywords: Micro Cutting, Micro Gear, Micro Gear Hob, Micro Hobbing Technology

References

[1] Weiping Zhang, Wenyuan Chen, Di Chen et. al, Modeling and fabrication of micro 3K-2-type planetary gear reducer utilizing SU-8 photoresist as alternative LIGA technology, SPIE, Vol. 4601, pp.271-277, (2001).

DOI: 10.1117/12.444690

[2] Becker E W, Ehrfeld W, Fahrni N, et al. Fabrication of Microstructures with High Aspect Ratios and Great Structural Heights by Synchrotron Radiation Lithography, Galvano forming, and Plastic Moulding (LIGA Process) , Microelectronic Engineering, v 4, pp.35-55. (1986).

DOI: 10.1016/0167-9317(86)90004-3

[3] Y. Tang, W.K. Tan, J.Y.H. Fuh, et al.: Micro-mould fabrication for a micro-gear via vacuum casting. Journal of Materials Processing Technology, pp.334-339, (2007).

DOI: 10.1016/j.jmatprotec.2007.04.098

[4] Chen Wenyuan, Ding Tao, Zhang Weiping, Research on Fabricate EDM of the Module 0. 06 Micro Gear, Micro Fabrication Technology (in Chinese), pp.49-54, (1998).

[5] Liu Yude, Shi Wentian, Zhang Yuan, et al. Analysis on qualities of bio-etching processing micro-gear part. 2010 International Conference on Mechanic Automation and Control Engineering, MACE2010, pp.5792-5794, (2010).

DOI: 10.1109/mace.2010.5535469

[6] Shi wentian, Liu Yude. Fabrication of micro gear based on micro-milling, 2010 International Conference on Computer, Mechatronics, Control and Electronic Engineering , CMCE 2010, pp.608-611, (2010).

DOI: 10.1109/cmce.2010.5610417

[7] Shi wentian, Wang Xibin, Liu Yude, et al. Design of Micro Involute Gear milling Cutter based of AutoCAD, Mechanical science and technology for aerospace engineering (in Chinese), v 28, n 12, pp.1616-1620, (2009).
