Effect of Bearing Dynamic Properties on the Lateral Vibration of a Flexible Rotor

Abstract:

Analytic study of rotor vibration plays an important role in design, and fault detection and diagnosis of rotating machines. In this paper, vibration characteristics of a flexible rotor due to a central mass unbalance were analysed numerically under two cases. In Case I, bearings have symmetric, isotropic stiffness and damping matrices, while in Case II they have asymmetric, non-isotropic stiffness and damping matrices. It was found in Case I that critical speed occurs at 1690 rpm and the orbital trajectories of rotor mass stations are circular and corotational. In Case II, response orbit of either the bearing or the disk is elliptic and the size, shape, and orientation of the elliptical orbit changes with shaft speed, and also from the bearing to the disk.

You might also be interested in these eBooks

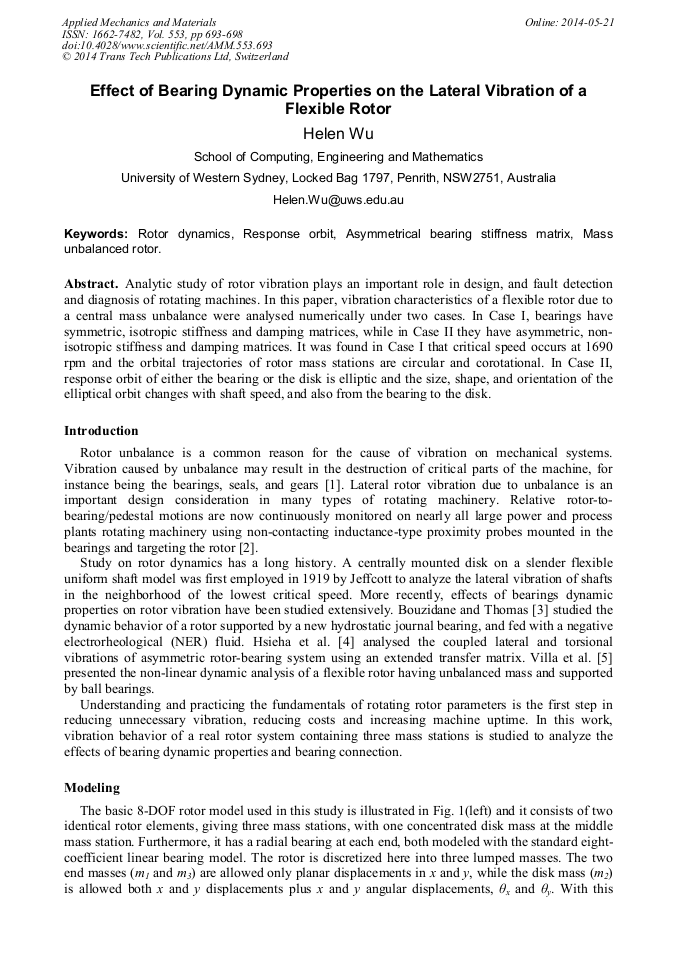

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 553)

Pages:

693-698

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.553.693

Citation:

Cite this paper

Online since:

May 2014

Authors:

Helen Wu*

Keywords:

Asymmetrical Bearing Stiffness Matrix, Mass Unbalanced Rotor, Response Orbit, Rotor Dynamics

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Z. Kıral, H. Karagülle, Vibration analysis of rolling element bearings with various defects under the action of an unbalanced force, Mechanical Systems and Signal Processing, 20 (2006) 1967–(1991).

DOI: 10.1016/j.ymssp.2005.05.001

Google Scholar

[2] J. J. Sinou, F. Thouverez, Experimental study of a flexible rotor and its dependency on the rolling-bearing temperature, International Journal of Rotating Machinery, Article ID 38595, 2006 (2006) 1–8.

DOI: 10.1155/ijrm/2006/38595

Google Scholar

[3] A Bouzidane, M. Thomas, An electrorheological hydrostatic journal bearing for controlling rotor vibration. Computers & Structures, 86 (2008) 463–472.

DOI: 10.1016/j.compstruc.2007.02.006

Google Scholar

[4] S. C. Hsieha, J. H. Chenb, A. C. Leea, A modified transfer matrix method for the coupled lateral and torsional vibrations of asymmetric rotor-bearing systems, Journal of Sound and Vibration, 312 (2008) 563–571.

DOI: 10.1016/j.jsv.2008.01.006

Google Scholar

[5] C. Villa, J. J. Sinou, F. Thouverez, Stability and vibration analysis of a complex flexible rotor bearing system, Communications in Nonlinear Science and Numerical Simulation, 13 (2008) 804–821.

DOI: 10.1016/j.cnsns.2006.06.012

Google Scholar

[6] L. Maurice, JR. Adams, Rotating Machinery Vibration, the second edition, CRC Press, Taylor &Francis Group, (2010).

Google Scholar
