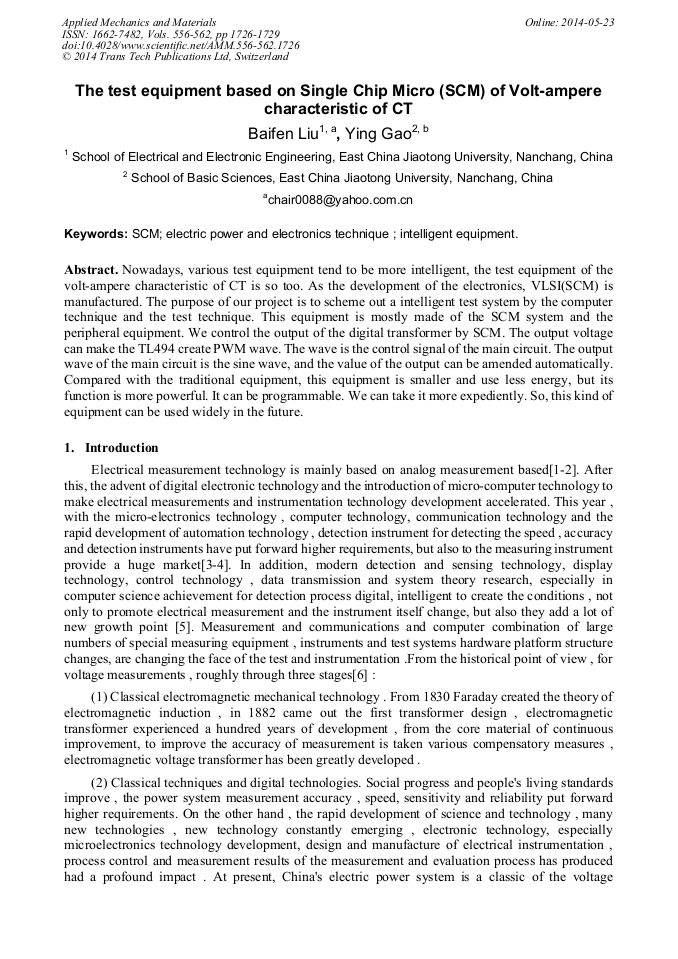

The Test Equipment Based on Single Chip Micro (SCM) of Volt-Ampere Characteristic of CT

Abstract:

Nowadays, various test equipment tend to be more intelligent, the test equipment of the volt-ampere characteristic of CT is so too. As the development of the electronics, VLSI(SCM) is manufactured. The purpose of our project is to scheme out a intelligent test system by the computer technique and the test technique. This equipment is mostly made of the SCM system and the peripheral equipment. We control the output of the digital transformer by SCM. The output voltage can make the TL494 create PWM wave. The wave is the control signal of the main circuit. The output wave of the main circuit is the sine wave, and the value of the output can be amended automatically. Compared with the traditional equipment, this equipment is smaller and use less energy, but its function is more powerful. It can be programmable. We can take it more expediently. So, this kind of equipment can be used widely in the future.

• Periodical: Applied Mechanics and Materials (Volumes 556-562)
• Pages: 1726-1729
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.556-562.1726
• Online since: May 2014
• Authors: Bai Fen Liu*, Ying Gao
• Keywords: Electric Power, Electronics Technique, Intelligent Equipment, SCM

References

[1] Jung-Goo Cho, Sabate.J. A, Guichao Hua, et, al. Zero-voltage and zero-current-switching full bridge PWM converter for high-power application. IEEE Transactions. On Power Electronics, 1996, 11(4): 622-628.

DOI: 10.1109/63.506128

[2] E. S. Kim, K. Y. Joe,M. H. Kye, et, al. An improved soft-switching PWM FB DC/DC converter for reducing conduction losses. IEEE. Trans. Power Electron, vol. 14, No. 2, 1999, pp: 258-264.

DOI: 10.1109/63.750178

[3] Jong-kyu Jung, Woo-seub Youm, Kyi-hwan Park, Vibration reduction control of a voice coil motor (VCM) nano scanner, International Journal of Precision Engineering and Manufacturing, vol. 10, no. 3, pp.167-170, (2009).

DOI: 10.1007/s12541-009-0063-7

[4] Chien-Sheng Liu, Psang-Dain Lin, Po-Heng Lin, Shun-Sheng Ke, Yu-Hsiu Chang and Ji-Bin Horng, Desing and characterization of miniature auto-focusing voice coil motor actuator for cell phone camera applications, IEEE Transactions on Magnetics, vol. 45, no. 1, pp.155-159, June (2009).

DOI: 10.1109/tmag.2008.2006564

[5] Shir-Kuan Lin, Chao-Min Wang and Shyh-Jier Wang, Design and implementation of anti hand shaking position control for a voice coil motor, Journal of Applied Physics, vol. 103, no. 7, pp. 07F128, (2008).

DOI: 10.1063/1.2839338

[6] Xinbo. Ruan, Fuxin Liu. An improved ZVS PWM full-bridge converter with clamping diodes. Power Electronics Specialists Conference, 2004. PESC 04. 2004 IEEE 35th Annual Vol. 2, 2004, pp: 1476-1481.

DOI: 10.1109/pesc.2004.1355642
