A High Accuracy of Magnetometer by Using Independent Directional Magnetic Field Measurement Technique

Abstract:

In a measurement of magnetic flux density with high accuracy by using Hall effect sensor must be considered position of Hall sensor, that perfect perpendicular with magnetic flux line for measurement. Only one Hall element can cause measuring error. Therefore, this paper presents an application of independent directional magnetic field measurement technique on two dimensions for high accuracy magnetometer. It is presented by using two Hall sensors locate perpendicular to each other and use the relation of the two voltage output signal from both Hall sensors to calculate constant Hall voltage and Magnetic flux density with high accuracy by using trigonometric function with Lab-View programming. And as the result of experiment, this technique can reduce the limitation in term of this angle in the range magnetic flux density can be measured 0-1800 gauss. A calibration curve of this system compare with standard Gauss meter shows the coefficient of determination (R²) equal to 1 and has the accuracy percentage as less than 0.5%.

You might also be interested in these eBooks

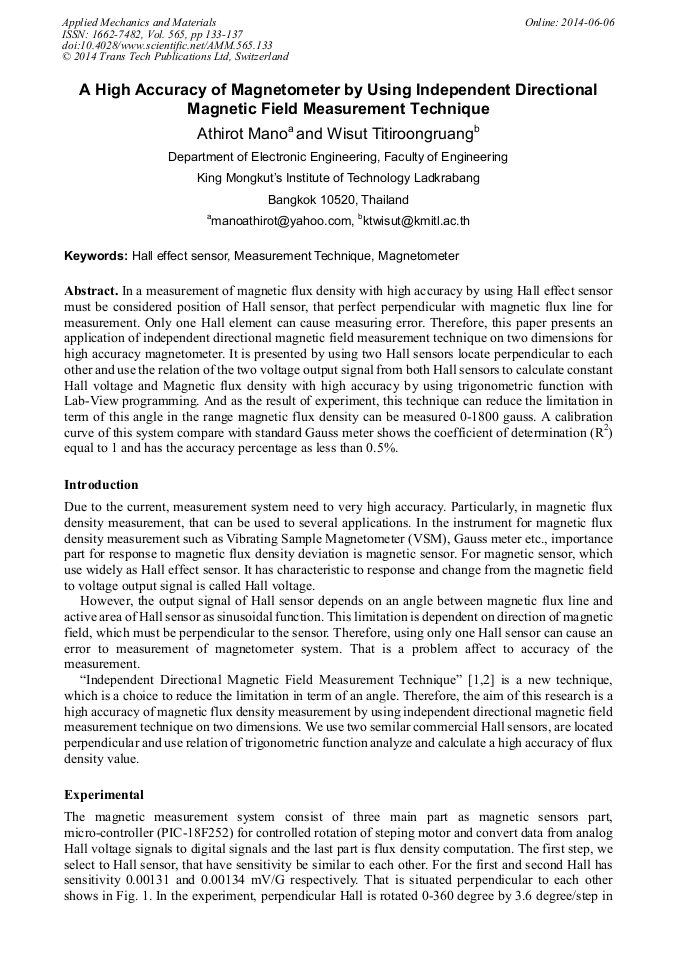

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 565)

Pages:

133-137

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.565.133

Citation:

Cite this paper

Online since:

June 2014

Authors:

Athirot Mano*, Wisut Titiroongruang

Keywords:

Hall Effect Sensor, Magnetometer, Measurement Technique

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Athirot Mano, Santi Chatruprachewin, Laddawan Supadee, Chaba Suriyaammaranon and Wisut Titiroongruang, Independent Directional Magnetic Field Measurement Technique, Proceeding of the 33rd Electrical Engineering Conference(EECON-33)(2010).

DOI: 10.1109/inec.2010.5424598

Google Scholar

[2] Athirot Mano, Narin Atiwongsangthong and Wisut Titiroongruang, Improvement of Independent Directional Magnetic field Measurement Technique with Hall sensors in Journal of Advanced Materials Research, Vol. 811, pp.347-352, (2013).

DOI: 10.4028/www.scientific.net/amr.811.347

Google Scholar

[3] Kelly S. Fundamentals of Instrumentation. 2nd ED. Delmar cengage leaning, New York, (2008).

Google Scholar

[4] Richard S. Muller and Theodore I. Kamins. Device Electronics for Integrated Circuits, John Wiley&Sons, New York, Inc., (1986).

Google Scholar
