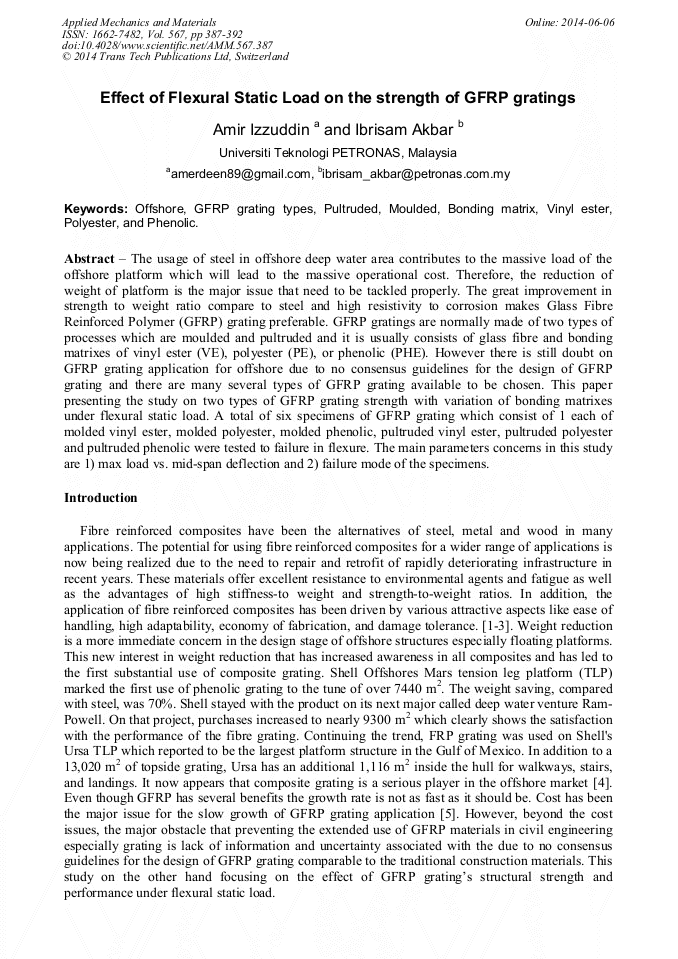

Effect of Flexural Static Load on the Strength of GFRP Gratings

Abstract:

– The usage of steel in offshore deep water area contributes to the massive load of the offshore platform which will lead to the massive operational cost. Therefore, the reduction of weight of platform is the major issue that need to be tackled properly. The great improvement in strength to weight ratio compare to steel and high resistivity to corrosion makes Glass Fibre Reinforced Polymer (GFRP) grating preferable. GFRP gratings are normally made of two types of processes which are moulded and pultruded and it is usually consists of glass fibre and bonding matrixes of vinyl ester (VE), polyester (PE), or phenolic (PHE). However there is still doubt on GFRP grating application for offshore due to no consensus guidelines for the design of GFRP grating and there are many several types of GFRP grating available to be chosen. This paper presenting the study on two types of GFRP grating strength with variation of bonding matrixes under flexural static load. A total of six specimens of GFRP grating which consist of 1 each of molded vinyl ester, molded polyester, molded phenolic, pultruded vinyl ester, pultruded polyester and pultruded phenolic were tested to failure in flexure. The main parameters concerns in this study are 1) max load vs. mid-span deflection and 2) failure mode of the specimens.

• Periodical: Applied Mechanics and Materials (Volume 567)
• Pages: 387-392
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.567.387
• Online since: June 2014
• Authors: Amir Izzuddin*, Ibrisam Akbar
• Keywords: Bonding Matrix, GFRP Grating Types, Moulded, Offshore, Phenolic, Polyester, Pultruded, Vinyl Ester

References

[1] Liao, K., Schultheisz, C.R., & Hunston, D.L., Long-term environmental fatigue of pultruded glass-fiber-reinforced composites under flexural loading, International Journal of Fatigue, vol 21, pp.485-495, (1999).

DOI: 10.1016/s0142-1123(98)00088-7

[2] Gu H., Behaviours of glass fibre/unsaturated polyester composites under seawater environment, Materials & Design, vol 30(4), pp.1337-1340, (2009).

DOI: 10.1016/j.matdes.2008.06.020

[3] Buck, S.E., Lischer, D.W., & Nemat-Nasser, S., Mechanical and microstructural properties of notched E-glass/vinyl ester composite materials subjected to the environment and a sustained load, material science and Engineering, vol. A317, pp.128-134, (2001).

DOI: 10.1016/s0921-5093(01)01170-4

[4] Carlean, T., Composite grating is right for today' offshore market, Reinforced plastics, vol. 40, pp.38-44, (1996).

DOI: 10.1016/s0034-3617(98)80225-7

[5] Karbhari, V.M., Chin, J.W., Hunston, D., Benmokrane, B., Juska, T., & Morgan, R., Durability gap analysis for fiber-reinforced composites in civil infrastructure, ASCE J Composite Construction, vol. 7, pp.238-247, (2003).

DOI: 10.1061/(asce)1090-0268(2003)7:3(238)

[6] Hollaway, L., Glass Reinforced plastics in construction: Engineering Aspects., Bishopbriggs, Glassgow, Surrey University Press., (1978).

[7] AIMS. DeltaGrate TM HS High Strength Compression Moldedd Fiberglass Grating. Retrieved 2013 from www. aims-intl. com. AIMS Advanced Industrial & Marine Services, Inc.

[8] CHINAGRATE. Fire strength Phenolic gratings guide. Retrieved 2013 from www. chinagrate. com.

[9] Meng, X., & Tom, Lo., Advances in FRP moulded grating in Asia, Reinforced plastics, vol. 44, pp.46-47, (2000).

DOI: 10.1016/s0034-3617(00)89149-3

[10] Ceroni, F., Cosenza, E., Gaetano, M., & Pecce, M., Durability issues of FRP rebars in reinforced concrete members, Cement and Concrete Composites, vol. 28, pp.857-868, (2006).

DOI: 10.1016/j.cemconcomp.2006.07.004

[11] Mezghani, K., Long term environmental effects on physical properties of vinylester composite pipes, Polymer Testing, vol. 31, pp.76-82, (2012).

DOI: 10.1016/j.polymertesting.2011.10.001

[12] Signor, A.W., VanLandingham, W., MarkR., & Chin, J. W., Effects of ultraviolet radiation exposure on vinyl ester resins: characterization of chemical, physical and mechanical damage, Polymer Degradation and Stability, vol. 79, p.359–368, (2003).

DOI: 10.1016/s0141-3910(02)00300-2

[13] Mallick, P.K., Fibre reinforced composites; Materials, Manufacturing and design: 2ne ed. New York, Marcel Dekker, Inc., (1993).

[14] Benmokrane, B., Chaallal, O., & Masmoudi, R., Glass fibre reinforced plastic (GFRP) rebars for concrete structures, Construction and Building Materials, vol. 9, pp.353-364, (1995).

DOI: 10.1016/0950-0618(95)00048-8

[15] Teng, J. G., Chen, J. F., Smith, S. T., & Lam, L., FRP strengthend RC structures: England, Jhon Wiley &Sons, Ltd., (2002).

[16] Paciornik, S.F.M.M., Martinho, F.M., De Mauricio, M.H.P., & d'Almeida, J.R.M., Analysis of the mechanical behavior and characterization of pultruded glass fiber–resin matrix composites, Composites Science and Technology, vol. 63, pp.295-304, (2003).

DOI: 10.1016/s0266-3538(02)00249-x

[17] Bank, L.C., Composites for construction: Structural design with FRP materials. New Jersey John Wiley and Sons Inc., (2006).
