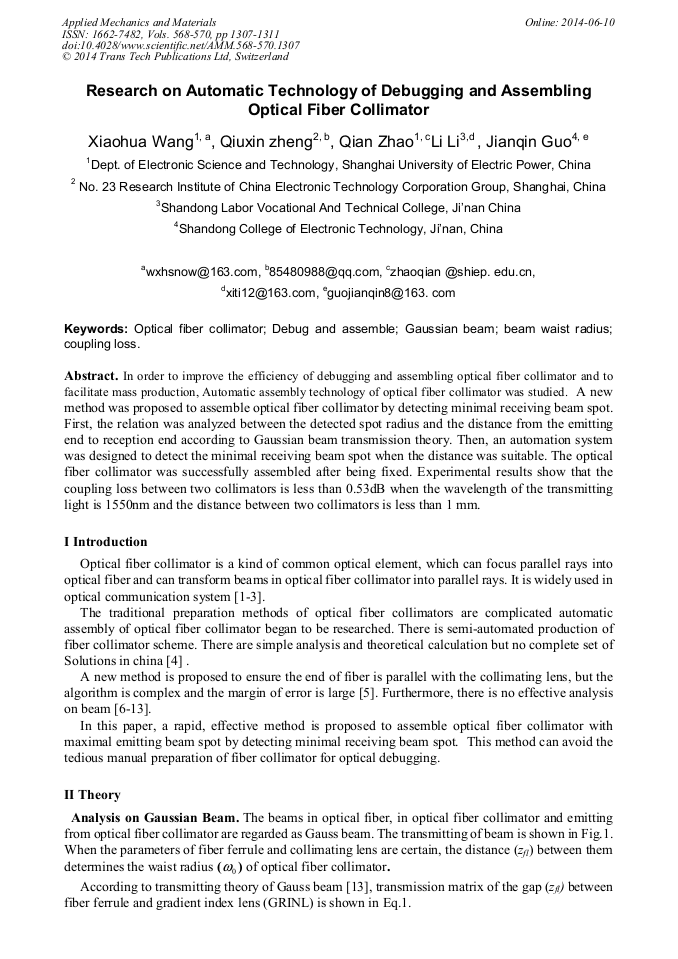

Research on Automatic Technology of Debugging and Assembling Optical Fiber Collimator

Abstract:

In order to improve the efficiency of debugging and assembling optical fiber collimator and to facilitate mass production, Automatic assembly technology of optical fiber collimator was studied. A new method was proposed to assemble optical fiber collimator by detecting minimal receiving beam spot. First, the relation was analyzed between the detected spot radius and the distance from the emitting end to reception end according to Gaussian beam transmission theory. Then, an automation system was designed to detect the minimal receiving beam spot when the distance was suitable. The optical fiber collimator was successfully assembled after being fixed. Experimental results show that the coupling loss between two collimators is less than 0.53dB when the wavelength of the transmitting light is 1550nm and the distance between two collimators is less than 1 mm.

• Periodical: Applied Mechanics and Materials (Volumes 568-570)
• Pages: 1307-1311
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.568-570.1307
• Online since: June 2014
• Authors: Xiao Hua Wang*, Qiu Xin Zheng, Qian Zhao, Li Li, Jian Qin Guo
• Keywords: Assemble, Beam Waist Radius, Coupling Loss, Debug, Gaussian Beam, Optical Fiber Collimator

References

[1] O. V. Nikiforov, Yu. D. Pimenov, M. N. Sokol'ski:. Opt. Technol. Vol. 76(10)( 2009), pp.620-623.

[2] Mi Lei, Yao Shengli, Sun Chuandong: Infrared and Laser Engineering. Vol. 40(6)( 2011) , pp.1138-1142. IN Chinese.

[3] Zheng Qiuxin , Li Yi, Shen Yujian: Journal of Optoelectronics . laser. Vol. 23(12) (2012), pp.2310-2315. IN Chinese.

[4] Zhong Ping, Qiu Jianxin: Journal of Optoelectronics . laser. Vol. 218(7) (2007), pp.882-885. IN Chinese.

[5] Yang Kun-tao, Chen Jie. : Opto-Electronic Engineering. Vol. 30(2) (2003), pp.36-39. IN Chinese. 5.

[6] Gao Xueyan, Su Yi, He Junzhang: Acta Optical Sinica. Vol. 24(10) (2004), pp.1411-1416. IN Chinese.

[7] Wei Zhimeng, Yang Kaiyong: Laser Journal, , Vol. 32(1)(2011), pp.17-18.

[8] Yuan Jie, Chen Mei-xiong, KANG Zheng-long: Optics Letters, Vol. 37 (11) (2012), p.2082-(2084).

[9] CHUShu-chun, CHEN Yun-ting, Ko-Fan Tsai: Optics Express. Vol. 20(7) (2012), pp.7128-7140.

[10] Pablo Vaveliuk, Oscar Martinez-Matos: Optics Express, Vol. 19(27) (2011) pp.25944-25953.

DOI: 10.1364/oe.19.025944

[11] YIN Xiao-jie, WU Yuan-da, HU Xiong-wei.: CLEO Pacific Rim, Vol. 31(3) (2009). pp.978-979.

[12] Zhao Wei-qian, LIU Chao, Qiu Li-rong: Optics Express, Vol. 20(23) (2012) pp.25979-25989.

[13] Shifu Yuan, Nabeel A. Riza: Applied Optics, Vol. 38(15) (1999), pp.3214-3222.

[14] Qiuxin Zheng. Automatic assembly system for optical fiber collimator: china, CN202948214 [p]. 2013-05-22.
