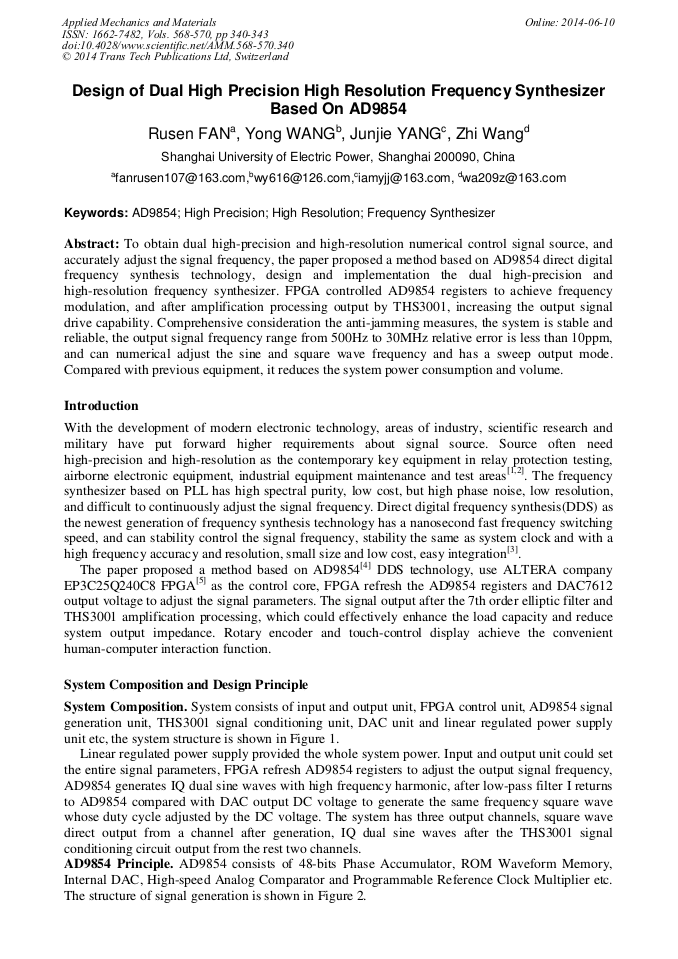

Design of Dual High Precision High Resolution Frequency Synthesizer Based on AD9854

Abstract:

To obtain dual high-precision and high-resolution numerical control signal source, and accurately adjust the signal frequency, the paper proposed a method based on AD9854 direct digital frequency synthesis technology, design and implementation the dual high-precision and high-resolution frequency synthesizer. FPGA controlled AD9854 registers to achieve frequency modulation, and after amplification processing output by THS3001, increasing the output signal drive capability. Comprehensive consideration the anti-jamming measures, the system is stable and reliable, the output signal frequency range from 500Hz to 30MHz relative error is less than 10ppm, and can numerical adjust the sine and square wave frequency and has a sweep output mode. Compared with previous equipment, it reduces the system power consumption and volume.

• Periodical: Applied Mechanics and Materials (Volumes 568-570)
• Pages: 340-343
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.568-570.340
• Online since: June 2014
• Authors: Ru Sen Fan, Yong Wang, Jun Jie Yang, Zhi Wang
• Keywords: AD9854, Frequency Synthesizer, High Precision, High Resolution

References

[1] N. P. Ligocki, A. Retterg. Towards a modular communication system for FPGA. Proc. Electron. Des, 2004: 71-76.

[2] Hongsen Xie, Peng Zhou, Haiying Zhang, Design and Implementation of a High Resolution Low Frequency High Power Signal Source, Instrument Technology, Vol. 7, pp.18-20, 2012(In Chinese).

[3] Lili Tang, Gang He, Xiaosen Wen, Design and Realization of Signal Generator Based on 89C51, Instrument Technique and Sensor, Vol. 2, pp.76-78, 2007(In Chinese).

[4] Analog Devices. Direct Digital Synthesis(DDS)-AD9854. USA: Analog Devices Company, (2006).

[5] M. Gavrick, R. Nicholson. FPGA considerations for automotive applications. Proc. SAE Conf, 2006: 1235-1236.

[6] Min Mao. Research on high precision square wave signal generator based on DDS", Master degree dissertation, Xi, an Electronic and Science University, 2007(In Chinese).

[7] J. Tierney, C. M. Rader, B. Cold. A digital frequency synthesizer. IEEE Trans Audio Eletronacoust, 2006, 19: 48-57.

DOI: 10.1109/tau.1971.1162151

[8] Dongfang Yang, Design of the Synthetic Function Signal Generator, Instrument Technique and Sensor, Vol. 6, pp.71-74, 2010(In Chinese).

[9] S. Fatima. M. Wooldridge. An Agent-based Framework for Multi-issue Negotiation. Artificial Intelligence. 2004, 52(1): 41-45.

[10] Yimu Liao. Research and Design of High Precision and High Resolution DDS, Master degree dissertation, Guangdong University of Technology, 2013(In Chinese).
