The Dynamic Simulation Study of WN Gear Pair after Coupling Tribology

Abstract:

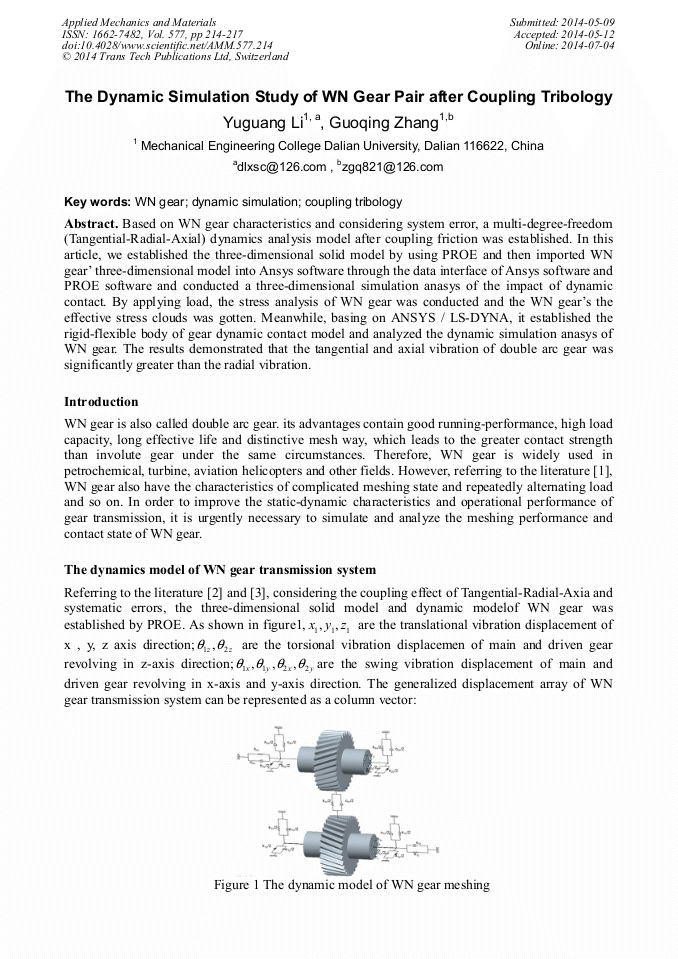

Based on WN gear characteristics and considering system error, a multi-degree-freedom (Tangential-Radial-Axial) dynamics analysis model after coupling friction was established. In this article, we established the three-dimensional solid model by using PROE and then imported WN gear’ three-dimensional model into Ansys software through the data interface of Ansys software and PROE software and conducted a three-dimensional simulation anasys of the impact of dynamic contact. By applying load, the stress analysis of WN gear was conducted and the WN gear’s the effective stress clouds was gotten. Meanwhile, basing on ANSYS / LS-DYNA, it established the rigid-flexible body of gear dynamic contact model and analyzed the dynamic simulation anasys of WN gear. The results demonstrated that the tangential and axial vibration of double arc gear was significantly greater than the radial vibration.

• Periodical: Applied Mechanics and Materials (Volume 577)
• Pages: 214-217
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.577.214
• Online since: July 2014
• Authors: Yu Guang Li*, Guo Qing Zhang
• Keywords: Coupling Tribology, Dynamic Simulation, WN Gear
