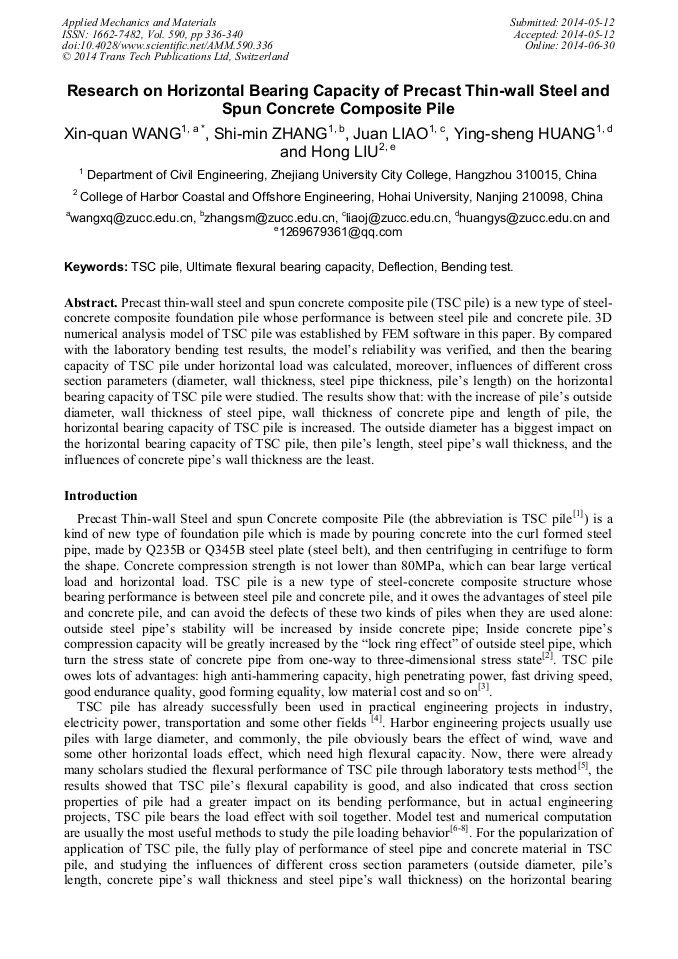

Research on Horizontal Bearing Capacity of Precast Thin-Wall Steel and Spun Concrete Composite Pile

Abstract:

Precast thin-wall steel and spun concrete composite pile (TSC pile) is a new type of steel-concrete composite foundation pile whose performance is between steel pile and concrete pile. 3D numerical analysis model of TSC pile was established by FEM software in this paper. By compared with the laboratory bending test results, the model’s reliability was verified, and then the bearing capacity of TSC pile under horizontal load was calculated, moreover, influences of different cross section parameters (diameter, wall thickness, steel pipe thickness, pile’s length) on the horizontal bearing capacity of TSC pile were studied. The results show that: with the increase of pile’s outside diameter, wall thickness of steel pipe, wall thickness of concrete pipe and length of pile, the horizontal bearing capacity of TSC pile is increased. The outside diameter has a biggest impact on the horizontal bearing capacity of TSC pile, then pile’s length, steel pipe’s wall thickness, and the influences of concrete pipe’s wall thickness are the least.

• Periodical: Applied Mechanics and Materials (Volume 590)
• Pages: 336-340
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.590.336
• Online since: June 2014
• Authors: Xin Quan Wang*, Shi Min Zhang, Juan Liao, Ying Sheng Huang, Hong Liu
• Keywords: Bending Test, Deflection, TSC Pile, Ultimate Flexural Bearing Capacity

References

[1] JG/T272-2010, Precast thin-wall steel and spun concrete composite pile [s]. Beijing: China Standards Press, 2010 (in Chinese).

[2] ZHUO Yang, CAO JIN-JIE, QIU Song, Flexural capacity of large-diameter thin-wall steel and spun concrete composite piles [J]. 2011. 10: 135-138 (in Chinese).

[3] LIN Zhiqing, Brief talk of applications of precast thin-wall steel and spun concrete composite pile (TSC pile) in engineering projects [J]. 2013. 11: 54-56 (in Chinese).

[4] WANG Hua-zhong, WANG Fa. Application and Advancement of Steel Tubular Pile in Baosteel Project [J]. Chinese Journal of Underground Space and Engineering, 2009, 5: 1696-1703(in Chinese).

[5] Song Hongzhao, Lu Liang. Experimental study on behavior of TSC pile subjected to pure bending [J]. Chinese Journal of Structural Engineers, 2011, 1: 146-150 (in Chinese).

[6] Liu Hanlong, Tan Huiming, Peng jie, Zhang Jianwei. Development of large scale pile foundation model test system [J]. Chinese Journal of Geotechnical Engineering, 2009, 31(3): 452-457. (in Chinese).

[7] Tan, Huiming, Gao, Zhibing, Huang, Yonglin. Calculation method of pile-supported geogrid-reinforced embankment based on elastic large deflection theory. 2011 International Conference on Electric Technology and Civil Engineering, ICETCE 2011-Proceedings，2011, 2974-2978.

DOI: 10.1109/icetce.2011.5775864

[8] Tan, H.M.; Liu, H.L. ; Deng, A. Numerical analyses on geogrid-reinforced cushion in pile-supported composite foundation . Geotechnical Engineering, 2009, 40(1), 25-30.
