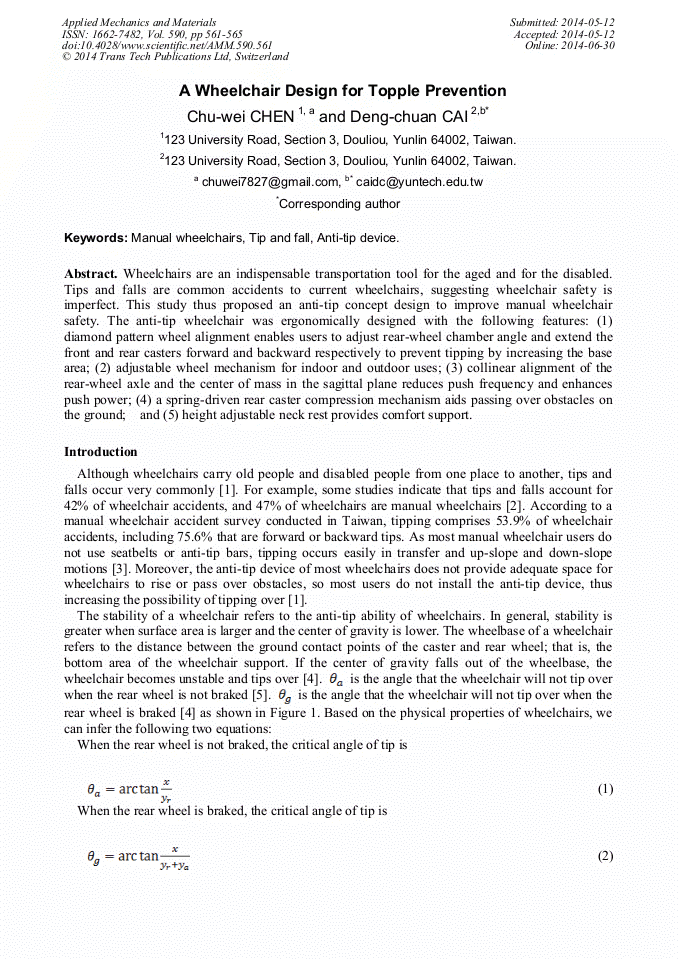

A Wheelchair Design for Topple Prevention

Abstract:

Wheelchairs are an indispensable transportation tool for the aged and for the disabled. Tips and falls are common accidents to current wheelchairs, suggesting wheelchair safety is imperfect. This study thus proposed an anti-tip concept design to improve manual wheelchair safety. The anti-tip wheelchair was ergonomically designed with the following features: (1) diamond pattern wheel alignment enables users to adjust rear-wheel chamber angle and extend the front and rear casters forward and backward respectively to prevent tipping by increasing the base area; (2) adjustable wheel mechanism for indoor and outdoor uses; (3) collinear alignment of the rear-wheel axle and the center of mass in the sagittal plane reduces push frequency and enhances push power; (4) a spring-driven rear caster compression mechanism aids passing over obstacles on the ground; and (5) height adjustable neck rest provides comfort support.

You might also be interested in these eBooks

Innovative Solutions in the Field of Engineering Sciences

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 590)

Pages:

561-565

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.590.561

Citation:

Cite this paper

Online since:

June 2014

Authors:

Chu Wei Chen, Deng Chuan Cai*

Keywords:

Anti-Tip Device, Fall, Manual Wheelchairs, Tip

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Kirby, R.L., Thoren, F., Ashton, B., Ackroyd-Stolarz, S.A., Effect of the position of rear antitippers on safety and maneuverability, Archives of Physical Medicine & Rehabilitation. 75 (1994) 525-34.

DOI: 10.1016/s0003-9993(21)01614-2

Google Scholar

[2] Gaal, R.P., Rebholtz, N., Hotchkiss, R.D., & Pfaelzer, P.F., Wheelchair rider injuries: causes and consequences for wheelchair design and selection, Journal of Rehabilitation Research and Development. 34 1 (1997) 58-71.

Google Scholar

[3] Chang, Chan-Chia, Wheelchair-related accidents: A retrospective study. (2009) 1-67.

Google Scholar

[4] Cooper, R.A., Stewart, K.J., & VanSickle, D.P., Evaluation of methods for determining rearward static stability of manual wheelchairs, Journal of Rehabilitation Research & Development. 31 2 (1994) 144-147.

Google Scholar

[5] Majaess, G.G., Kirby R.L., Ackroyd-Stolarz S.A., & Charlebois P.B., Influence of seat position on the static and dynamic forward and rear stability of occupied wheelchairs, Archives of Physical Medicine & Rehabilitation. 74 (1993) 977-982.

DOI: 10.1016/s0003-9993(96)90165-3

Google Scholar

[6] Tomlinson D.J., Managing Maneuverability and Rear Stability of Adjustable Manual Wheelchairs: An Update. Physical Therapy. 80 9 (2000) 904-911.

DOI: 10.1093/ptj/80.9.904

Google Scholar

[7] Sekiya, N., & Yamazaki, H., Biomechanics and motor control of normal young adults performing a wheelchair wheelie balance task, Perceptual and Motor Skills, 110 (2010) 825-839.

DOI: 10.2466/pms.110.3.825-839

Google Scholar

[8] Gaal, R.P., Rebholtz, N., Hotchkiss, R.D., & Pfaelzer, P.F., Wheelchair rider injuries: causes and consequences for wheelchair design and selection, Journal of Rehabilitation Research and Development. 34 1 (1997) 58-71.

Google Scholar

[9] Trudel, G., Kirby, R.L., Ackroyd-Stolarz, S.A., & Kirkland, S., Effects of rear-wheel camber on wheelchair stability, Archives of Physical Medicine & Rehabilitation. 78 1 (1997) 78-81.

DOI: 10.1016/s0003-9993(97)90014-9

Google Scholar

[10] Li, Yu-Sheng, anthropometric measurements of physical disabilities and dynamic capabilities. Taiwan architecture and Building Research Institute, Ministry of the Interior (2010).

Google Scholar

[11] Nelson, A., Ahmed, S., Harrow, J., Fitzgerald, S., Sanchez-Anguiano, A., & Gavin-Dreschnack, D., 2003, Fall-related fractures in persons with spinal cord impairment: a descriptive analysis, Sci Nursing. 20 1 (2003) 30-37.

DOI: 10.1097/00001786-200504000-00006

Google Scholar

[12] Glaser, R. M., Arm Exercise Training for Wheelchair Users. (1989).

Google Scholar

[13] Pentland, W. E., and Twomey, L. T., 1994, Upper Limb Function in Persons with Long Term Paraplegia and Implications forIndependence: Part I, " Paraplegia. 32 4 (1994) 211-218.

DOI: 10.1038/sc.1994.40

Google Scholar

[14] Boninger, M. L., Baldwin, M., Cooper, R. A., Koontz, A., & Chan, L., Manual wheelchair pushrim biomechanics and axle position, Archives of Physical Medicine and Rehabilitation. 81 (2000) 608-613.

DOI: 10.1016/s0003-9993(00)90043-1

Google Scholar
