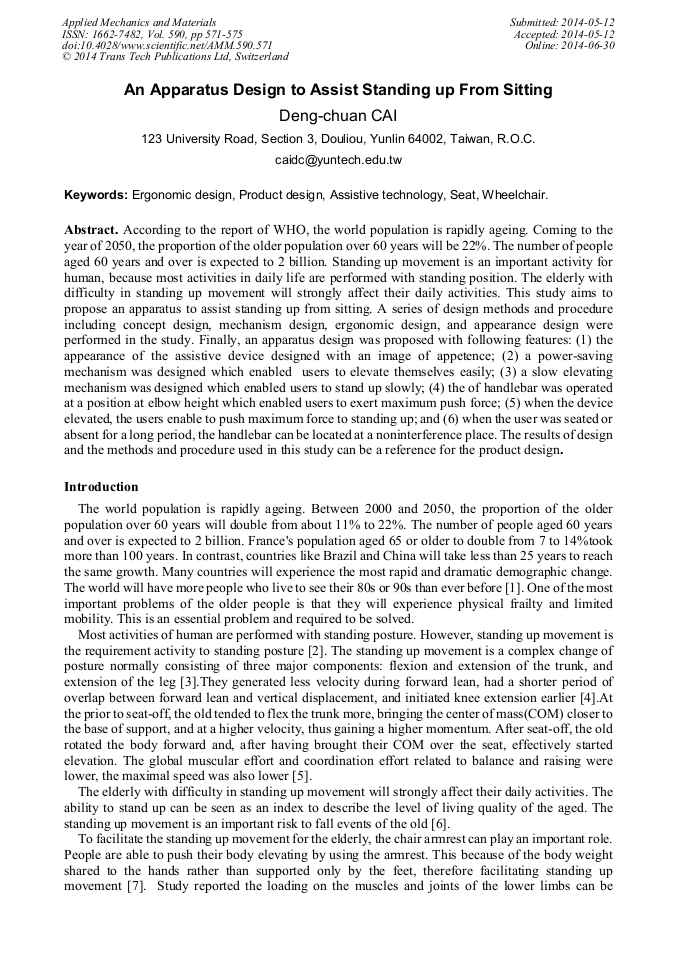

An Apparatus Design to Assist Standing Up from Sitting

Abstract:

According to the report of WHO, the world population is rapidly ageing. Coming to the year of 2050, the proportion of the older population over 60 years will be 22%. The number of people aged 60 years and over is expected to 2 billion. Standing up movement is an important activity for human, because most activities in daily life are performed with standing position. The elderly with difficulty in standing up movement will strongly affect their daily activities. This study aims to propose an apparatus to assist standing up from sitting. A series of design methods and procedure including concept design, mechanism design, ergonomic design, and appearance design were performed in the study. Finally, an apparatus design was proposed with following features: (1) the appearance of the assistive device designed with an image of appetence; (2) a power-saving mechanism was designed which enabled users to elevate themselves easily; (3) a slow elevating mechanism was designed which enabled users to stand up slowly; (4) the of handlebar was operated at a position at elbow height which enabled users to exert maximum push force; (5) when the device elevated, the users enable to push maximum force to standing up; and (6) when the user was seated or absent for a long period, the handlebar can be located at a noninterference place. The results of design and the methods and procedure used in this study can be a reference for the product design.

• Periodical: Applied Mechanics and Materials (Volume 590)
• Pages: 571-575
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.590.571
• Online since: June 2014
• Authors: Deng Chuan Cai*
• Keywords: Assistive Technology, Ergonomic Design, Product Design, Seat, Wheelchair

References

[1] WHO, http: /www. who. int/ageing/about/facts/en/ (2014).

[2] Kralj, A., Jaeger, R.J., &Munih, M., Analysis of Standing up and Sitting down in Humans: Definitions and Normative Date Presentation, Journal of Biomechanics. 23 11 (1990)1123-1138.

DOI: 10.1016/0021-9290(90)90005-n

[3] Janssen, W.G., Bussmann, J.B., Horemans, H.L., Stam, H.J., Analysis and decomposition of accelerometric signals of trunk and thigh obtained during the sit-to-stand movement, Medical and Biological Engineering and Computing , 43 2 (2005) 265-272.

DOI: 10.1007/bf02345965

[4] Kerr, K.M., White, J.A., Barr, D.A., Mollan, R.A.B., Analysis of the sit-stand-sit movement cycle in normal subjects, Clinical Biomechanics, 124(1997) 236-245.

DOI: 10.1016/s0268-0033(96)00077-0

[5] Papa, E., Cappozzo, A., Sit-to-stand motor strategies investigated in able-bodied young and elderly subjects, Journal of Biomechanics 33 (2000) 1113-1122.

DOI: 10.1016/s0021-9290(00)00046-4

[6] Hydmann, D., Ashburn, A., Stack, E., Fall events among people with stroke living in the community: Circumstances of falls and characteristics of fallers, Archives of Physical Medicine and Rehabilitation, 83 2 (2002) 165-170.

DOI: 10.1053/apmr.2002.28030

[7] Lundin, T.M., Jahnigen, D.W., & Grabiner, M.D., Maximum trunk flexion angle during the sit to stand is not determined by knee or trunk-hip extension strength in healthy older adults, Journal of Applied Biomechanics. 15 3 (1999) 223-241.

DOI: 10.1123/jab.15.3.233

[8] Kerr, K.M., White, J.A., Mollan, R.A.B., Baird, H.E., Rising from a Chair: A Review of the Literature, Physiotherapy, 771 (1991) 15-19.

DOI: 10.1016/s0031-9406(10)61663-x

[9] Kumar, S., Upper body push-pull strength of normal young adults in sagittal plane at three heights, International Journal of Industrial Ergonomics. 15 6 (1995) 427-436.

DOI: 10.1016/0169-8141(94)00062-8

[10] Herring, S., Hallbeck, M.S., The effects of distance and height on maximal isometric push and pull strength with reference to manual transmission truck drivers, International Journal of Industrial Ergonomics 37 8 (2007) 685-696.

DOI: 10.1016/j.ergon.2007.05.003

[11] Dewangan, K.N., Gogoi, G., Gorate, D.U., Isometric muscle strength of male agricultural workers of India and the design of tractor controls, International Journal of Industrial Ergonomics 40 5 (2010) 484-491.

DOI: 10.1016/j.ergon.2010.05.008

[12] Google Search, assistive devices to standing up, https: /www. google. com/search?hl=zh-TW&biw=1105&bih=602&tbm=isch&sa=1&q= assistive+ devices+to+standing+up&oq=assistive+devices+to+standing+up&gs_l=img. 3.. 153962. 154246. 0. 155582. 3. 3. 0. 0. 0. 0. 84. 144. 3. 3. 0.. 0.. 1c. 1. 41. img. 3. 0. 0. sGizylVI9JM (2014).

DOI: 10.3109/17483107.2013.807443
