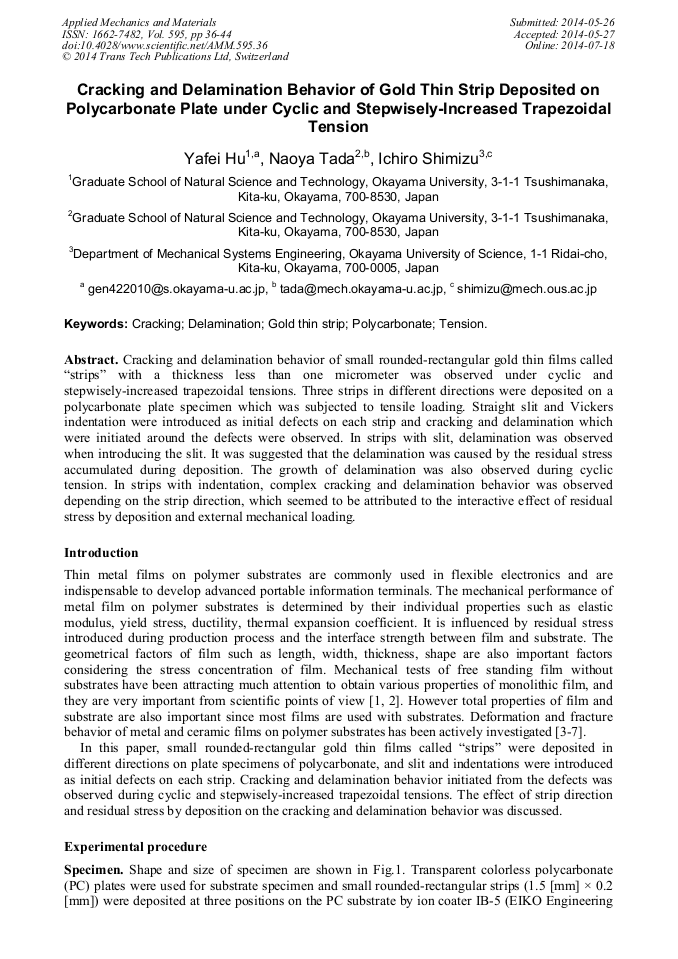

Cracking and Delamination Behavior of Gold Thin Strip Deposited on Polycarbonate Plate under Cyclic and Stepwisely-Increased Trapezoidal Tension

Ya Fei Hu; Naoya Tada; Ichiro Shimizu

doi:10.4028/www.scientific.net/AMM.595.36

Paper Titles

Preparation of Iodine Doped Titanium Dioxide to Degrade Aqueous Bisphenol A
p.14

The MMT/MCNTs/sPEEK Nanocomposite Membrane for Proton Exchange Membrane Fuel Cells
p.19

Effect of Sintering Temperature Curve in Wick Manufactured for Loop Heat Pipe with Flat Evaporator
p.24

Co-Producing Active Carbons and Sodium Silicate from Pyrolyzed Rice Husk by CO₂ Activation Coupled with NaOH Solution Boiling
p.30

Cracking and Delamination Behavior of Gold Thin Strip Deposited on Polycarbonate Plate under Cyclic and Stepwisely-Increased Trapezoidal Tension
p.36

Study on Unsteady Deformation Law in Roughing Stage of Continuous Hot Strip Rolling
p.45

Stimulated Dissociation of Complex Ions and Structural Relaxation in Molten Non-Equilibrium MgCl₂ and ZnCl₂
p.51

Examination of the Electrolytic Polishing Metal Probe for the Cell Trap by an Electric Field
p.56

Efficient PEGfusion Combinedoptical Tweezers and Dielectrophoresis
p.61

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 595Cracking and Delamination Behavior of Gold Thin...

Cracking and Delamination Behavior of Gold Thin Strip Deposited on Polycarbonate Plate under Cyclic and Stepwisely-Increased Trapezoidal Tension

Abstract:

Cracking and delamination behavior of small rounded-rectangular gold thin films called “strips” with a thickness less than one micrometer was observed under cyclic and stepwisely-increased trapezoidal tensions. Three strips in different directions were deposited on a polycarbonate plate specimen which was subjected to tensile loading. Straight slit and Vickers indentation were introduced as initial defects on each strip and cracking and delamination which were initiated around the defects were observed. In strips with slit, delamination was observed when introducing the slit. It was suggested that the delamination was caused by the residual stress accumulated during deposition. The growth of delamination was also observed during cyclic tension. In strips with indentation, complex cracking and delamination behavior was observed depending on the strip direction, which seemed to be attributed to the interactive effect of residual stress by deposition and external mechanical loading.
