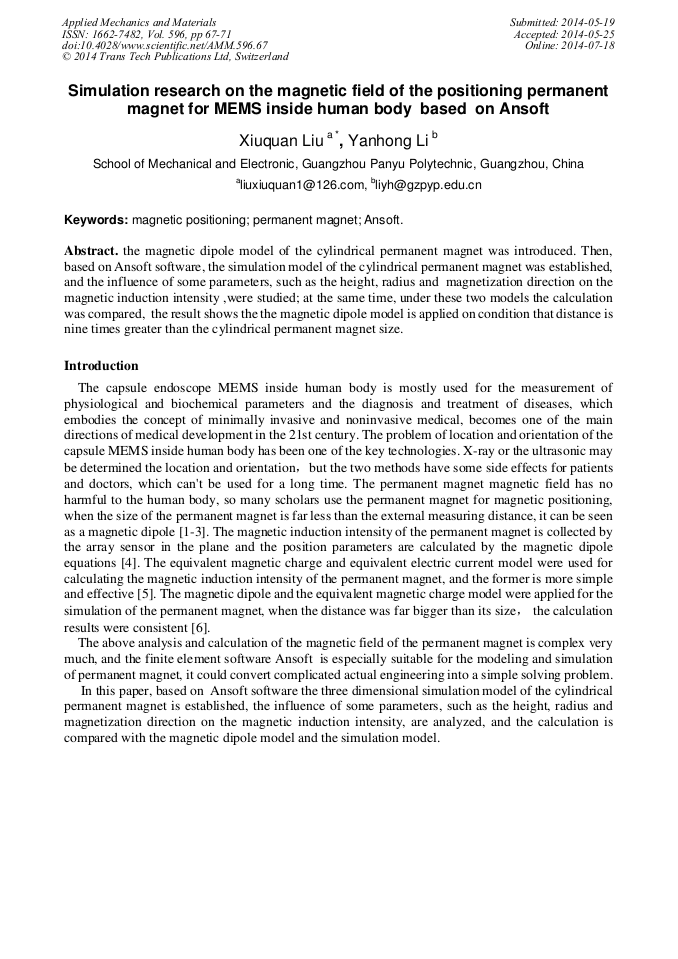

Simulation Research on the Magnetic Field of the Positioning Permanent Magnet for MEMS inside Human Body Based on Ansoft

Abstract:

the magnetic dipole model of the cylindrical permanent magnet was introduced. Then, based on Ansoft software, the simulation model of the cylindrical permanent magnet was established, and the influence of some parameters, such as the height, radius and magnetization direction on the magnetic induction intensity ,were studied; at the same time, under these two models the calculation was compared, the result shows the the magnetic dipole model is applied on condition that distance is nine times greater than the cylindrical permanent magnet size.

• Periodical: Applied Mechanics and Materials (Volume 596)
• Pages: 67-71
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.596.67
• Online since: July 2014
• Authors: Xiu Quan Liu*, Yan Hong Li
• Keywords: Ansoft, Magnetic Positioning, Permanent Magnet

References

[1] Chao Hu , Wanan Yang , Dongmei Chen , Max Q. -H. Meng , Houde Dai. An Improved Magnetic Localization and Orientation Algorithm for Wireless Capsule Endoscope[C]. 30th Annual International IEEE EMBS Conference, (2008). p.2055-(2058).

DOI: 10.1109/iembs.2008.4649596

[2] Johannessen, E. A., Wang, L., Cui, L., et al. Implementation of multichannel sensors for remote biomedical measurements in a microsystems format[C]. IEEE Transactions on Biomedical Engineering, (2004). pp.525-535.

DOI: 10.1109/tbme.2003.820370

[3] Wenhui, H., Guozheng, Y. Pingping, J, et al. High Technology Letters, 12( 2006), pp.255-259.

[4] Wang, X., Meng, M. Q. -H., Chan, Y. A low-cost tracking method based on magnetic marker for capsule endoscope[C]. in 2004 International Conference on Information Acquisition, ( 2004), pp.524-526.

DOI: 10.1109/icia.2004.1373426

[5] TANG Shuangqing , CHEN Xikun , TANG Bo. COLLEGE PHYSICS，24(2005), pp.32-36.

[6] LI Jin, ZHENG Xiao-lin, HOU Wen-sheng, HE Jin, FANG Xing. Journal of System Simulation，21(2009), pp.5919-5922 in Chinese.

[7] Zhang Wei，Theoretical and Experimental Study on Driving and Controlling a Capsule MEMs by an Outer Magnetic Field, edtied by School of Mechanical and Automotive Engineering, South China University of Technology, Guangzhou(2007) in Chinese.

[8] Zhao Bo, Zhang Hongliang. Ansoft 12 application in engineering field, edtied by China WaterPower Press (2010), in Chinese.
