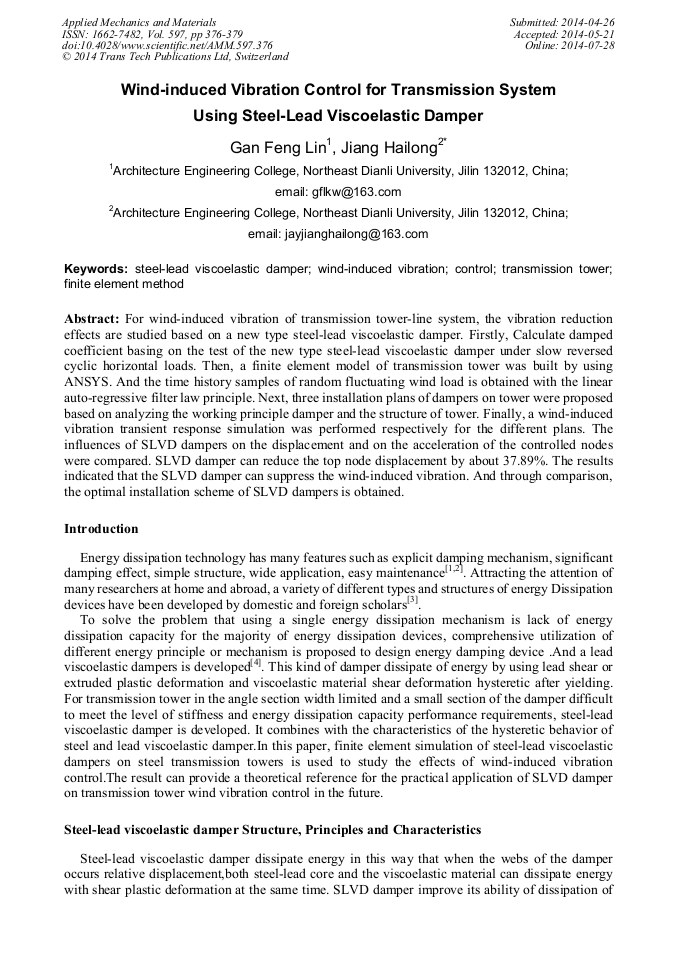

Wind-Induced Vibration Control for Transmission System Using Steel-Lead Viscoelastic Damper

Abstract:

For wind-induced vibration of transmission tower-line system, the vibration reduction effects are studied based on a new type steel-lead viscoelastic damper. Firstly, Calculate damped coefficient basing on the test of the new type steel-lead viscoelastic damper under slow reversed cyclic horizontal loads. Then, a finite element model of transmission tower was built by using ANSYS. And the time history samples of random fluctuating wind load is obtained with the linear auto-regressive filter law principle. Next, three installation plans of dampers on tower were proposed based on analyzing the working principle damper and the structure of tower. Finally, a wind-induced vibration transient response simulation was performed respectively for the different plans. The influences of SLVD dampers on the displacement and on the acceleration of the controlled nodes were compared. SLVD damper can reduce the top node displacement by about 37.89%. The results indicated that the SLVD damper can suppress the wind-induced vibration. And through comparison, the optimal installation scheme of SLVD dampers is obtained.

• Periodical: Applied Mechanics and Materials (Volume 597)
• Pages: 376-379
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.597.376
• Online since: July 2014
• Authors: Feng Lin Gan, Hai Long Jiang*
• Keywords: Control, Finite Element Method (FEM), Steel-Lead Viscoelastic Damper, transmission tower, Wind-Induced Vibration

References

[1] Soong T T, Dargush G F. Passive energy dissipation on systems in structure engineering [M]. New York: John Wiley & Sons. Inc., (1997).

[2] Pall A S, Marsh C. Friction-damped concrete shear walls [J]. ACI, 1981, 78(3): 187―193.

[3] Cherry S, Filiatrault A. Seismic response control of buildings using friction dampers [J]. Earthquake Spectra, 1993, 9(3): 447―466.

DOI: 10.1193/1.1585724

[4] Zhou Yun, Deng Xuesong, Xu Zhaodong. Experimental study on properties of lead-viscoelastic dampers [J]. Earthquake Engineering and Engineering Vibration, 2001, 21(1): 139―144.

[5] Zhong Wanli, Wu Yi, Wang Wei. Analysis on fluctuating wind induced vibration for high-voltage transmission line[J]. Electric Power, 2012, 45(7): 1-3.

[6] Liu Ming, Li Yonggao, Zhang Houqi. Safety analysis of typical transmission tower in geologic disaster zone[J]. Electric Power, 2012, 45(5): 39-43.

[7] Zhong Yin-hai, Li Li, Jiang Yi-cheng. Application of viscoelastic damper to control vibration response of transmission tower under wind[J]. Journal of Huazhong University of Science and Technology: Urban Science Edition, 2003, 20(2): 69-71.

[8] Kirekawa A, Ito Y, Asano K. Study of structural control using viscoelastic material[C]. Madrid, Spain: Proceedings of the Tenth World Conference on Earthquake Engineering, (1992).
