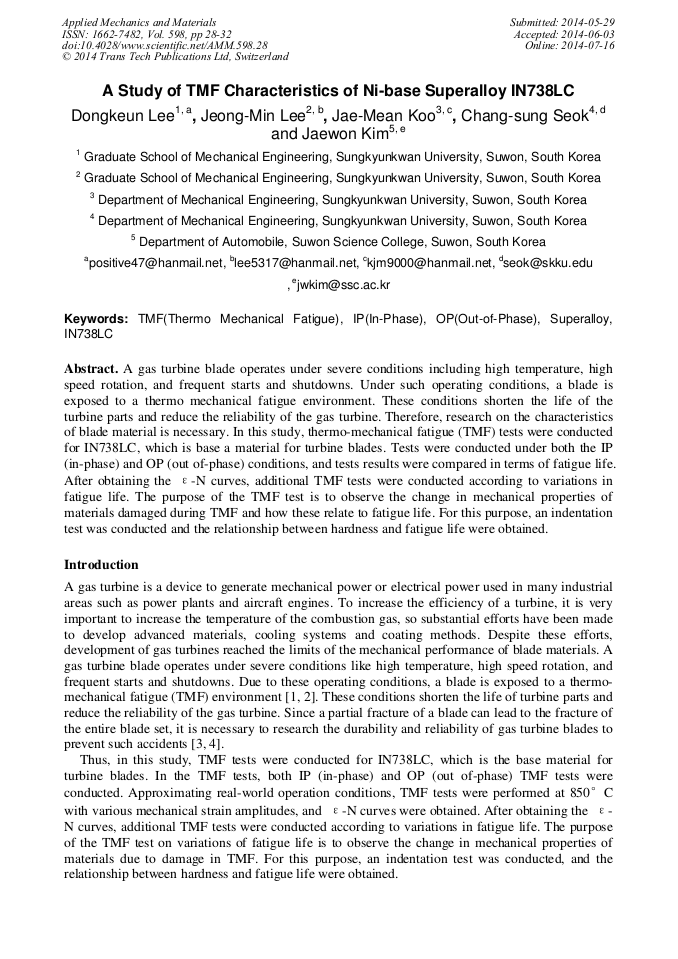

A Study of TMF Characteristics of Ni-Base Superalloy IN738LC

Abstract:

A gas turbine blade operates under severe conditions including high temperature, high speed rotation, and frequent starts and shutdowns. Under such operating conditions, a blade is exposed to a thermo mechanical fatigue environment. These conditions shorten the life of the turbine parts and reduce the reliability of the gas turbine. Therefore, research on the characteristics of blade material is necessary. In this study, thermo-mechanical fatigue (TMF) tests were conducted for IN738LC, which is base a material for turbine blades. Tests were conducted under both the IP (in-phase) and OP (out of-phase) conditions, and tests results were compared in terms of fatigue life. After obtaining the ε-N curves, additional TMF tests were conducted according to variations in fatigue life. The purpose of the TMF test is to observe the change in mechanical properties of materials damaged during TMF and how these relate to fatigue life. For this purpose, an indentation test was conducted and the relationship between hardness and fatigue life were obtained.

• Periodical: Applied Mechanics and Materials (Volume 598)
• Pages: 28-32
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.598.28
• Online since: July 2014
• Authors: Dong Keun Lee, Jeong Min Lee, Jae Mean Koo, Chang Sung Seok, Jae Won Kim
• Keywords: IN738LC, In-Phase (IP), Out-Of-Phase (OP), Superalloy, Thermo-Mechanical Fatigue (TMF)

References

[1] D. J Kim, in: The Estimation of Delamination Life of the Plasma-Sprayed Thermal Barrier Coating for Gas Turbine Blade, A doctoral dissertation of Sungkyunkwan Univ (2009).

[2] I.G. Wright, T.B. Gibbons, in: Recent developments in gas turbine materials and technology and their implications for syngas firing, International Journal of Hydrogen Energy, Vol. 32, pp.3610-3621 (2007).

DOI: 10.1016/j.ijhydene.2006.08.049

[3] Evans WJ, Screech JE, Williams SJ, in: Thermo-mechanical fatigue and fracture of INCO718, International Journal of Fatigue, Vol. 30, pp.257-267 (2008).

DOI: 10.1016/j.ijfatigue.2007.01.041

[4] Brooks JW, Bridges PJ, in: Metallurgical stability of inconel alloy 718, Superalloys, pp.33-42 (1988).

DOI: 10.7449/1988/superalloys_1988_33_42

[5] Standard Practice for Strain Controlled Thermo mechanical Fatigue Testing, ASTM-E2368, (2005).

[6] E. Fleury, J. S. Ha, in: Thermomechanical fatigue behaviour of nickel base superalloy IN738LC Part 2 – Lifetime prediction, Materials Science and Technology, Vol. 17, pp.1087-1092 (2001).

DOI: 10.1179/026708301101510997
