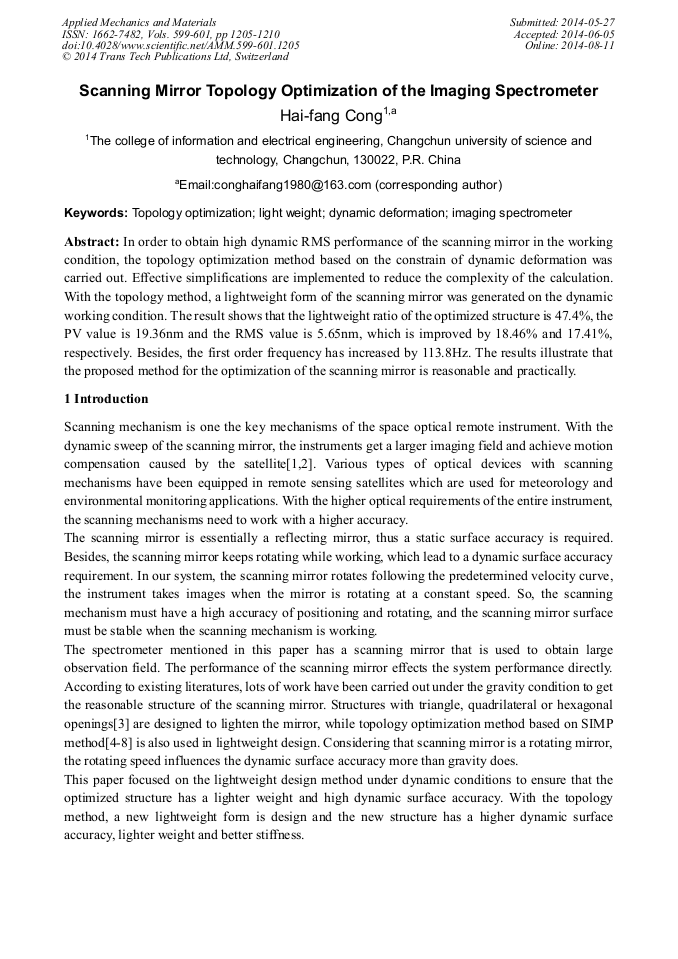

Scanning Mirror Topology Optimization of the Imaging Spectrometer

Abstract:

In order to obtain high dynamic RMS performance of the scanning mirror in the working condition, the topology optimization method based on the constrain of dynamic deformation was carried out. Effective simplifications are implemented to reduce the complexity of the calculation. With the topology method, a lightweight form of the scanning mirror was generated on the dynamic working condition. The result shows that the lightweight ratio of the optimized structure is 47.4%, the PV value is 19.36nm and the RMS value is 5.65nm, which is improved by 18.46% and 17.41%, respectively. Besides, the first order frequency has increased by 113.8Hz. The results illustrate that the proposed method for the optimization of the scanning mirror is reasonable and practically.

• Periodical: Applied Mechanics and Materials (Volumes 599-601)
• Pages: 1205-1210
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.599-601.1205
• Online since: August 2014
• Authors: Hai Fang Cong*
• Keywords: Dynamic Deformation, Imaging Spectrometer, Light Weight, Topology Optimization

References

[1] WANG Yi-qun, LIU Wei, YAN Chang-xiang, et al. Development of high-precision scanning mirror assembly of imaging spectrometer[J]. Optics and Precision Engineering, 2011, 19(11): 2703~2708.

DOI: 10.3788/ope.20111911.2703

[2] JIA Ying-hong, XU Shi-jie. Scan mirror motion compensation of geostationary satellite[J]. Journal of Beijing University of Aeronautics and Astronautics, 2007, 33(8): 873~877.

[3] YAN Yong, JIN Guang, YANG Hong-bo. Lightweight structural design of space mirror[J]. Infrared and Laser Engineering, 2008, 37(1): 97~101.

[4] LIU Xiu-min, HE Bin, SHA Wei, et al. Topological lightweight design of primary mirror in space camera[J]. Chinese Journal of Optics and Applied Optics, 2010, 3(3) : 239~245.

[5] Kang-Soo Park, Jun Ho Lee, Sung-Kie Youn. Lightweight mirror design method using topology optimization[J]. Optical Engineering, 2005, 44(5): 053002.

DOI: 10.1117/1.1901685

[6] SHA Wei, CHEN Chang-zheng, ZHANG Xing-xiang, et al. Topological lightweight design of space mirror[J]. Opto-Electronic Engineering, 2009, 36(4): 35~39.

[7] LIU Shu-tian, HU Rui, ZHOU Pinget al. Topologic optimization for configuration design of web-skin-type ground structure based large- aperture space mirror[J]. Optics and Precision Engineering, 2013, 21(7): 1803~1810.

DOI: 10.3788/ope.20132107.1803

[8] P.J. Brosens. Dynamic mirror distortions in optical scanning[J]. Applied Optics, 1972, 11(12): 2987~2989.

DOI: 10.1364/ao.11.002987

[9] MU Can-jun, ZHAO Ben-gang, WU Ya-ming. Study on dynamic deformations of high speed MEMS scanning micro-Mirror[J]. Chinese Journal of Sensors and Actuator, 2008, 21(4): 640~643.
