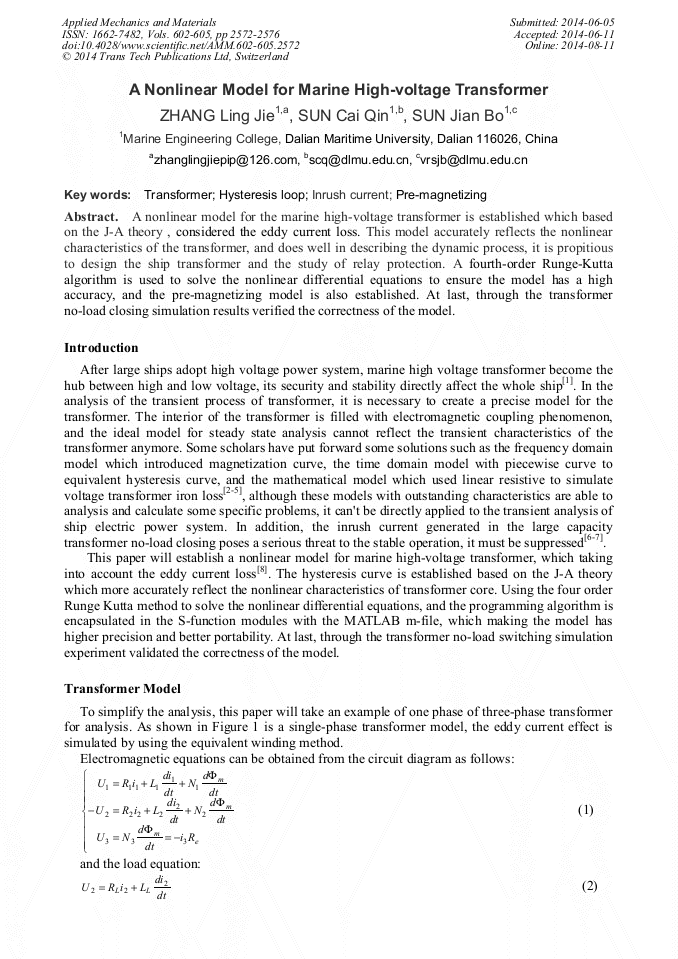

A Nonlinear Model for Marine High-Voltage Transformer

Abstract:

A nonlinear model for the marine high-voltage transformer is established which based on the J-A theory , considered the eddy current loss. This model accurately reflects the nonlinear characteristics of the transformer, and does well in describing the dynamic process, it is propitious to design the ship transformer and the study of relay protection. A fourth-order Runge-Kutta algorithm is used to solve the nonlinear differential equations to ensure the model has a high accuracy, and the pre-magnetizing model is also established. At last, through the transformer no-load closing simulation results verified the correctness of the model.

• Periodical: Applied Mechanics and Materials (Volumes 602-605)
• Pages: 2572-2576
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.602-605.2572
• Online since: August 2014
• Authors: Ling Jie Zhang*, Cai Qin Sun, Jian Bo Sun
• Keywords: Hysteresis Loop, Inrush Current, Pre-Magnetizing, Transformer

References

[1] Kingrey L J, Painter R, Locker A S. APPLYING HIGH RESISTANCE NEUTRAL GROUNDING IN MEDIUM VOLTAGE SYSTEMS[C]/Petroleum and Chemical Industry Conference(PCIC). San Antonio, TX: IEEE Xplore, 2010: 1-11.

DOI: 10.1109/pcic.2010.5666835

[2] XIE Xinyi, LIU Yancheng. Transient stability analysis of ship power station under large disturbance based on time domain simulation[J]. Journal of Dalian Maritime University, 2011, 37(4): 59-63.

[3] Xue Xiangdang, Guo Hui, Zheng Yunxiang, et al. A New Mehtod for Analyzing and Calculating the Specialities of Power Transformers under the Effects of GIC-Time Domain and Frequency Domain Method[J]. Transactions of China Electrontechnical Society, 2000, 15(2): 1-5. (in Chinese).

[4] Rran Quanrong, Wang Liang, Shi Wei. Nonlinear Transformer Model Considering Losses[J]. JOURNAL OF XI'AN JIAO TONG UNIVERSITY, 2006, 40(10): 1820-1827. (in Chinese).

[5] LI Yun-ge, SHI Wei. STUDY OF FUNDAMENTAL FERRORESONANCE ON NEUTRAL-GROUNDED SYSTEMS BY USING ANALYTICAL METHOD-CRITERION AND ELIMINATION[J]. Proceedings of the CSEE, 2003, 23(9): 141-145. (in Chinese).

[6] Abdulsalam S G, Xu W. A sequential phase energization method for transformer inrush current reduction-transient performance and practical considerations[J]. IEEE Transactions on Power Delivery, 2007, 22(1): 208-216.

DOI: 10.1109/tpwrd.2006.881450

[7] ZHANG Qi-bing, TAI Neng-ling, WANG Peng et al. Analysis of transformer pre-magnetizing in marine power system[J]. Power System Protection and Control, 2010, 38(18): 145-154. (in Chinese).

[8] HUANG Jun-jie, LI Xiao-ming. Nonlinear Transformer Model for Analysis of Transient Process[J]. TRANSFORMER, 2010, 47(6): 17-21. (in Chinese).
