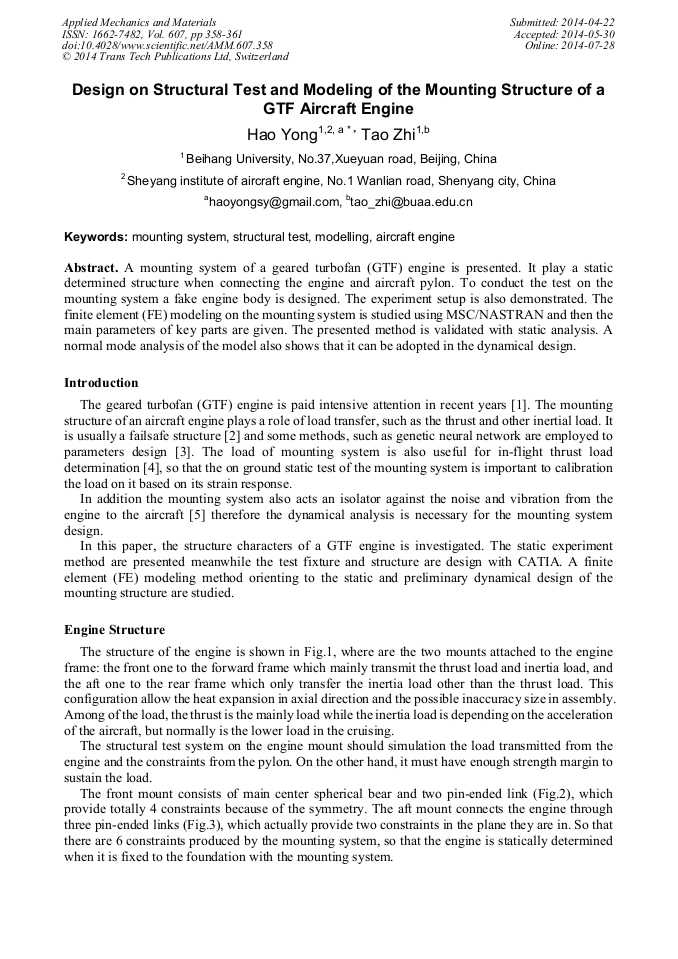

Design on Structural Test and Modeling of the Mounting Structure of a GTF Aircraft Engine

Abstract:

A mounting system of a geared turbofan (GTF) engine is presented. It play a static determined structure when connecting the engine and aircraft pylon. To conduct the test on the mounting system a fake engine body is designed. The experiment setup is also demonstrated. The finite element (FE) modeling on the mounting system is studied using MSC/NASTRAN and then the main parameters of key parts are given. The presented method is validated with static analysis. A normal mode analysis of the model also shows that it can be adopted in the dynamical design.

• Periodical: Applied Mechanics and Materials (Volume 607)
• Pages: 358-361
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.607.358
• Online since: July 2014
• Authors: Yong Hao*, Zhi Tao
• Keywords: Aircraft Engine, Modeling, Mounting System, Structural Test
