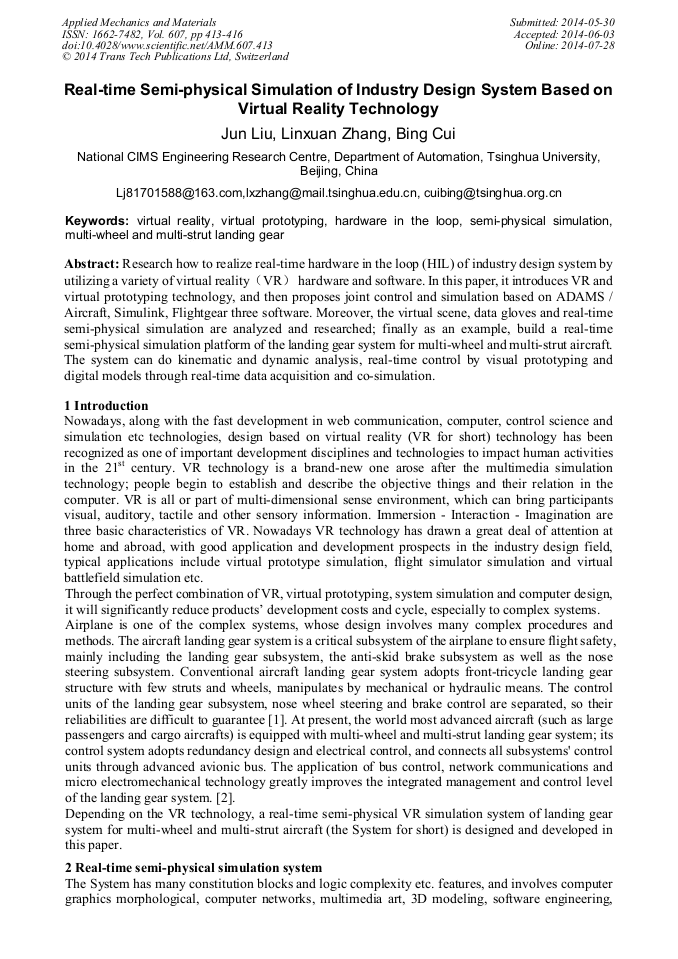

Real-Time Semi-Physical Simulation of Industry Design System Based on Virtual Reality Technology

Abstract:

Research how to realize real-time hardware in the loop (HIL) of industry design system by utilizing a variety of virtual reality (VR) hardware and software. In this paper, it introduces VR and virtual prototyping technology, and then proposes joint control and simulation based on ADAMS / Aircraft, Simulink, Flightgear three software. Moreover, the virtual scene, data gloves and real-time semi-physical simulation are analyzed and researched; finally as an example, build a real-time semi-physical simulation platform of the landing gear system for multi-wheel and multi-strut aircraft. The system can do kinematic and dynamic analysis, real-time control by visual prototyping and digital models through real-time data acquisition and co-simulation.
