Double-Acting Pneumatic-Hydraulic Pressure Amplifier Having Two-Step Liquid Pressure Output Pressure Driven by Pneumatic Cylinder with Rodless Piston

Abstract:

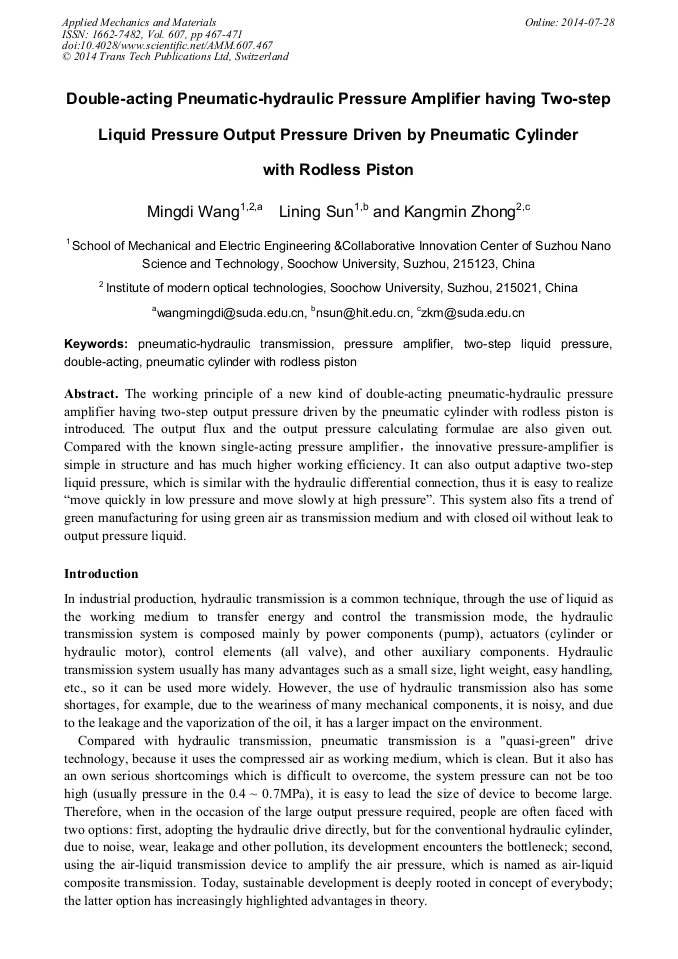

The working principle of a new kind of double-acting pneumatic-hydraulic pressure amplifier having two-step output pressure driven by the pneumatic cylinder with rodless piston is introduced. The output flux and the output pressure calculating formulae are also given out. Compared with the known single-acting pressure amplifier,the innovative pressure-amplifier is simple in structure and has much higher working efficiency. It can also output adaptive two-step liquid pressure, which is similar with the hydraulic differential connection, thus it is easy to realize move quickly in low pressure and move slowly at high pressure. This system also fits a trend of green manufacturing for using green air as transmission medium and with closed oil without leak to output pressure liquid.
