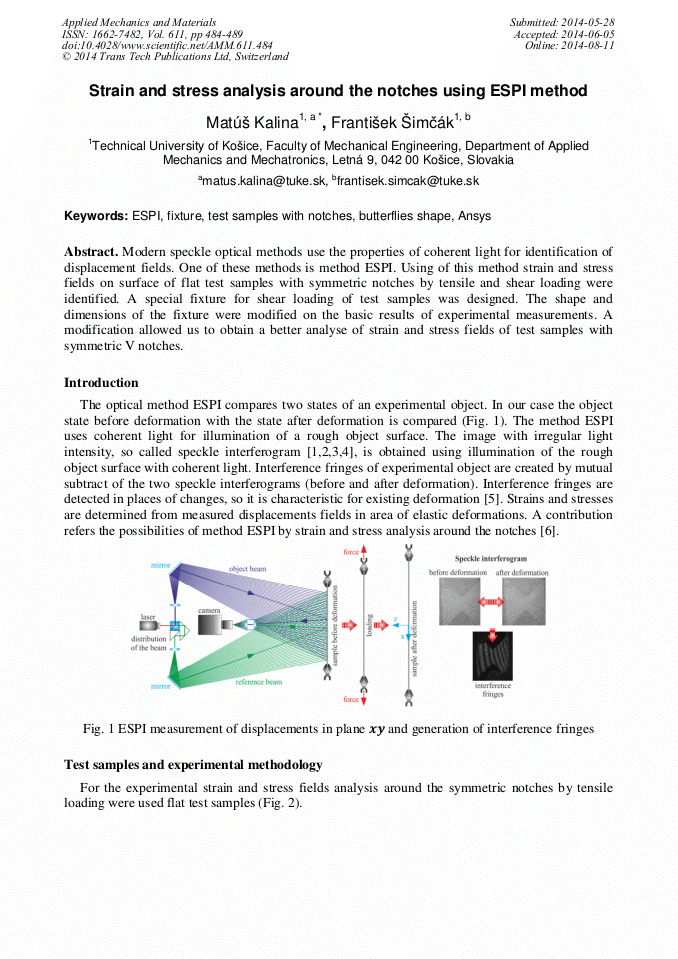

Strain and Stress Analysis around the Notches Using ESPI Method

Abstract:

Modern speckle optical methods use the properties of coherent light for identification of displacement fields. One of these methods is method ESPI. Using of this method strain and stress fields on surface of flat test samples with symmetric notches by tensile and shear loading were identified. A special fixture for shear loading of test samples was designed. The shape and dimensions of the fixture were modified on the basic results of experimental measurements. A modification allowed us to obtain a better analyse of strain and stress fields of test samples with symmetric V notches.

• Periodical: Applied Mechanics and Materials (Volume 611)
• Pages: 484-489
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.611.484
• Online since: August 2014
• Authors: Matúš Kalina*, František Šimčák
• Keywords: ANSYS, Butterflies Shape, ESPI, Fixture, Test Samples with Notches

References

[1] Martínez, A., Rayas, J., A., Cordero, R., Genovese, K., Analysis of optical configurations for ESPI, Optics and Lasers Engineering, Elsevier, (2008), 48-54.

DOI: 10.1016/j.optlaseng.2007.07.002

[2] Bhaduri, B., Mohan, N., K., Kothiyal, M., P., A dual- function ESPI system for the measurement of out-of-plane displacement and slope. Optics and Lasers in Engineering, (2006), 637-644.

DOI: 10.1016/j.optlaseng.2005.05.004

[3] Kennedy, D., M., Schauperl, Z., Greene, S., Application of ESPI-method for strain analysis in thin wall cylinders, Optics and Lasers in Engineering, Elsevier, (2004), 585-594.

DOI: 10.1016/s0143-8166(03)00015-0

[4] Georgas, P., J., Schajer, G., S., Modulo- 2pi phase determination from individual ESPI images. Optics and Lasers in Engineering, Elsevier, (2012), 1030-1035.

DOI: 10.1016/j.optlaseng.2012.03.005

[5] Xia, Y., Xiangyi, S., Qifeng, Y., Sihua, F., Direct ESPI phase estimating from only two interferograms. Optics communications, (2013), 63-68.

DOI: 10.1016/j.optcom.2012.10.060

[6] TREBUŇA, F., ŠIMČÁK, F.: Príručka experimentálnej mechaniky, Typopress, Košice, (2007).

[7] Šimčák, F., Kalina, M., Orečný, M., The Verification of Fixture for Shear Load with Optical Method ESPI, American Journal of Mechanical Engineering, 1 (2013) 180-184.

[8] COGNARD, J., Y. et al. A modified Arcan test to analyze the behavior of composites and their assemblies under out-of plane loadings. Composites part A, Applied Science and Manufacturing. 2011, 42. s. 111-121.

DOI: 10.1016/j.compositesa.2010.10.012

[9] Pucillo, G. P., Grasso, M., Penta, F., Pinto, P., On the mechanical characterization of materials by Arcan-type specimens, Science Direct, Engineering Fracture Mechanics, Volume 78, s. 1729-1741. (2011).

DOI: 10.1016/j.engfracmech.2011.02.002

[10] Information on http: /www. wyomingtestfixtures. com/products. html.
