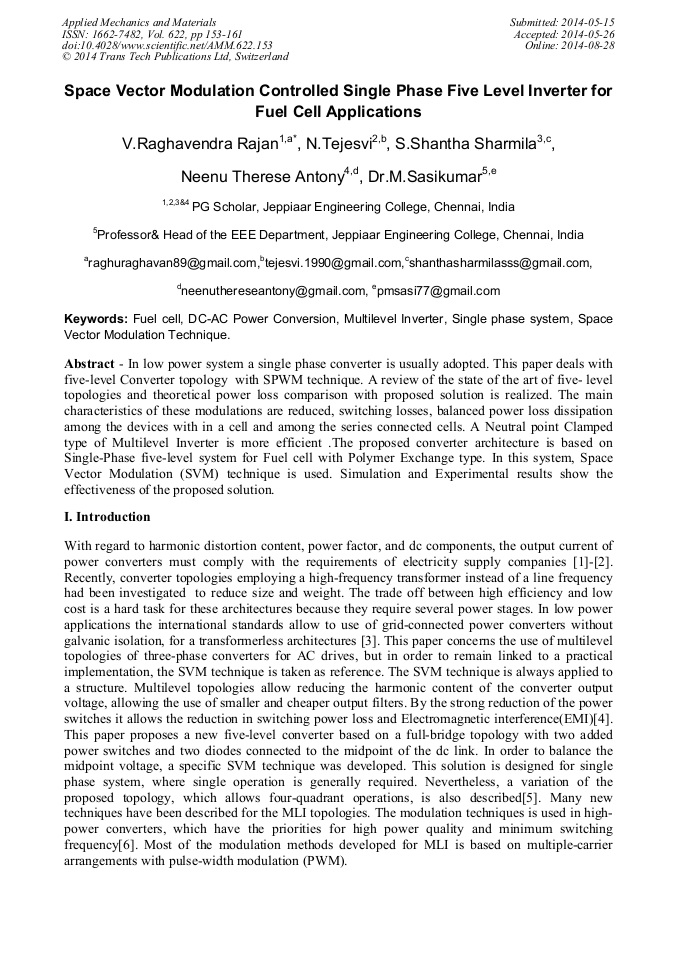

Space Vector Modulation Controlled Single Phase Five Level Inverter for Fuel Cell Applications

Abstract:

In low power system a single phase converter is usually adopted. This paper deals with five-level Converter topology with SPWM technique. A review of the state of the art of five-level topologies and theoretical power loss comparison with proposed solution is realized. The main characteristics of these modulations are reduced, switching losses, balanced power loss dissipation among the devices with in a cell and among the series connected cells. A Neutral point Clamped type of Multilevel Inverter is more efficient .The proposed converter architecture is based on Single-Phase five-level system for Fuel cell with Polymer Exchange type. In this system, Space Vector Modulation (SVM) technique is used. Simulation and Experimental results show the effectiveness of the proposed solution.

• Periodical: Applied Mechanics and Materials (Volume 622)
• Pages: 153-161
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.622.153
• Online since: August 2014
• Authors: Vijayaraghavan Raghavendra Rajan*, N. Tejesvi, S. Shantha Sharmila, Antony Neenu Therese, M. Sasikumar
• Keywords: DC-AC Power Conversion, Fuel Cell (FC), Multilevel Inverter (MLI), Single Phase System, Space Vector Modulation Technique

References

[1] D.Infield, P.Onions, A.Simmons and G.Smith, "Power quality from Multiple grid-connected Single phase inverters," IEEE Trans. Power Del., Vol. 19, No. 4, p.1983–1989, Oct. 2004.

DOI: 10.1109/tpwrd.2004.829950

[2] R.Gonzalez, E.Gubia, J.Lopez and L.Marroyo "Transformerless Single-phase Multilevel-based Photovoltaic inverter," IEEE Trans. Ind. Electron., vol. 55, No. 7, p.2694–2702, Jul. 2008.

DOI: 10.1109/tie.2008.924015

[3] S.Kouro, M.Malinowski, et.al, "Recent Advances and Industrial applications of Multilevel converters," IEEE Trans. Ind. Electron., Vol. 57, No. 8, p.2553–2580, Aug. 2010.

DOI: 10.1109/tie.2010.2049719

[4] J.S. Lai and F.Z. Peng, "Multilevel converters—A new breed of Power Converters," IEEE Trans. Ind. Appl., Vol. 32, No. 3, p.509–517, May 1996.

DOI: 10.1109/28.502161

[5] Z.Lemes, A.Vath and Th. Hartkopf Dynamic fuel cell models and their application in hardware in the loop simulation, Journal of Power Sources 154, 386–393,Aug. 2006.

DOI: 10.1016/j.jpowsour.2005.10.032

[6] F.P. Zeng, G.H. Tan and J.Z. Wangan "Novel Single phase five-level voltage-source inverter for the shunt active power filter," Power Electron., Vol. 3, No. 4, p.480–489, Jul. 2010.

DOI: 10.1049/iet-pel.2007.0395

[7] Dorin Neacsu, "A New Digital Controller for SVM Algoritm", IEEE, SCS '93, pp.256-259, Nov.1993 .

[8] Bowes, S.R.; Yen-Shin Lai, "The relationship between space-vector modulation and regular-sampled PWM", IEEE Trans. on Industrial Electronics, Vol. 44, No. 5 , pp.670-679.

DOI: 10.1109/41.633469

[9] Holmes, D.G "The significance of zero Space Vector placement for carrier based PWM schemes", Conf. Record of the IEEE IAS, Vol.3 , pp.2451-2458, Nov.1995.

DOI: 10.1109/ias.1995.530615

[10] C. Cecati, F. Ciancetta, and P. Siano "A Multilevel inverter for photovoltaic systems with fuzzy logic control," IEEE Trans. Ind. Electron., Vol. 57, No. 12, p.4115–4125, Dec. 2010.

DOI: 10.1109/tie.2010.2044119

[11] J.Leon, S.Vazquez, et.al "Feed forward SVM for single-phase Multilevel Cascaded Converters with any DC voltage ratio," IEEE Trans. Ind. Electron., Vol. 56, No. 2, p.315–325, Feb. 2009.

DOI: 10.1109/tie.2008.926777

[12] Z.Cheng and B.Wu, "A Novel switching sequence design for five-level NPC/H-bridge inverters with improved output voltage spectrum and minimized device switching frequency", IEEE Trans. Power Electron., Vol. 22, No. 6, p.2138–2145, Nov. 2007.

DOI: 10.1109/tpel.2007.909244

[13] P.T. Krein, R. Balog, Low Cost Inverter Suitable for Medium-Power Fuel Cell Sources, IEEE 0-7803-7262-X/02, 2002.

DOI: 10.1109/psec.2002.1023889
