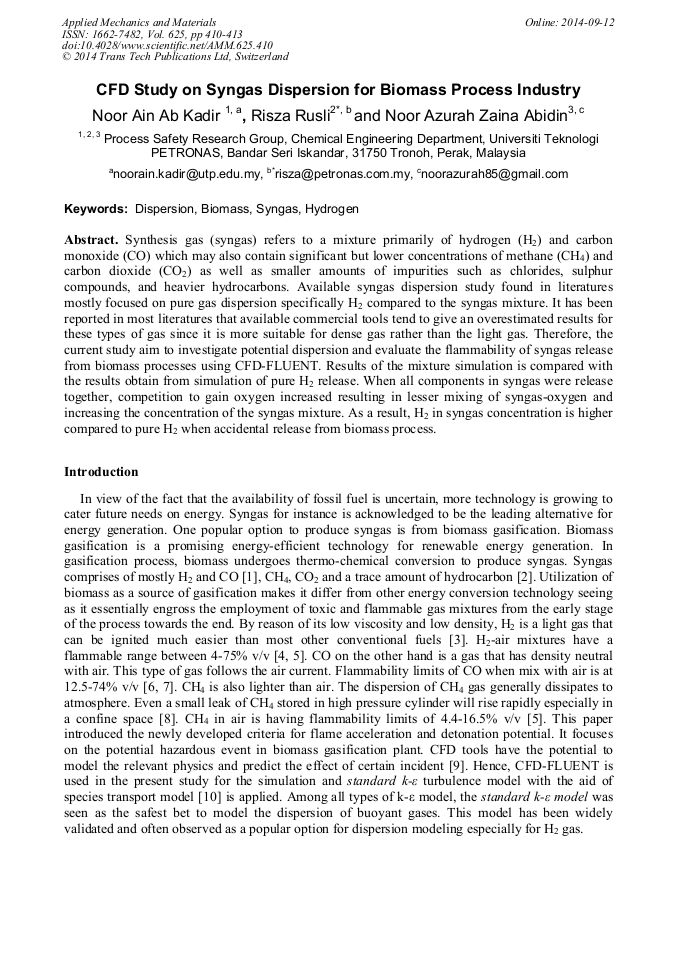

CFD Study on Syngas Dispersion for Biomass Process Industry

Abstract:

Synthesis gas (syngas) refers to a mixture primarily of hydrogen (H₂) and carbon monoxide (CO) which may also contain significant but lower concentrations of methane (CH₄) and carbon dioxide (CO₂) as well as smaller amounts of impurities such as chlorides, sulphur compounds, and heavier hydrocarbons. Available syngas dispersion study found in literatures mostly focused on pure gas dispersion specifically H₂ compared to the syngas mixture. It has been reported in most literatures that available commercial tools tend to give an overestimated results for these types of gas since it is more suitable for dense gas rather than the light gas. Therefore, the current study aim to investigate potential dispersion and evaluate the flammability of syngas release from biomass processes using CFD-FLUENT. Results of the mixture simulation is compared with the results obtain from simulation of pure H₂ release. When all components in syngas were release together, competition to gain oxygen increased resulting in lesser mixing of syngas-oxygen and increasing the concentration of the syngas mixture. As a result, H₂ in syngas concentration is higher compared to pure H₂ when accidental release from biomass process.

• Periodical: Applied Mechanics and Materials (Volume 625)
• Pages: 410-413
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.625.410
• Online since: September 2014
• Authors: Noor Ain Ab Kadir, Risza Rusli*, Noor Azurah Zaina Abidin
• Keywords: Biomass, Dispersion, Hydrogen, Syngas

References

[1] X. Yin, D.Y.C. Leung, J. Chang, J. Wang, Y. Fu, C. Wu (2005). Characteristics of the synthesis of methanol using biomass-derived syngas, Energy Fuels, 19 (1) (2005), p.305–310.

DOI: 10.1021/ef0498622

[2] Thaindian News, (2010). Three workers die in Brilon, Germany plant blast, http: /www. thaindian. com/newsportal/world/three-workers-die-in-brilon-germany-plant-blast_100315565. html, retrieved 28 May (2011).

[3] Jinyang Zheng, Haiyan Bie, Ping Xu, Pengfei Liu, Yongzhi Zhao, Honggang Chen, Xianxin Liu, Lei Zhao. (2011).

[4] Olvera AH, Choudhuri AR. (2006). Numerical simulation of H2 dispersion in the vicinity of a cubical building in stable stratified atmospheres. International Journal of H2 Energy 2006; 31(15): 2356-69.

DOI: 10.1016/j.ijhydene.2006.02.022

[5] Shirvill LC, Roberts P, Butler CJ, Roberts TA, Royle M. (2005) Characterization of the hazards from jet releases of H2. In 1st International conference on H2 safety, Piza Italy, September (2005).

[6] A.G. Venetsanos, T. Huld, P. Adams, J.G. Bartzis. (2003). Source, dispersion and combustion modelling of an accidental release of H2 in an urban environment. Journal of Hazardous Materials A105 (2003) 1-25.

DOI: 10.1016/j.jhazmat.2003.05.001

[7] J Würtz, J. G Bartzis, A. G Venetsanos, S Andronopoulos, J Statharas and R Nijsing, A dense vapour dispersion code package for applications in the chemical and process industry.J. Hazard. Mater., 46 (1996), p.273–284.

DOI: 10.1016/0304-3894(95)00078-x

[8] D.M. Prabhudharwadkar, K.N. Iyer, N. Mohan, S.S. Bajaj and S.G. Markandeya, Simulation of H2 distribution in an Indian reactor containment. Nucl Eng Des, 241(2011), p.832–842.

DOI: 10.1016/j.nucengdes.2010.11.012

[9] P. Middha, O.R. Hansen. Using computational fluid dynamics as a tool for H2 safety studies. J. Loss Prev. Proc. Ind., 22 (2009), p.295–302.

[10] Hwang JW, Yoon DY, Choi KH, Kim Y, Kim LH (2008), 3D CFD analysis of the H2 releases and dispersion around storage facilities, Korean J. Chem Eng. 25: 217-222.

DOI: 10.1007/s11814-008-0039-9

[11] P. Lv, Z. Yuan, C. Wu, L. Ma, Y. Chen, N. Tsubaki. Bio-syngas production from biomass catalytic gasification. Energy Convers. Manage., 48 (2007), p.1132–113.

DOI: 10.1016/j.enconman.2006.10.014

[12] Ganci F, Carpignano A, Mattei N, Carcassi MN. H2 release and atmospheric dispersion: Experimental studies and comparison with parametric simulations. Int J H2 Energy 2011 2; 36(3): 2445-54.

DOI: 10.1016/j.ijhydene.2010.04.006
