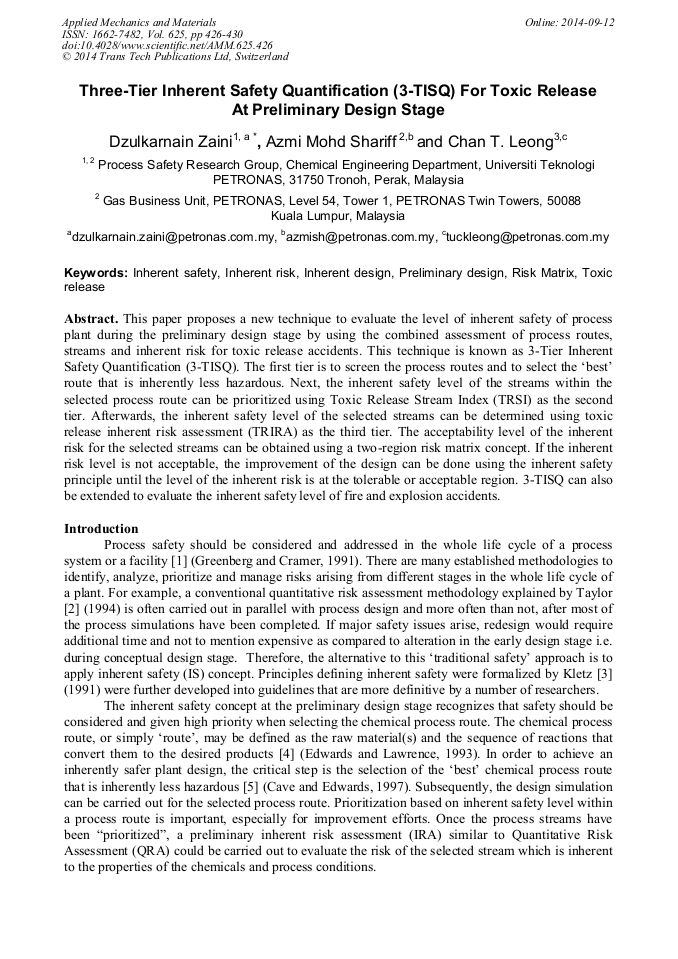

Three-Tier Inherent Safety Quantification (3-TISQ) for Toxic Release at Preliminary Design Stage

Abstract:

This paper proposes a new technique to evaluate the level of inherent safety of process plant during the preliminary design stage by using the combined assessment of process routes, streams and inherent risk for toxic release accidents. This technique is known as 3-Tier Inherent Safety Quantification (3-TISQ). The first tier is to screen the process routes and to select the ‘best’ route that is inherently less hazardous. Next, the inherent safety level of the streams within the selected process route can be prioritized using Toxic Release Stream Index (TRSI) as the second tier. Afterwards, the inherent safety level of the selected streams can be determined using toxic release inherent risk assessment (TRIRA) as the third tier. The acceptability level of the inherent risk for the selected streams can be obtained using a two-region risk matrix concept. If the inherent risk level is not acceptable, the improvement of the design can be done using the inherent safety principle until the level of the inherent risk is at the tolerable or acceptable region. 3-TISQ can also be extended to evaluate the inherent safety level of fire and explosion accidents.

• Periodical: Applied Mechanics and Materials (Volume 625)
• Pages: 426-430
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.625.426
• Online since: September 2014
• Authors: Dzulkarnain Zaini*, Mohd Shariff Azmi, Chan T. Leong
• Keywords: Inherent Design, Inherent Risk, Inherent Safety, Preliminary Design, Risk Matrix, Toxic Release

References

[1] Greenberg, H.H., Cramer, J.J., (1991) Risk Assessment and Risk Management for the Chemical Process Industries, Van Nostrand Reinhold, New York.

[2] Taylor, J. R, (1994) Risk Analysis for Process Plant, Pipelines and Transport, E&FN Spon, UK.

[3] Kletz, T.A., (1991) Plant Design for Safety - A User Friendly Approach, 2nd Ed, Butterworth Heinemann.

[4] Edwards, D. W., & Lawrence, D., (1993) Assessing the inherent safety of chemical process routes: is there a relation between plant costs and inherent safety? Process Safety and Environmental Protection 71, 252-258.

DOI: 10.1205/095758203770866557

[5] Cave, S.R. and Edwards, D.W., (1997) Chemical process routes selection based on assessment of inherent environmental hazard, Computers Chemical Engineering, 21: S965–S970.

DOI: 10.1016/s0098-1354(97)87627-2

[6] Leong, C.T., Shariff, A.M., (2009) Process Route Index (PRI) to assess level of explosiveness for inherent safety quantification, Journal of Loss Prevention in the Process Industries 22, 216–221.

DOI: 10.1016/j.jlp.2008.12.008

[7] Lawrence, D., (1996) Quantifying Inherent Safety of Chemical Process Route, Ph.D. Thesis, Loughborough University, Loughborough, UK.

[8] Heikkila, A. M, (1999) Inherent Safety in Process Plant Design, Ph.D. Thesis, Helsinki University of Technology, Espoo, Finland.

[9] Palaniappan C., (2002) Expert System for Design of Inherently Safer Chemical Processes, M. Eng. Thesis, National University of Singapore, Singapore.

[10] Shariff, A.M., Leong, C.T., Zaini, D., (2012) Using Process Stream Index (PSI) to assess Inherent Safety Level during preliminary design stage, Journal of Safety Science 50, 1098-1103.

DOI: 10.1016/j.ssci.2011.11.015

[11] Shariff, A.M., Zaini. D., (2013) Inherent risk assessment methodology in preliminary design stage: A case study for toxic release, Journal of Loss Prevention in the Process Industries 26, 605-613.

DOI: 10.1016/j.jlp.2012.12.003
