Molecular Simulation for Piperazinium Based ILs: Effects of Alkyl Chain, Concentration and Anions on Henry’s Constants

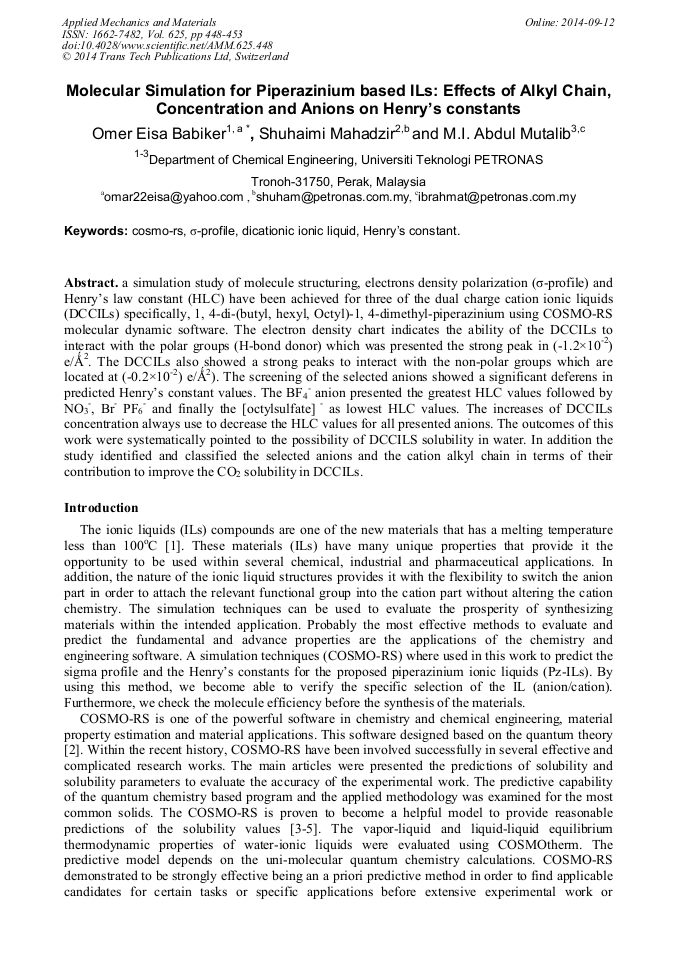

Article Preview

Abstract:

a simulation study of molecule structuring, electrons density polarization (σ-profile) and Henry’s law constant (HLC) have been achieved for three of the dual charge cation ionic liquids (DCCILs) specifically, 1, 4-di-(butyl, hexyl, Octyl)-1, 4-dimethyl-piperazinium using COSMO-RS molecular dynamic software. The electron density chart indicates the ability of the DCCILs to interact with the polar groups (H-bond donor) which was presented the strong peak in (-1.2×10^-2) e/Ǻ². The DCCILs also showed a strong peaks to interact with the non-polar groups which are located at (-0.2×10^-2) e/Ǻ²). The screening of the selected anions showed a significant deferens in predicted Henry’s constant values. The BF₄^- anion presented the greatest HLC values followed by NO₃^-, Br^- PF₆^- and finally the [octylsulfate]^- as lowest HLC values. The increases of DCCILs concentration always use to decrease the HLC values for all presented anions. The outcomes of this work were systematically pointed to the possibility of DCCILS solubility in water. In addition the study identified and classified the selected anions and the cation alkyl chain in terms of their contribution to improve the CO₂ solubility in DCCILs.

You might also be interested in these eBooks

Process and Advanced Materials Engineering

Info:

Periodical:

Applied Mechanics and Materials (Volume 625)

Pages:

448-453

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.625.448

Citation:

Cite this paper

Online since:

September 2014

Authors:

Omer Eisa Babiker*, Mahadzir Shuhaimi, Mohammed Ibrahim Abdul Mutalib

Keywords:

COSMO-RS, Dicationic Ionic Liquid, Henry’s Constant, σ-Profile

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] P. Wasserscheid and T. Welton, Ionic Liquids in Synthesis: Wiley, (2008).

[2] A. Klamt, COSMO-RS: From Quantum Chemistry to Fluid PhaseThermodynamics and Drug Design: Elsevier Science, (2005).

[3] M. G. Freire, et al., Solubility of water in fluorocarbons: Experimental and COSMO-RS prediction results, The Journal of Chemical Thermodynamics, vol. 42, pp.213-219, (2010).

DOI: 10.1016/j.jct.2009.08.005

[4] Y. A. Kholod, et al., Evaluation of the dependence of aqueous solubility of nitro compounds on temperature and salinity: A COSMO-RS simulation, Chemosphere, vol. 83, pp.287-294, (2011).

DOI: 10.1016/j.chemosphere.2010.12.065

[5] B. Schröder, et al., Prediction of aqueous solubilities of solid carboxylic acids with COSMO-RS, Fluid Phase Equilibria, vol. 289, pp.140-147, (2010).

DOI: 10.1016/j.fluid.2009.11.018

[6] M. G. Freire, et al., Evaluation of COSMO-RS for the prediction of LLE and VLE of water and ionic liquids binary systems, Fluid Phase Equilibria, vol. 268, pp.74-84, (2008).

DOI: 10.1016/j.fluid.2008.04.009

[7] M. G. Freire, et al., Evaluation of COSMO-RS for the prediction of LLE and VLE of alcohols  +  ionic liquids, Fluid Phase Equilibria, vol. 255, pp.167-178, (2007).

DOI: 10.1016/j.fluid.2007.04.020

[8] B. Schröder, et al., Prediction of environmental parameters of polycyclic aromatic hydrocarbons with COSMO-RS, Chemosphere, vol. 79, pp.821-829, (2010).

DOI: 10.1016/j.chemosphere.2010.02.059

[9] Z. Lei, et al., COSMO-RS modeling on the extraction of stimulant drugs from urine sample by the double actions of supercritical carbon dioxide and ionic liquid, Chemical Engineering Science, vol. 62, pp.3940-3950, (2007).

DOI: 10.1016/j.ces.2007.04.021

[10] K. Z. Sumon and A. Henni, Ionic liquids for CO2 capture using COSMO-RS: Effect of structure, properties and molecular interactions on solubility and selectivity, Fluid Phase Equilibria, vol. 310, pp.39-55, (2011).

DOI: 10.1016/j.fluid.2011.06.038

[11] A. Klamt, et al., Prediction or partition coefficients and activity coefficients of two branched compounds using COSMOtherm, Fluid Phase Equilibria, vol. 285, pp.15-18, (2009).

DOI: 10.1016/j.fluid.2009.05.010

[12] R. Franke, et al., Accurate pre-calculation of limiting activity coefficients by COSMO-RS with molecular-class based parameterization, Fluid Phase Equilibria, vol. 340, pp.11-14, (2013).

DOI: 10.1016/j.fluid.2012.11.016

[13] F. Eckert and A. Klamt, Fast solvent screening via quantum chemistry: COSMO-RS approach, AIChE Journal, vol. 48, pp.369-385, (2002).

DOI: 10.1002/aic.690480220

[14] F. Eckert, COSMOtherm Users Manual Ver s ion C2. 1 Release 01. 11 ed. Leverkusen, Germany COSMOlogic GmbH & Co KG 1999-(2010).

[15] Y. Marechal, The Hydrogen Bond and the Water Molecule: The Physics and Chemistry of Water, Aqueous and Bio-Media: Elsevier Science, (2006).
