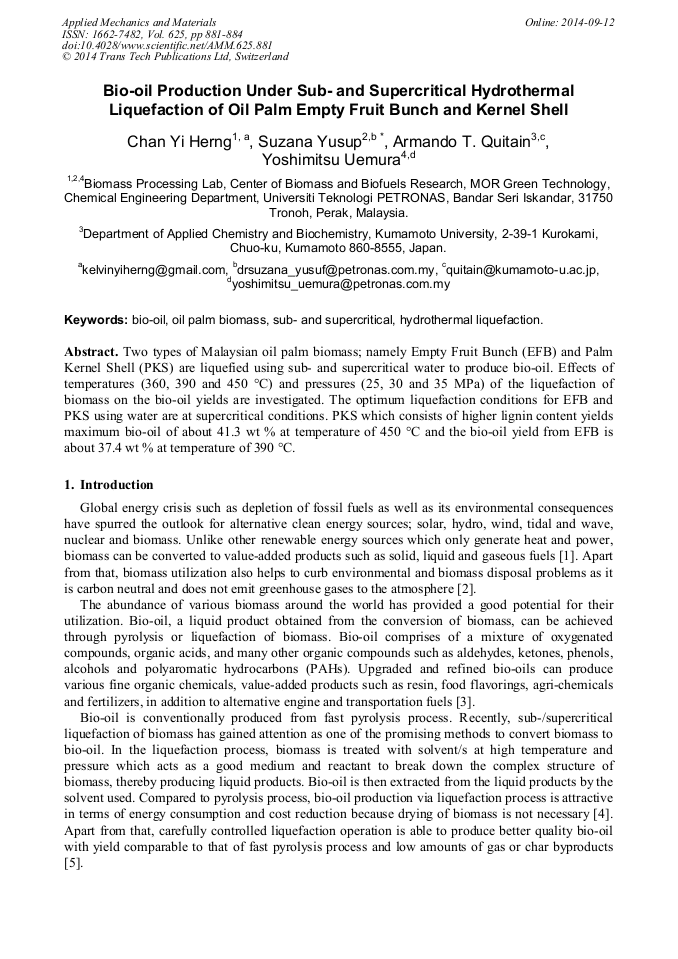

Bio-Oil Production under Sub- and Supercritical Hydrothermal Liquefaction of Oil Palm Empty Fruit Bunch and Kernel Shell

Abstract:

Two types of Malaysian oil palm biomass; namely Empty Fruit Bunch (EFB) and Palm Kernel Shell (PKS) are liquefied using sub-and supercritical water to produce bio-oil. Effects of temperatures (360, 390 and 450 °C) and pressures (25, 30 and 35 MPa) of the liquefaction of biomass on the bio-oil yields are investigated. The optimum liquefaction conditions for EFB and PKS using water are at supercritical conditions. PKS which consists of higher lignin content yields maximum bio-oil of about 41.3 wt % at temperature of 450 °C and the bio-oil yield from EFB is about 37.4 wt % at temperature of 390 °C.

• Periodical: Applied Mechanics and Materials (Volume 625)
• Pages: 881-884
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.625.881
• Online since: September 2014
• Authors: Yi Herng Chan, Suzana Yusup*, Armando T. Quitain, Yoshimitsu Uemura
• Keywords: Bio-Oil, Hydrothermal Liquefaction, Oil Palm Biomass, Sub Critical, Supercritical

References

[1] M.H. Nilsen, E. Antonakou, A. Bouzga, A. Lappas, K. Mathisen, M. Stöcker, Investigation of the effect of metal sites in the Me-Al-MCM-41 (Me = Fe, Cu or Zn) on the catalytic behavior during the pyrolysis of wooden based biomass, Microporous and Mesoporous Materials. 105 (2007).

DOI: 10.1016/j.micromeso.2007.05.059

[2] W. Chang, H. Qinglan, L. Dingqiang, J. Qingzhu, X. Bo, Production of Light Aromatic Hydrocarbon from Biomass by Catalytic Pyrolysis, Chinese Journal of Catalysis. 29(9) (2008) 907-912.

[3] M. Crocker (Ed. ), Thermochemical Conversion of Biomass to Liquid Fuels and Chemicals, The Royal Society of Chemistry, United Kingdom, (2010).

[4] Y. Qian, C. Zuo, J. Tan, J. He, Structural analysis of bio-oils from sub- and supercritical water liquefaction of woody biomass, Energy. 32 (2007) 196-202.

DOI: 10.1016/j.energy.2006.03.027

[5] J. Akhtar, S.K. Kuang, N.A.S. Amin, Liquefaction of empty palm fruit bunch (EPFB) in alkaline hot compressed water, Renewable Energy. 35 (2010) 1220-1227.

DOI: 10.1016/j.renene.2009.10.003

[6] K.M. Sabil, M.A. Aziz, B. Lal, Y. Uemura, Effects of torrefaction on the physiochemical properties of oil palm empty fruit bunches, mesocarp fiber and kernel shell, Biomass and Bioenergy. 56 (2013) 351-360.

DOI: 10.1016/j.biombioe.2013.05.015

[7] S.S. Toor, L. Rosendahl, A. Rudolf, Hydrothermal liquefaction of biomass: A review of subcritical water technologies, Energy. 36 (2011) 2328-2342.

DOI: 10.1016/j.energy.2011.03.013

[8] H. Zhou, Y.Q. Long, A.H. Meng, Q.H. Li, Y.G. Zhang, The pyrolysis simulation of five biomass species by hemi-cellulose, cellulose and lignin based on thermogravimetric curves, Thermochimica Acta. 566 (2013) 36-43.

DOI: 10.1016/j.tca.2013.04.040

[9] H. Mazaheri, K.T. Lee, S. Bhatia, A.R. Mohamed, Sub/supercritical liquefaction of oil palm fruit press fiber for the production of bio-oil: Effect of solvents, Bioresource Technology. 101 (2010) 7641-7647.

DOI: 10.1016/j.biortech.2010.04.072

[10] J. Akhtar and N.A.S. Amin, A review on process conditions for optimum bio-oil yield in hydrothermal liquefaction of biomass, Renewable and Sustainable Energy Reviews. 15 (2011) 1615-1624.

DOI: 10.1016/j.rser.2010.11.054
