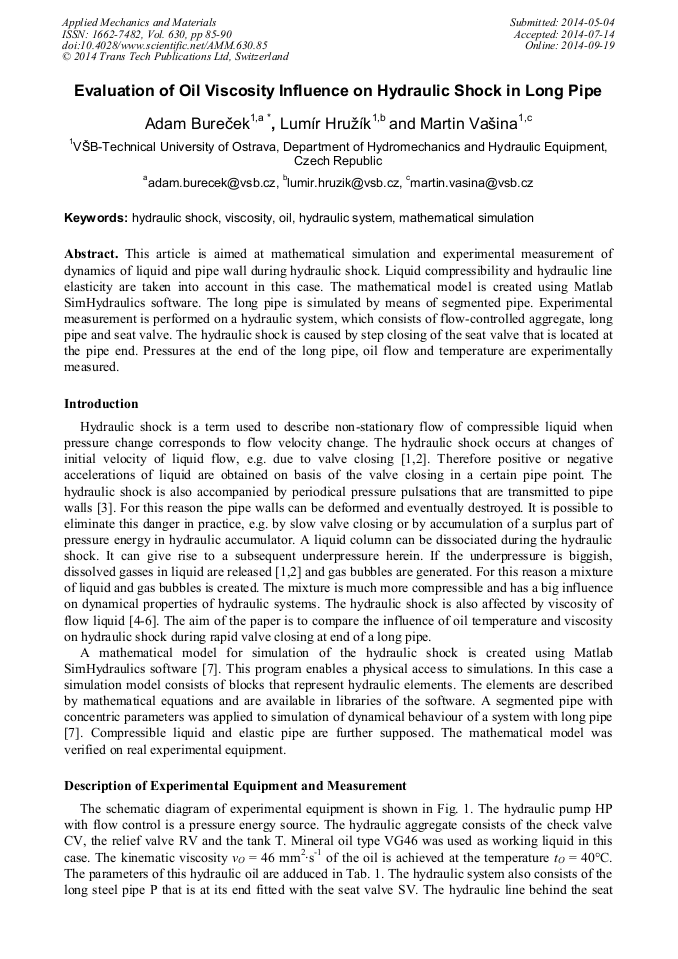

Evaluation of Oil Viscosity Influence on Hydraulic Shock in Long Pipe

Abstract:

This article is aimed at mathematical simulation and experimental measurement of dynamics of liquid and pipe wall during hydraulic shock. Liquid compressibility and hydraulic line elasticity are taken into account in this case. The mathematical model is created using Matlab SimHydraulics software. The long pipe is simulated by means of segmented pipe. Experimental measurement is performed on a hydraulic system, which consists of flow-controlled aggregate, long pipe and seat valve. The hydraulic shock is caused by step closing of the seat valve that is located at the pipe end. Pressures at the end of the long pipe, oil flow and temperature are experimentally measured.

• Periodical: Applied Mechanics and Materials (Volume 630)
• Pages: 85-90
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.630.85
• Online since: September 2014
• Authors: Adam Bureček*, Lumír Hružík, Martin Vašina
• Keywords: Hydraulic Shock, Hydraulic System, Mathematical Simulation, Oil, Viscosity

References

[1] D. Himr, Numerical Simulation of Water Hammer in Low Pressurized Pipe: Comparison of SimHydraulics and Lax-Wendroff Method with Experiment, EPJ Web of Conferences, 45 (2013) 01037.

DOI: 10.1051/epjconf/20134501037

[2] J. Jablonská, Compressibility of the fluid, EPJ Web of Conferences, 67 (2014) 02048.

DOI: 10.1051/epjconf/20146702048

[3] L. Hružík, A. Bureček, M. Vašina, Non-stationary Flow of Hydraulic Oil in Long Pipe, EPJ Web of Conferences, 67 (2014) 02042.

DOI: 10.1051/epjconf/20146702042

[4] D. Ducoulombier, H. Zhou, C. Boned, et al, Pressure (1-1000 bars) and temperature (20-100-degrees-c) dependence of the viscosity of liquid hydrocarbons, Journal of Physical Chemistry, 90 (1986) 1692-1700.

DOI: 10.1021/j100399a047

[5] H. Rodriguez, J.F. Brennecke, Temperature and composition dependence of the density and viscosity of binary mixtures of water plus ionic liquid, Journal of Chemical and Engineering Data, 51 (2006) 2145-2155.

DOI: 10.1021/je0602824

[6] B. Mokhtarani, A. Sharifi, H.R. Mortaheb, et al, Density and viscosity of pyridinium-based ionic liquids and their binary mixtures with water at several temperatures, Journal of Chemical Thermodynamics, 41 (2009) 323-329.

DOI: 10.1016/j.jct.2008.09.001

[7] The MathWorks, Matlab Simulink User´s Guide, SimHydraulics User´s Guide, USA, (2007).

[8] Hydrotechnik GmbH, (catalogue papers).
