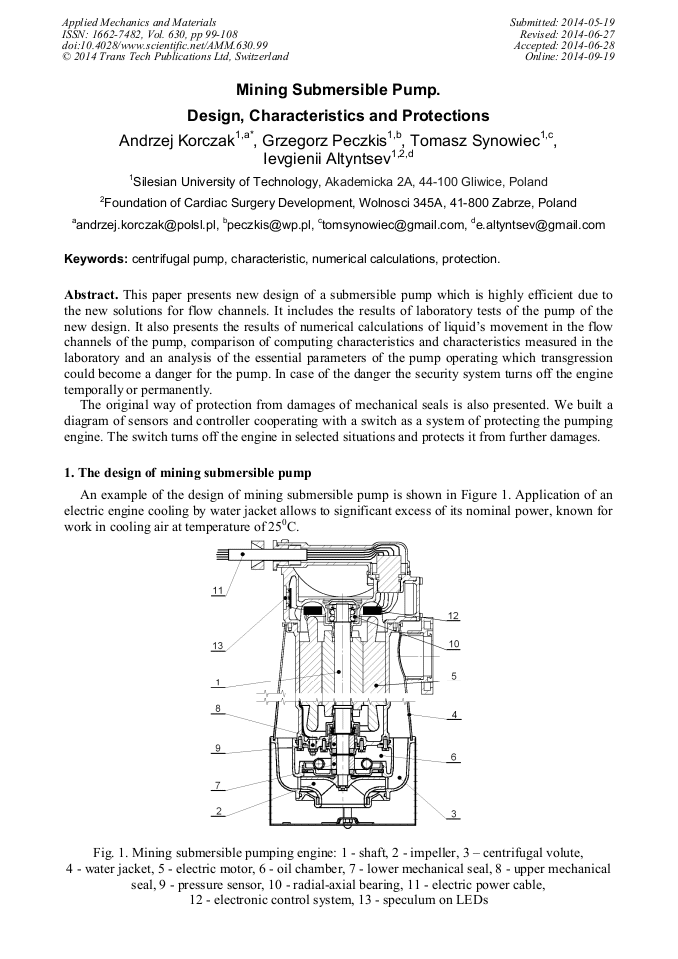

Mining Submersible Pump - Design, Characteristics and Protections

Abstract:

This paper presents new construction of a submersible pump which is highly efficient due to the new solutions for flow channels. It includes the results of laboratory tests of the pump of the new construction. It also presents the results of numerical calculations of liquid’s movement in the flow channels of the pump, comparison of computing characteristics and characteristics measured in the laboratory.and an analysis of the essential parameters of the pump’s work which transgression could become a danger for the pump. In case of the danger the security system turns off the engine temporally or permanently.

• Periodical: Applied Mechanics and Materials (Volume 630)
• Pages: 99-108
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.630.99
• Online since: September 2014
• Authors: Andrzej Korczak*, Grzegorz Peczkis, Tomasz Synowiec, Ievgenii Altyntsev
• Keywords: Centrifugal Pump, Characteristic, Numerical Calculations, Protection

References

[1] Korczak A., Rudzki E., Wroblewski A., Swierk J, Pump impeller, Polish patent No. 198013, 02. 02. (2001).

[2] Korczak A., Synowiec T., Centrifugal pump with a triple spiral impeller. Polish patent. No. 394070, 01. 03. (2011).

[3] Korczak A., Synowiec T., Security monoblock centrifugal pump seal damage from the effects of the slide. Polish patent. No. 402809, 18. 02. (2013).

[4] Igor J. Karassik, Joseph P. Messina, Paul Heald Charles Cooper, Pump Handbook, McGraw Hill Professional, New York, 3rd ed., (2000).

[5] Łazarkiewicz Sz., Troskolański A. T., Centrifugal pumps, WNT, Warsaw.

[6] BURGMANN Dichtungswerke GmbH & Co. KG., Mechanical Seals Design Manual 15. 2., Wolfrathausen.

[7] Korczak A., Rokita J., Pumps and pumping systems, Silesian University of Technology Publisher Script No 1967, Ed. III, Gliwice, (1997).

[8] Component seal range, AESSEAL, (2008).
