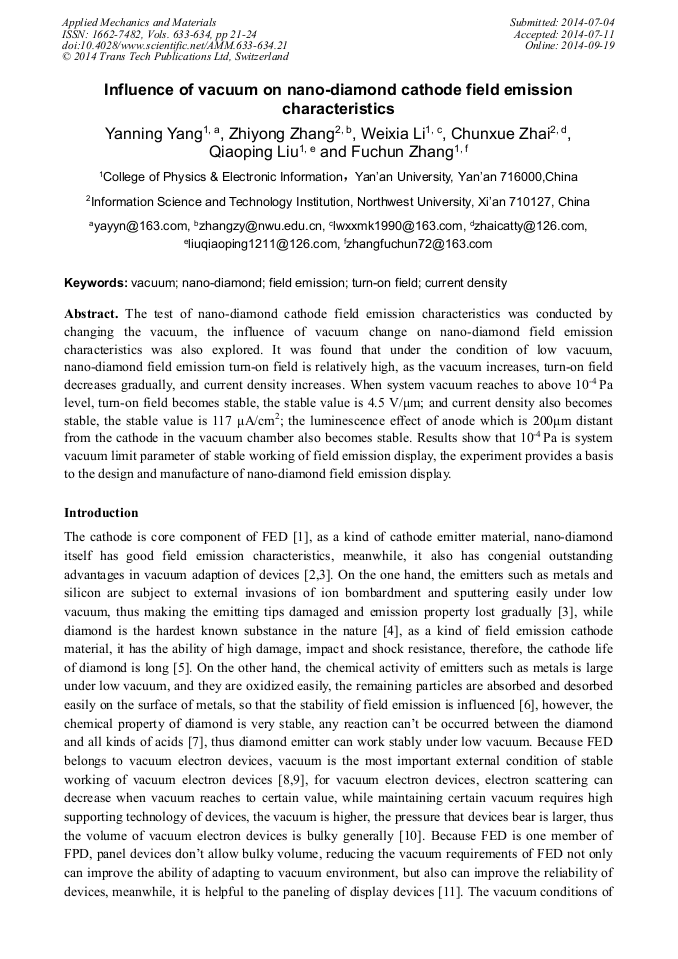

Influence of Vacuum on Nano-Diamond Cathode Field Emission Characteristics

Abstract:

The test of nano-diamond cathode field emission characteristics was conducted by changing the vacuum, the influence of vacuum change on nano-diamond field emission characteristics was also explored. It was found that under the condition of low vacuum, nano-diamond field emission turn-on field is relatively high, as the vacuum increases, turn-on field decreases gradually, and current density increases. When system vacuum reaches to above 10^-4 Pa level, turn-on field becomes stable, the stable value is 4.5 V/μm; and current density also becomes stable, the stable value is 117 μA/cm²; the luminescence effect of anode which is 200μm distant from the cathode in the vacuum chamber also becomes stable. Results show that 10^-4 Pa is system vacuum limit parameter of stable working of field emission display, the experiment provides a basis to the design and manufacture of nano-diamond field emission display.

• Periodical: Applied Mechanics and Materials (Volumes 633-634)
• Pages: 21-24
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.633-634.21
• Online since: September 2014
• Authors: Yan Ning Yang, Zhi Yong Zhang, Wei Xia Li, Chun Xue Zhai, Qiao Ping Liu, Fu Chun Zhang
• Keywords: Current Density, Field Emission, Nanodiamond, Turn-on Field, Vacuum

References

[1] Huangzhong Yu, and Junbiao Peng: Materials Review Vol. 19 (2005), p.88 In Chinese.

[2] Chunxue Zhai: Investigation on structure and property of nano-diamond coating field emission cathode (ph.D., Northwest University, China 2008), p.4 In Chinese.

[3] Yanning Zhang: Study on key technologies of nano-diamond composite coating field emission (ph.D., Northwest University, China 2010), p.94 In Chinese.

[4] Weidong Man, Jianhua Wang, Chuanxin Wang, et al: New Carbon Materials Vol. 17 (2002), p.62 In Chinese.

[5] Givargizov, E. I., et al: Crystallography Reports Vol. 47 (2002), p.159.

[6] Xiaoyan Li: Investigation on the preparation and properties of Ti-based nano-diamond coating field emission cathode (MS., Northwest University, China 2008), P. 13 In Chinese.

[7] Yanyang Zhang: Investigation on the preparation of nano-diamond field emission cathode by electrophoretic deposition (MS., Northwest University, China 2009), p.65 In Chinese.

[8] Fursey, G. N.: Applied Surface Science Vol. 215 (2003), p.113.

[9] Parker, Robert K., et al: Microwave Theory and Techniques, IEEE Transactions on Vol. 50 (2002), p.835.

[10] Tyler, Talmage, Olga A. Shenderova and Gary E. McGuire: Journal of Vacuum Science & Technology Vol. 23 (2005), p.1260.

[11] Wei Zhang: Vacuum Electronics Vol. 1 (2012), p.21 In Chinese.
