The Strength Analysis of the Turbine Blade Based on Finite Element Method Calculation and Optimization

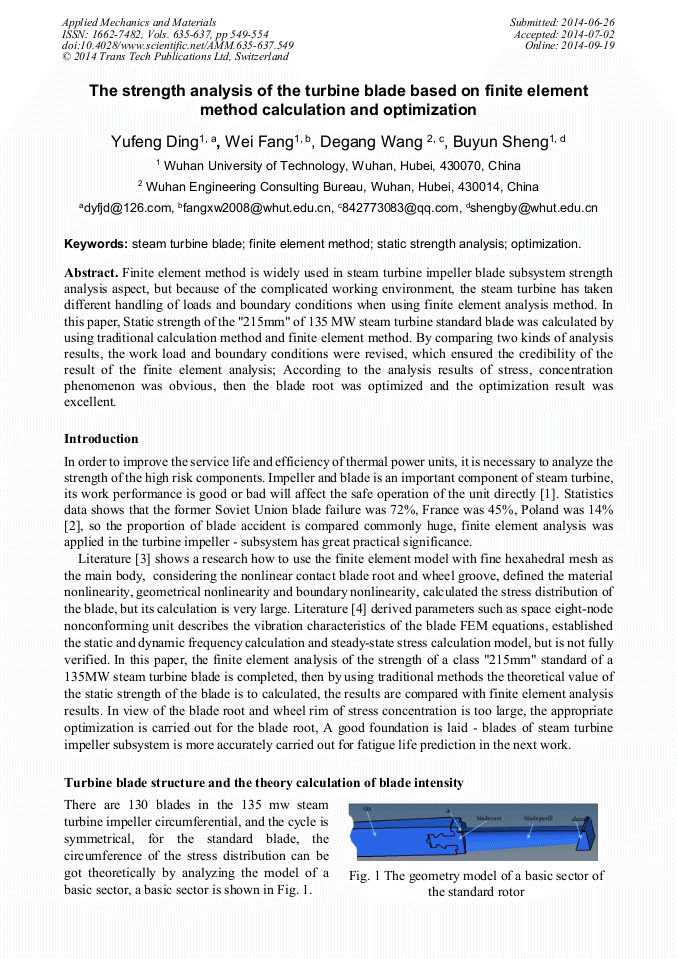

Article Preview

Abstract:

Finite element method is widely used in steam turbine impeller blade subsystem strength analysis aspect, but because of the complicated working environment, the steam turbine has taken different handling of loads and boundary conditions when using finite element analysis method. In this paper, Static strength of the "215mm" of 135 MW steam turbine standard blade was calculated by using traditional calculation method and finite element method. By comparing two kinds of analysis results, the work load and boundary conditions were revised, which ensured the credibility of the result of the finite element analysis; According to the analysis results of stress, concentration phenomenon was obvious, then the blade root was optimized and the optimization result was excellent.
