Design and Analysis of a Tow Truck’s Lifting Organ

Abstract:

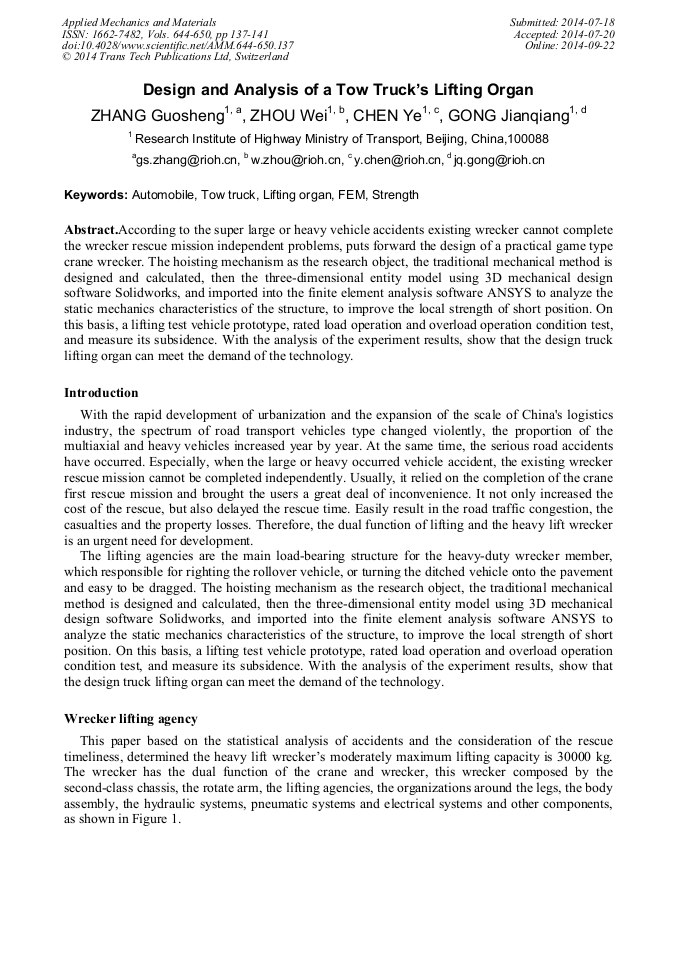

According to the super large or heavy vehicle accidents existing wrecker cannot complete the wrecker rescue mission independent problems, puts forward the design of a practical game type crane wrecker. The hoisting mechanism as the research object, the traditional mechanical method is designed and calculated, then the three-dimensional entity model using 3D mechanical design software Solidworks, and imported into the finite element analysis software ANSYS to analyze the static mechanics characteristics of the structure, to improve the local strength of short position. On this basis, a lifting test vehicle prototype, rated load operation and overload operation condition test, and measure its subsidence. With the analysis of the experiment results, show that the design truck lifting organ can meet the demand of the technology.
