Research on Main Drive System Vibration of Six-Roller Wide Strip Aluminum Cold Rolling Mill

Abstract:

Vibration appears in the main drive system of the six-roller cold rolling mill of one plant. The oscillation frequency is 2.5 Hz. The oscillation cycle is 0.4 second. The oscillation period has nothing to do with the speed. Using the finite element software ANSYS, the low natural frequency is got through the modal analysis and harmonic response analysis based on the measured vibration data from the field. Horizontal vibration is the main vibration mode and it is the electromechanical coupling vibration. Main motor is controlled by IEGT inverter of TEMIC and the low frequency harmonic component is difficult to eliminate. AC drive trap filter is designed to dodge the 2.5 Hz frequency. The solution has achieved the recognition by the TEMIC company. The problem was solved and good results were obtained.

You might also be interested in these eBooks

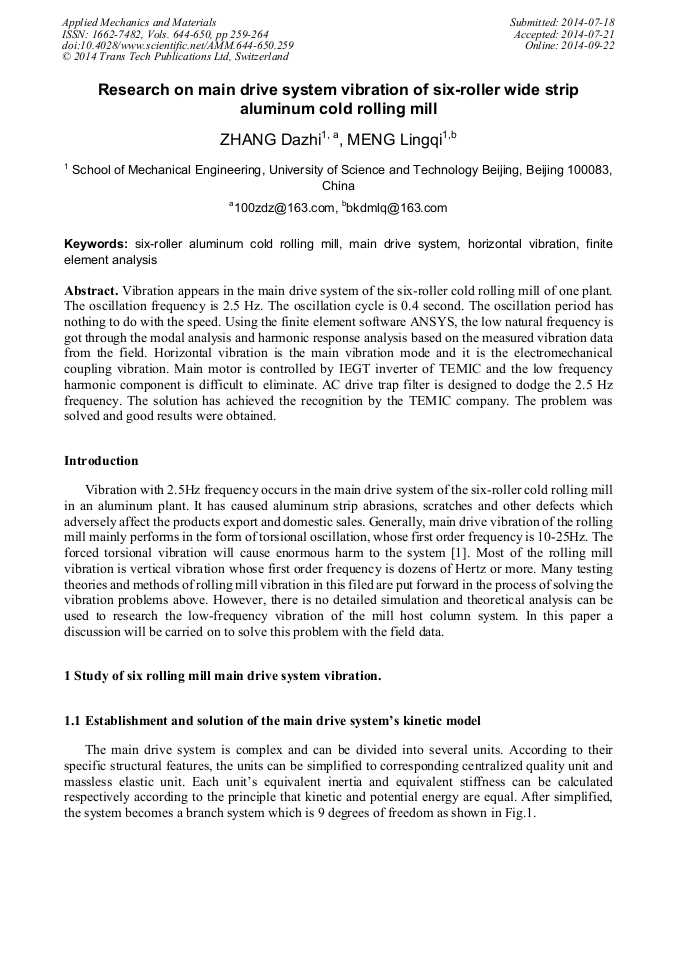

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 644-650)

Pages:

259-264

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.644-650.259

Citation:

Cite this paper

Online since:

September 2014

Authors:

Da Zhi Zhang*, Ling Qi Meng

Keywords:

Finite Element Analysis (FEA), Horizontal Vibration, Main Drive System, Six-Roller Aluminum Cold Rolling Mill

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Zou Jiaxiang. Metallurgical Machinery Design Theory [M]. Beijing: Metallurgical Industry Press, (1998).

Google Scholar

[2] Yan Xiao Qiang, Shi Chan, Cao Xi, Liu Lina. CSP mill with vertical vibration coupling torsional vibration study [J]. Vibration testing and diagnosis, 2008, 28 (4) : 377-381.

Google Scholar

[3] Xu Ping, Gregory, Sun Dongming, Dong people. ANSYS software, the torque applied research methods [J]. Electromechanical product development and innovation, 2006, 19 (6) : 172-173.

Google Scholar

[4] Chu Zilin, Wu Fenglin. Notch filter and simulation speed actual value signal transmission study [J]. Electric Drive, 2008, 38 (8) : 14-16.

Google Scholar

[5] Alexander G. Beckford, Benjamin A. Mancuso. Restraining Torsional Vibration. Power, 2010, 154(3).

Google Scholar

[6] Wang Wujun, Pan Junmin, Huang Zhigang. Application of speed loop optimization in the inhibition of electromechanical resonance [J]. Application of automation, 2010(3): 14-16.

Google Scholar

[7] Yang Xu, Li Jiangyun, Tong Chaonan. Vibration test and control strategy of cold rolling mill drive system[J]. Vibration, test and diagnosis, 2013, 33(1): 99-105.

Google Scholar
