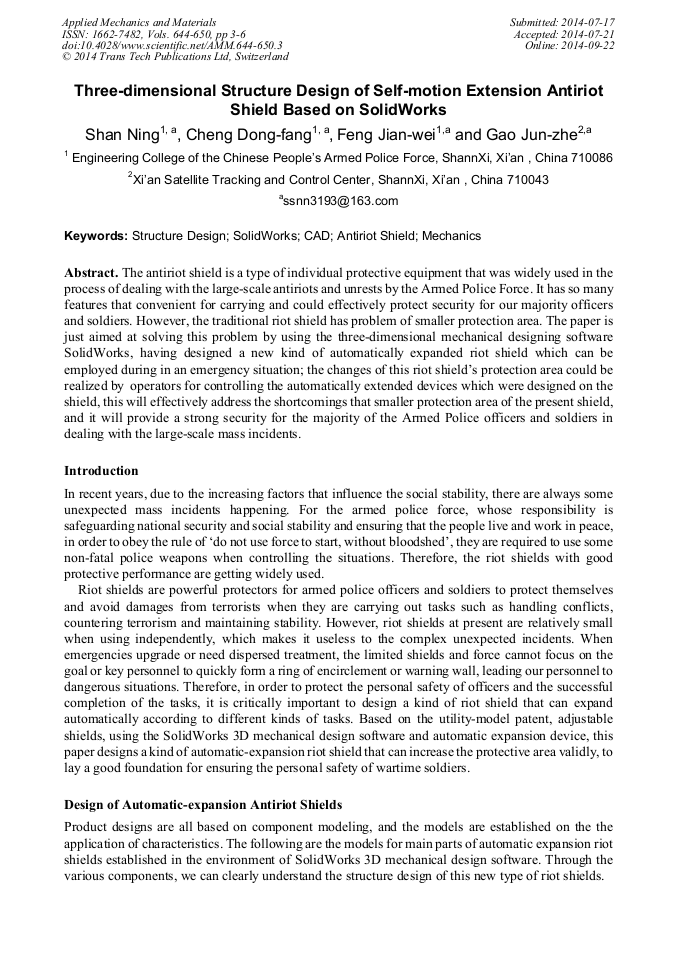

Three-Dimensional Structure Design of Self-Motion Extension Antiriot Shield Based on SolidWorks

Abstract:

The antiriot shield is a type of individual protective equipment that was widely used in the process of dealing with the large-scale antiriots and unrests by the Armed Police Force. It has so many features that convenient for carrying and could effectively protect security for our majority officers and soldiers. However, the traditional riot shield has problem of smaller protection area. The paper is just aimed at solving this problem by using the three-dimensional mechanical designing software SolidWorks, having designed a new kind of automatically expanded riot shield which can be employed during in an emergency situation; the changes of this riot shield’s protection area could be realized by operators for controlling the automatically extended devices which were designed on the shield, this will effectively address the shortcomings that smaller protection area of the present shield, and it will provide a strong security for the majority of the Armed Police officers and soldiers in dealing with the large-scale mass incidents.

• Periodical: Applied Mechanics and Materials (Volumes 644-650)
• Pages: 3-6
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.644-650.3
• Online since: September 2014
• Authors: Ning Shan*, Dong Fang Cheng, Jian Wei Feng, Jun Zhe Gao
• Keywords: Antiriot Shield, CAD, Mechanics, SolidWorks, Structure Design

References

[1] Gan Shengwen, Fu Weigong, Hu Tiezhu, Zheng Zhuxian, Wang Baisong. The adjustable shield [P]. Utility model patent, 2013. 4.

[2] Zhan Diwei. SolidWorks quick start tutorial [M]. Beijing: Mechanical Industry Press, 2010. 1.

[3] Jiang Kui. SolidWorks 2008 Based tutorial and examples of [M]. Ocean University of China press, 2008. 7.

[4] Cui Fengkui, ect, SolidWorks Mechanical design [M]. Beijing: Mechanical Industry Press, 2007. 2.

[5] Cao Yan, Chi Ningjun. SolidWorks 2007 Product design example [M]. Beijing: Chemical Industry Press, 2008. 1.

[6] Zhu Jinquan. The application and research of SolidWorks software in mechanical design [J]. New technology and techniques. Digital technology and machinery processing equipment, 2009, second.
