Design of a Second-Order Sigma-Delta Modulator

Abstract:

A second-order single bit Sigma - Delta modulator which can be applied to pressure sensor is designed in this paper.The modulator uses switched-capacitor circuit,and the operational amplifier adopts a differential folded-cascode structure with PMOS tube as input. Optimizes the coefficients at the system level design using Simulink tool. The schematic simulation and analysis is by the tools of Spectre and MATLAB with Global Foundry 0.35um CMOS technology. The modulator with oversampling rate of 256 is designed at the 3.3V power supply. Finally, this paper shows the circuit simulation results of the sigma-delta modulator whose signal-noise rate is 103.9dB and resolution is 16.97bits.

You might also be interested in these eBooks

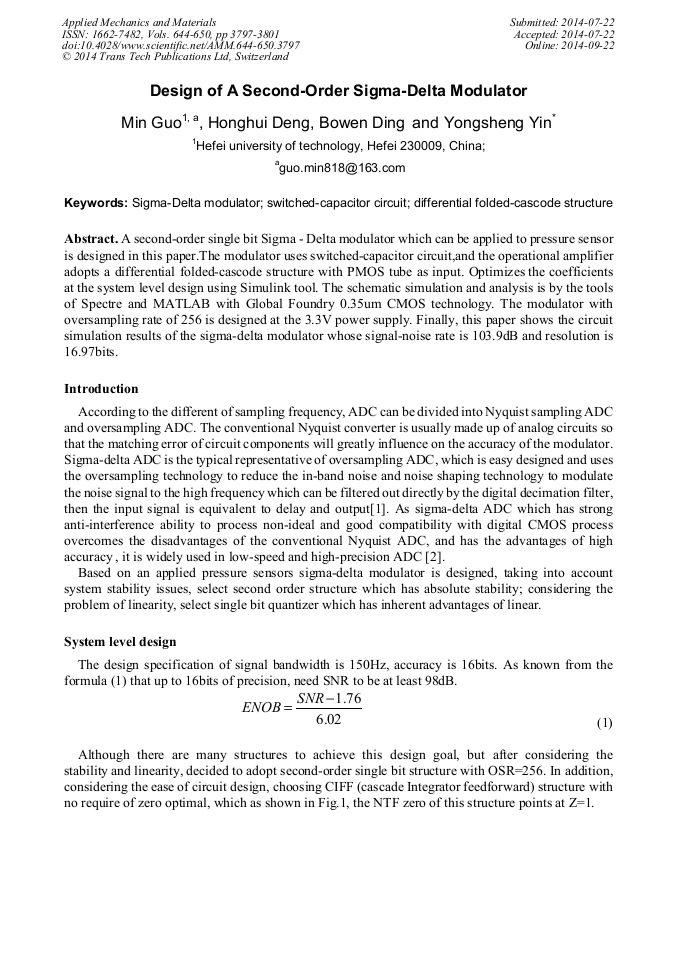

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 644-650)

Pages:

3797-3801

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.644-650.3797

Citation:

Cite this paper

Online since:

September 2014

Authors:

Min Guo, Hong Hui Deng, Bo Wen Ding, Yong Sheng Yin*

Keywords:

Differential Folded-Cascode Structure, Sigma-Delta Modulator, Switched-Capacitor Circuit

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] JIANG Xiangyang. Research and design of a Sigma-Delta Modulator. 2014, 2~3.

Google Scholar

[2] LI Wei，LI Kaihang, Wang Liang. Design of 16-Bit Third Order Cascade Sigma-Delta Modulator, Integrated Circuit Design. (2009).

Google Scholar

[3] LI Liang，CHEN Zhenhai. Design of Second-Order Sigma-Delta Modulator for Digital Audio, Microelectronics and Computer. (2010).

Google Scholar

[4] GUO Xiaolu. Design of Sigma-delta Modulator for Audio System. 2010, 22~23.

Google Scholar

[5] YANG Peng, WANG Bin, WU Ying. Simulation of Σ-Δ Modulator in Non-idealities Environment. Modern Electronic Technique. 2005, 10: 105~108.

Google Scholar

[6] R. d. Rio, F. Mederio,B. Perez Verdu, et al. CMOS Cascade Sigma-delta Modulator for Sensors and Telecom. Science. 2007, 1~84.

Google Scholar

[7] GONG Fei, WU Xiao-bo. Operational Amplifier Applied to Low Power Low Voltage Sigma-Delta Data Converter. Journal of Jiangnan University(Natural Science Edition). 2008, 7(3): 276~280.

Google Scholar
