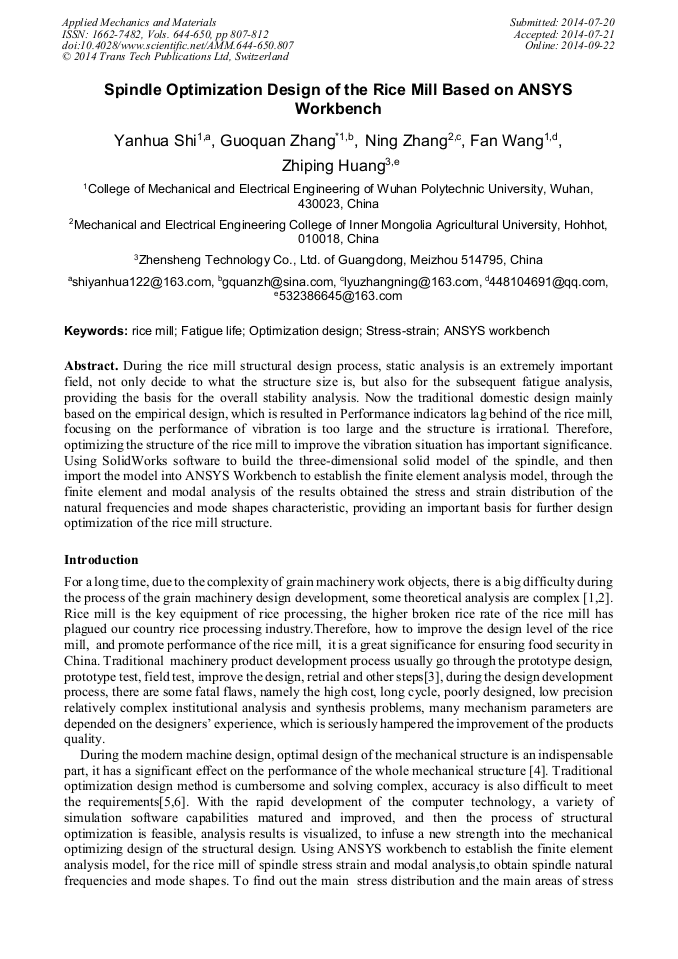

Spindle Optimization Design of the Rice Mill Based on ANSYS Workbench

Abstract:

During the rice mill structural design process, static analysis is an extremely important field, not only decide to what the structure size is, but also for the subsequent fatigue analysis, providing the basis for the overall stability analysis. Now the traditional domestic design mainly based on the empirical design, which is resulted in Performance indicators lag behind of the rice mill, focusing on the performance of vibration is too large and the structure is irrational. Therefore, optimizing the structure of the rice mill to improve the vibration situation has important significance. Using SolidWorks software to build the three-dimensional solid model of the spindle, and then import the model into ANSYS Workbench to establish the finite element analysis model, through the finite element and modal analysis of the results obtained the stress and strain distribution of the natural frequencies and mode shapes characteristic, providing an important basis for further design optimization of the rice mill structure.

• Periodical: Applied Mechanics and Materials (Volumes 644-650)
• Pages: 807-812
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.644-650.807
• Online since: September 2014
• Authors: Yan Hua Shi, Guo Quan Zhang*, Ning Zhang, Fan Wang, Zhi Ping Huang
• Keywords: ANSYS Workbench , Fatigue Life, Optimization Design, Rice Mill, Stress-Strain

References

[1] Wang Rui, Chen Haixia. ANSYS finite element mesh analysis [J]. Tianjin Polytechnic University, 2002, 21(4): 8-11. In Chinese.

[2] Tao, Zuo Zheng Xing, Liao Ridong. structural simulation precision finite element mesh method [J]. Mechanical Engineering, 2009, 45 (6) : 304-308. In Chinese.

[3] PU Guangyi. ANSYS Workbench 12 based tutorials and examples [J]. Beijing: China Water ＆Power Press, 2010. In Chinese.

[4] Zhang Gongxue, Tian Yang. Variable speed bicycle frame finite element analysis based on ANSYS Workbench [J]. ITS Applications, 2009, 28 (6): 63-65. In Chinese.

[5] Zu Xu, Huang Hongzhong, Zhang Xu. Virtual Prototype Technology and Its Development [J]. Agricultural Machinery, 2004, 35 (2): 168-171. In Chinese.

[6] Wang Yanxiao, Xu Liang, Mei Yi. Mountainous small corn planter rack modal finite element analysis [J]. Agricultural Mechanization Research, 2013, 06: 70 -72 +116. In Chinese.

[7] Qian Jun Mei, Jiang Xiaohong, Zhong Xiaodong, Fan Jun, Discussion on contact analysis based on ANSYS software problems [J]. Mining machinery, 2006, 7: 69-72. In Chinese.

[8] Wu Zhen, Wang Ying. The Whole Hydraulic Support finite element analysis based on ANSYS Workbench [J]. Mining machinery, 2009, 30 (9): 106-107. In Chinese.

[9] Zhu Zan Bin, Li Shusen, Zeng Jianfeng, et al. Digging machine drills to improve the design and modal analysis [J]. Agricultural Mechanization Research, 2012, 02: 50-54. In Chinese.

[10] Wang Yougang, Wang Pengcheng. The development of parametric modeling technology for truck frame[J]. Agricultural Equipment Vehicle Engineering, 2010(4): 13-15. In Chinese.

[11] Xie Zhijiang, Sun Yu, Li Cheng, et al. The handling robot structural optimization design based on ANSYS Workbench [J]. Machinery & Electronics, 2010 (1): 65-67. In Chinese.

[12] Lu Lin, Li Yaoming. Virtual Prototyping Technology in Agricultural Machinery Design [J]. Chinese Agricultural Mechanization, 2004 (4): 59-61. In Chinese.
