The Simulation Research of Dynamic Flow Based on the Bypass Method

Abstract:

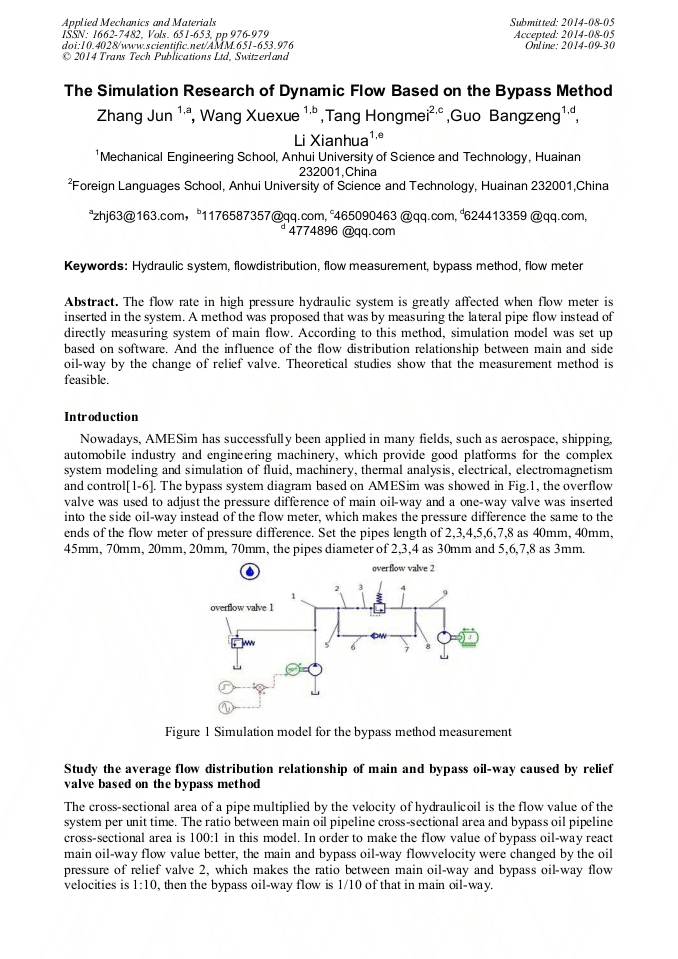

The flow rate in high pressure hydraulic system is greatly affected when flow meter is inserted in the system. A method was proposed that was by measuring the lateral pipe flow instead of directly measuring system of main flow. According to this method, simulation model was set up based on software. And the influence of the flow distribution relationship between main and side oil-way by the change of relief valve. Theoretical studies show that the measurement method is feasible.
