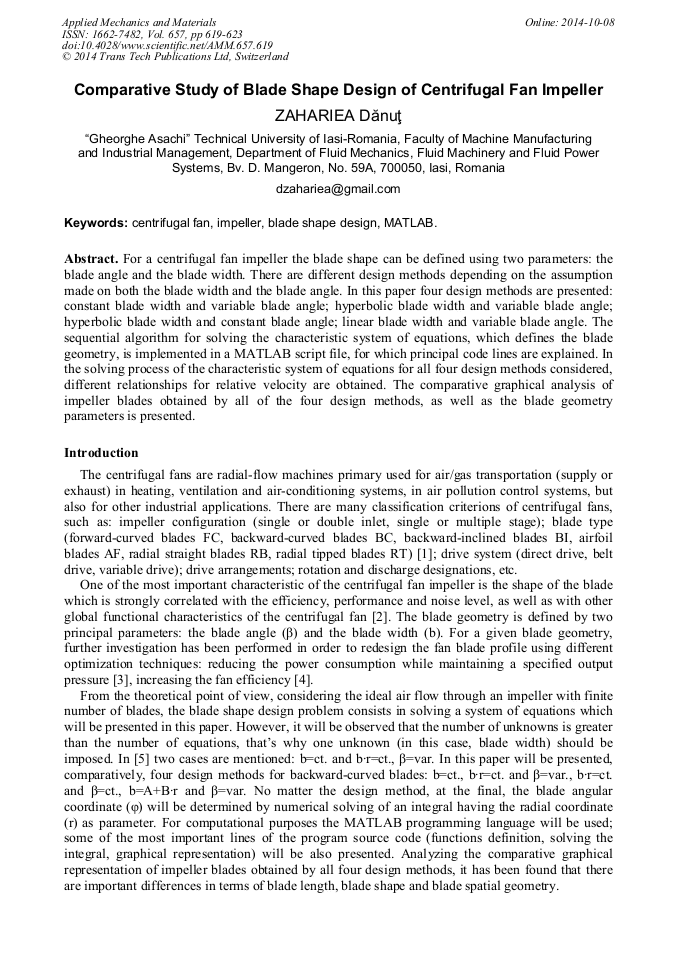

Comparative Study of Blade Shape Design of Centrifugal Fan Impeller

Abstract:

For a centrifugal fan impeller the blade shape can be defined using two parameters: the blade angle and the blade width. There are different design methods depending on the assumption made on both the blade width and the blade angle. In this paper four design methods are presented: constant blade width and variable blade angle; hyperbolic blade width and variable blade angle; hyperbolic blade width and constant blade angle; linear blade width and variable blade angle. The sequential algorithm for solving the characteristic system of equations, which defines the blade geometry, is implemented in a MATLAB script file, for which principal code lines are explained. In the solving process of the characteristic system of equations for all four design methods considered, different relationships for relative velocity are obtained. The comparative graphical analysis of impeller blades obtained by all of the four design methods, as well as the blade geometry parameters is presented.

• Periodical: Applied Mechanics and Materials (Volume 657)
• Pages: 619-623
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.657.619
• Online since: October 2014
• Authors: Dănuţ Zahariea
• Keywords: Blade Shape Design, Centrifugal Fan, Impeller, MATLAB

References

[1] A.C. Pranav, R.R.T. Karuppa, Numerical Design and Parametric Optimization of Centrifugal Fans with Airfoil Blade Impellers, Research Journal of Recent Sciences, Vol. 1(10), (2012), 7-11.

[2] T. Adachi, N. Sugita, Y. Yamada, Study of the Performance of a Sirocco Fan (Optimum Design of Blade Shape), International Journal of Rotating Machinery, 7 (6), (2001), 405-414.

DOI: 10.1155/s1023621x01000355

[3] R. Shalini, C. Prabha, Centrifugal Fan Impeller Design with Optimization of Blade, International Journal of Applied Engineering Research, Vol. 7 (11), (2012).

[4] M. Fannian, D. Quanlin, W Yan, W. Pengfei, Z. Chunxi, Numerical Optimization of Impeller for Backward-Curved Centrifugal Fan by Response Surface Methodology (RSM), Research Journal of Applied Sciences, Engineering and Technology, 6 (13), (2013).

DOI: 10.19026/rjaset.6.3719

[5] B. Eckert, E. Schnell, Axial- und Radialkompressoren, Zweite Auflage, Springer-Verlag, Berlin, (1980).

[6] Mathworks, MATLAB R2013b Documentation, 2014, available at: http: /www. mathworks. com/help/matlab/ref/quad. html, accessed: 27. 02. (2014).
